Hitachi LP-WU6600 - Computer Input Specific Adjustments

OSD description
56
Computer
Press ENTER / ► to enter the Computer menu.
• Horizontal Position
Press ◄► to adjust the projected picture’s horizontal position.
If the projected picture is not at the center of the screen (i.e. shifted to right or left) and ends up

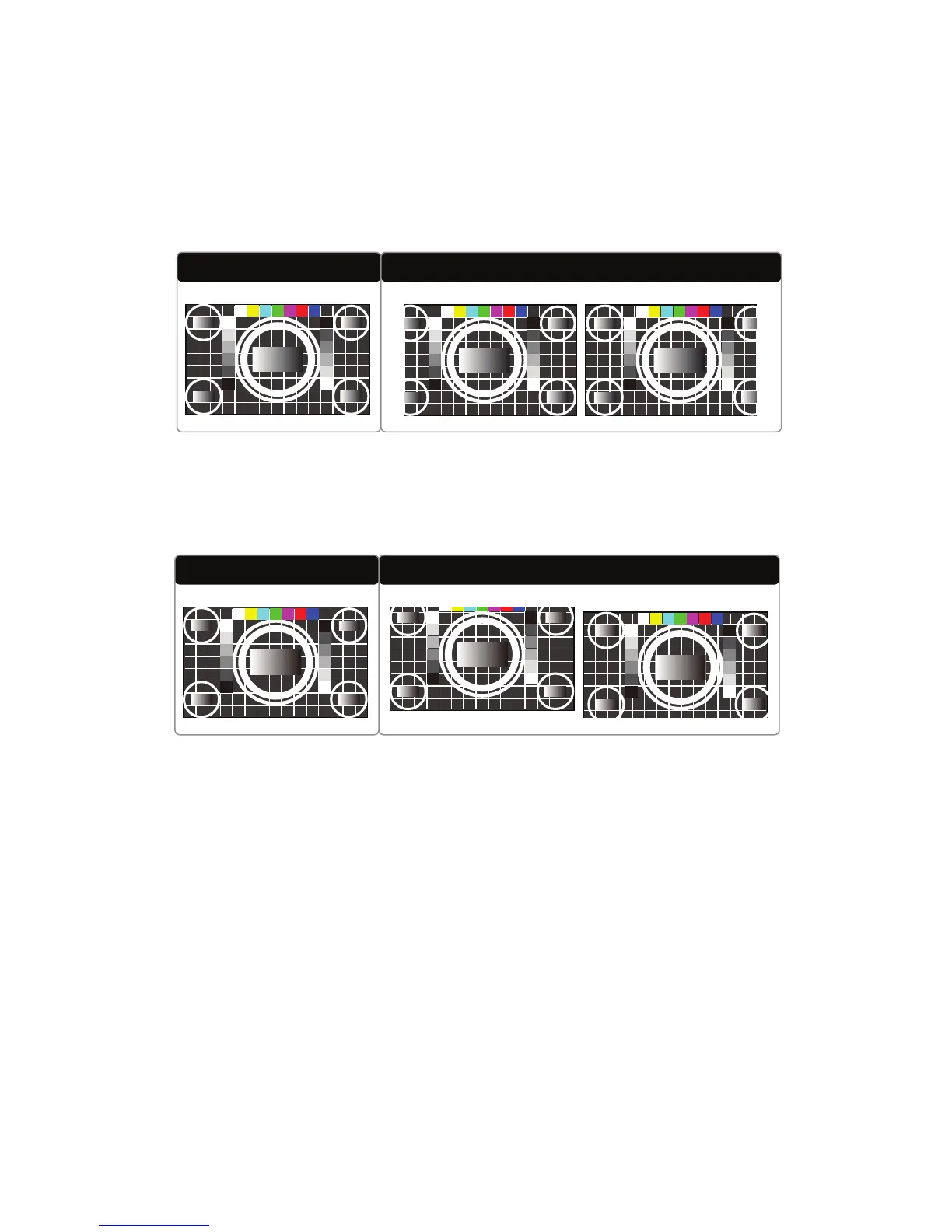

being cropped, use this function to adjust the picture’s horizontal position. The following picture is
an example of test picture from an external signal source:
Native picture Skewed
RightLeft
• Vertical Position
Press ◄► to adjust the projected picture’s vertical position.
If the projected picture is not at the center of the screen (i.e. shifted up or down) and ends up being
cropped, use this function to adjust the picture’s vertical position. The following picture is an
example of test picture from an external signal source:
Native picture Skewed
DownUp
It is recommended that when adjusting the picture, the horizontal total should be adjusted before
the horizontal phase. However, if the picture still ickers even after you have adjusted both, try
lowering the picture noise.
• H Phase
Press ◄► to adjust the projected picture’s phase.
Use this function to adjust the phase of pixel sampling clock (relative to input signal). Should the
picture still icker or show noise (i.e. edges on texts) after optimization, adjust phase accordingly.
• Tracking
Press ◄► to enter and adjust the A/D sampling dot.
