Hitachi P1

Page 14
 / OVER-WEIGHT BYPASS
-weight signal.
To bypass the over-weight signal, locate the bypass terminal knife disconnect it should be labeled “BPS” (use images below as
reference) and pull the yellow/orange tab to open.
IMPORTANT - Be sure to close the over-weight bypass terminal knife disconnect “BPS” after the load test is complete, failure to do so
may result in damage to the hoist in the case of an overload.
NOTE – 
load is suspended or the VFD may fault.

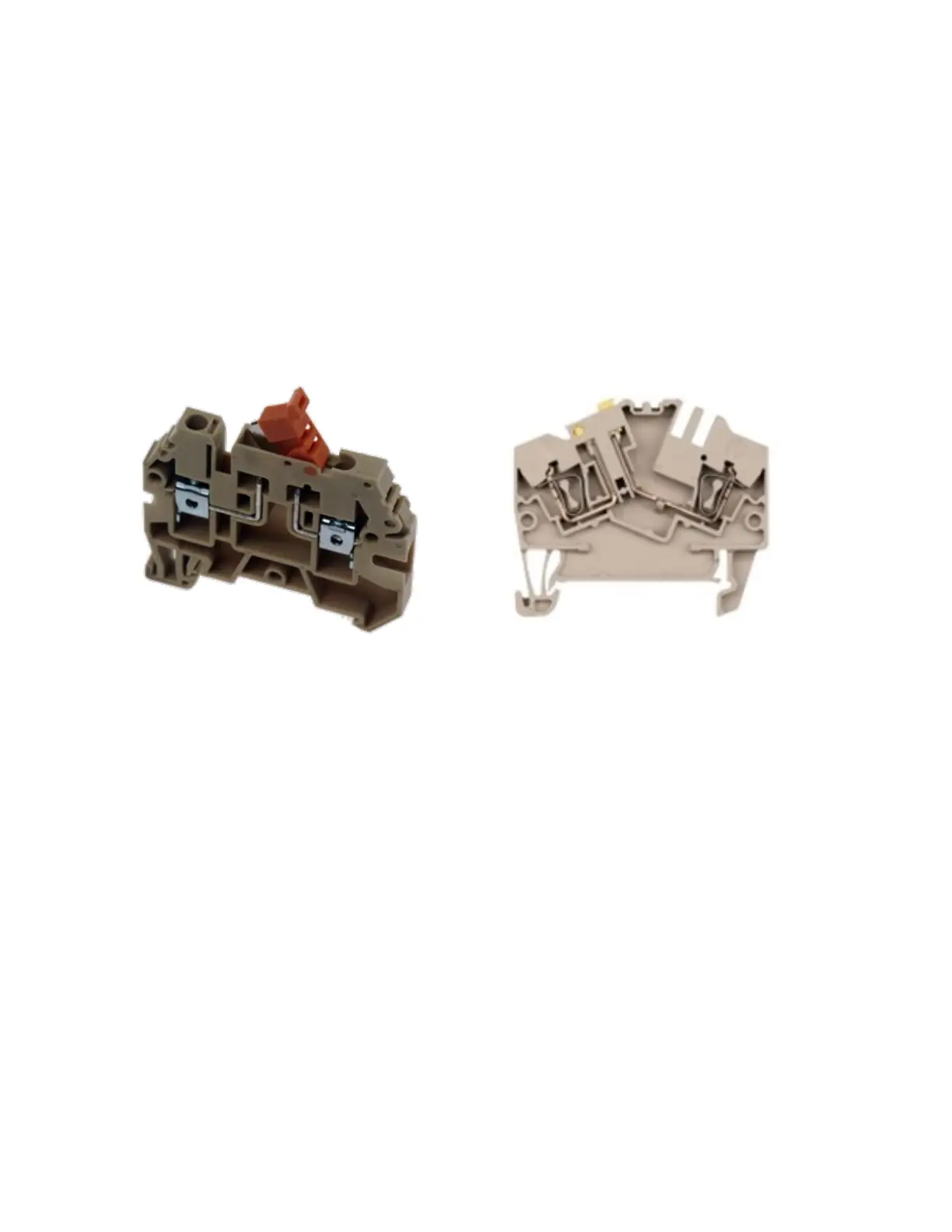

Over-Weight Bypass Knife Disconnect
