a
b

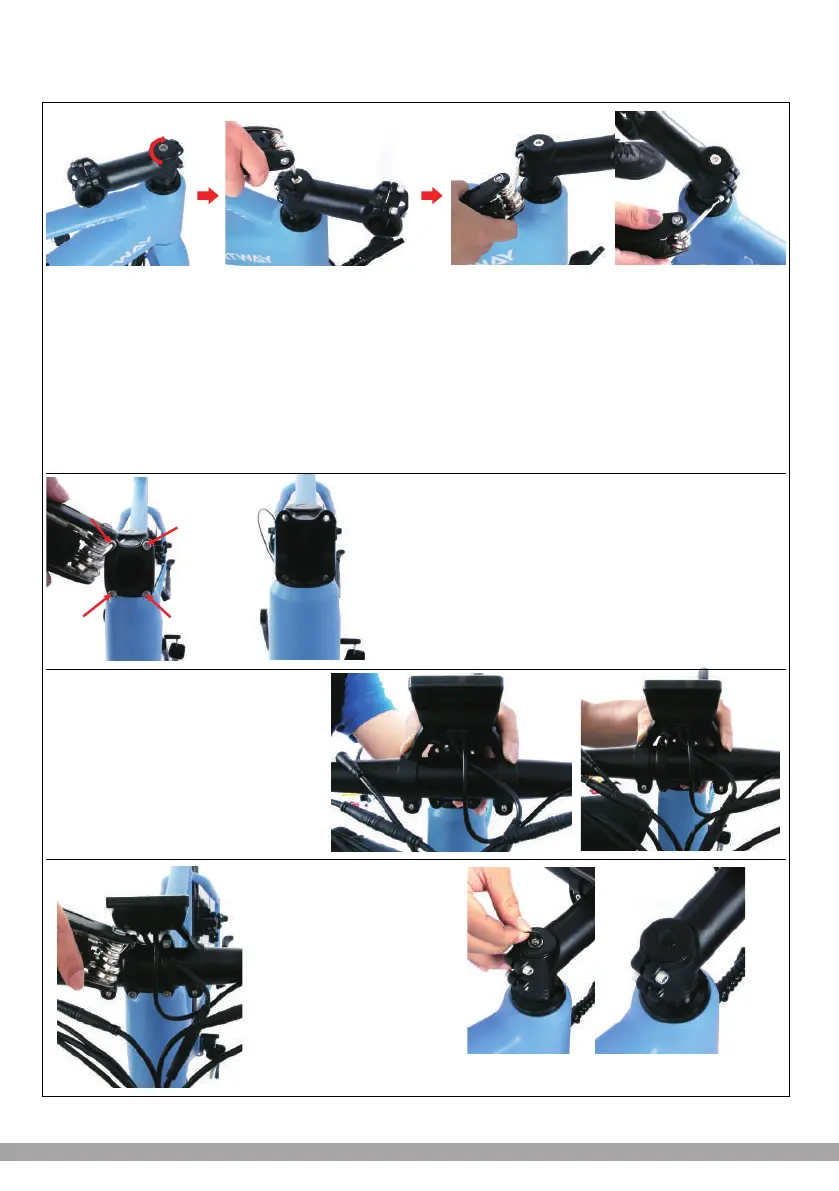

3. Tighten the screws at "a" and "b" in the
diagram with the hexagonal spanner No. 4 of
the 16-in-1 tool.
Note: Tighten the two screws gradually, do not
tighten one first and then the other.
1. Rotate the riser
towards the front of the
bike and adjust the
riser to be parallel and
perpendicular to the
front fork and frame.
2. Tighten the top cover
screw with the hexagonal
spanner No. 5 in the 16-in-1
tool.
1. Handlebar mounting
4. Remove the 4 front cover screws and remove the
front cover of the riser using the #4 Allen key in the
16-in-1 tool.
5. Place the handlebar into the riser
and centre it to adjust the angle of
the handlebar.
Fasten the front cover.
Note: Do not tangle the wire
harness.
4
3
1
2
6. Use hexagonal spanner
No. 4 in the 16-in-1 tool.
Tighten the 4 front cover
screws gradually in the
order shown.
7. Fasten the top cover screw plug.
