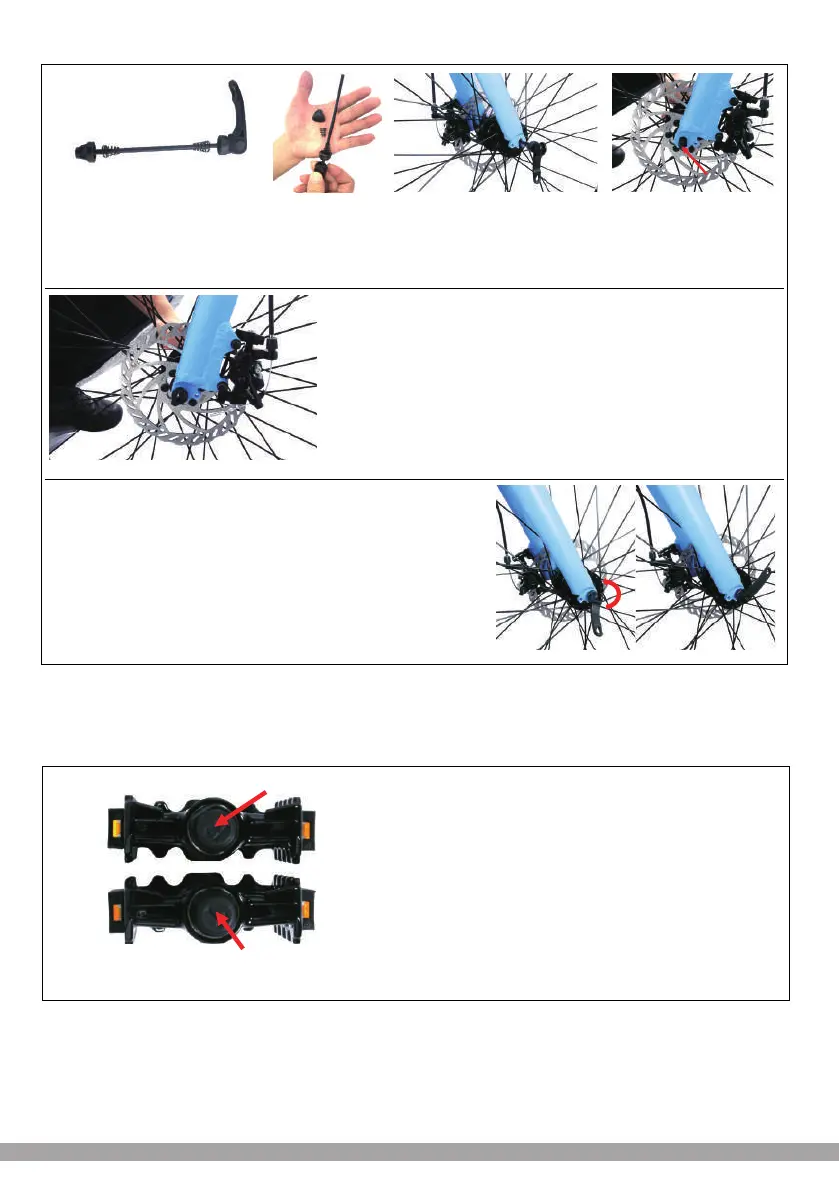

3. Unscrew the quick release lever nut and
remove 1 conical spring.
4. Insert the quick release
lever.
5. Fit the conical spring
as shown.
Right pedal
Left pedal
6. Screw on the quick release
lever nut as shown.
7. Adjust the direction of the trigger, adjust the appropriate
screw tightness and tighten the trigger upwards.
Note: Make sure that the front wheel is in the centre of the fork
tube during this process. If it is off, please loosen the lever to
adjust the front wheel position and then lock the lever.
The pedal shaft is marked "R" for the
right pedal and "L" for the left pedal.
Marked "L" for the left pedal.
4. Pedals Assembly
