Function introduction:
The motor provides you with power when you pedal. You can set the required speed level via the display.
The maximum assisted speed of an electric motor is 25 km/h.
Motor
The electric assist transmission requires a battery for energy support. The battery is located under the frame.
The battery can be charged by removing it from the frame using a suitable spanner.
Only use the supplied charger to charge the battery. The battery is equipped with the following connections
and indicators:
· Charging socket
· Switch button
· Lock for locking the battery
Battery

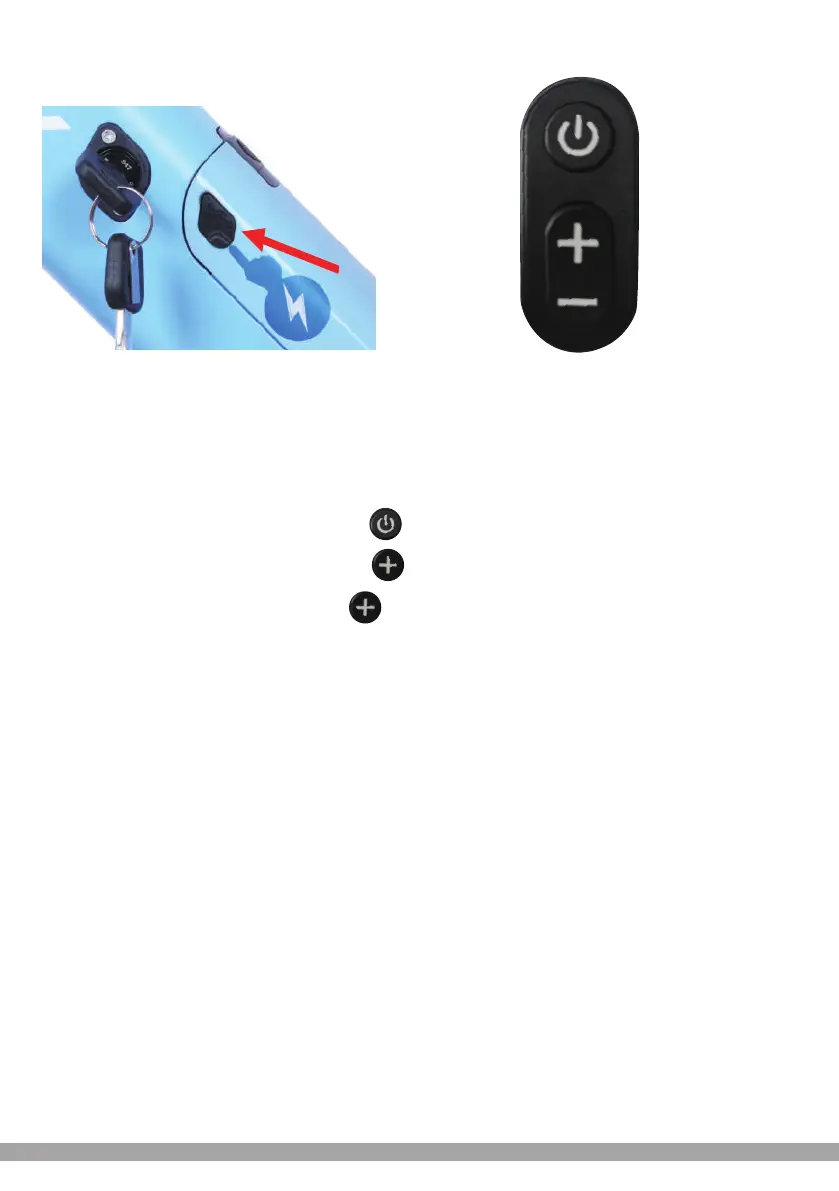

1. Charging: Unscrew the plastic cover on the battery (Picture 1), connect the charger to start charging,
when the battery is full and the indicator light of the charger changes from red to green, it means it is fully
charged.
2.Power on: refer to Picture 2, press and hold button to turn on/off .
3. Headlights: refer to Picture 2, long press the button to turn on/off the headlights.
4. Start: power-assisted riding, short press to adjust to 1st gear after power on, step on the bicycle
sprocket, start the motor to assist. If motor assistance is not required, turn off the power or turn off the
battery or set the gear to 0.
