106

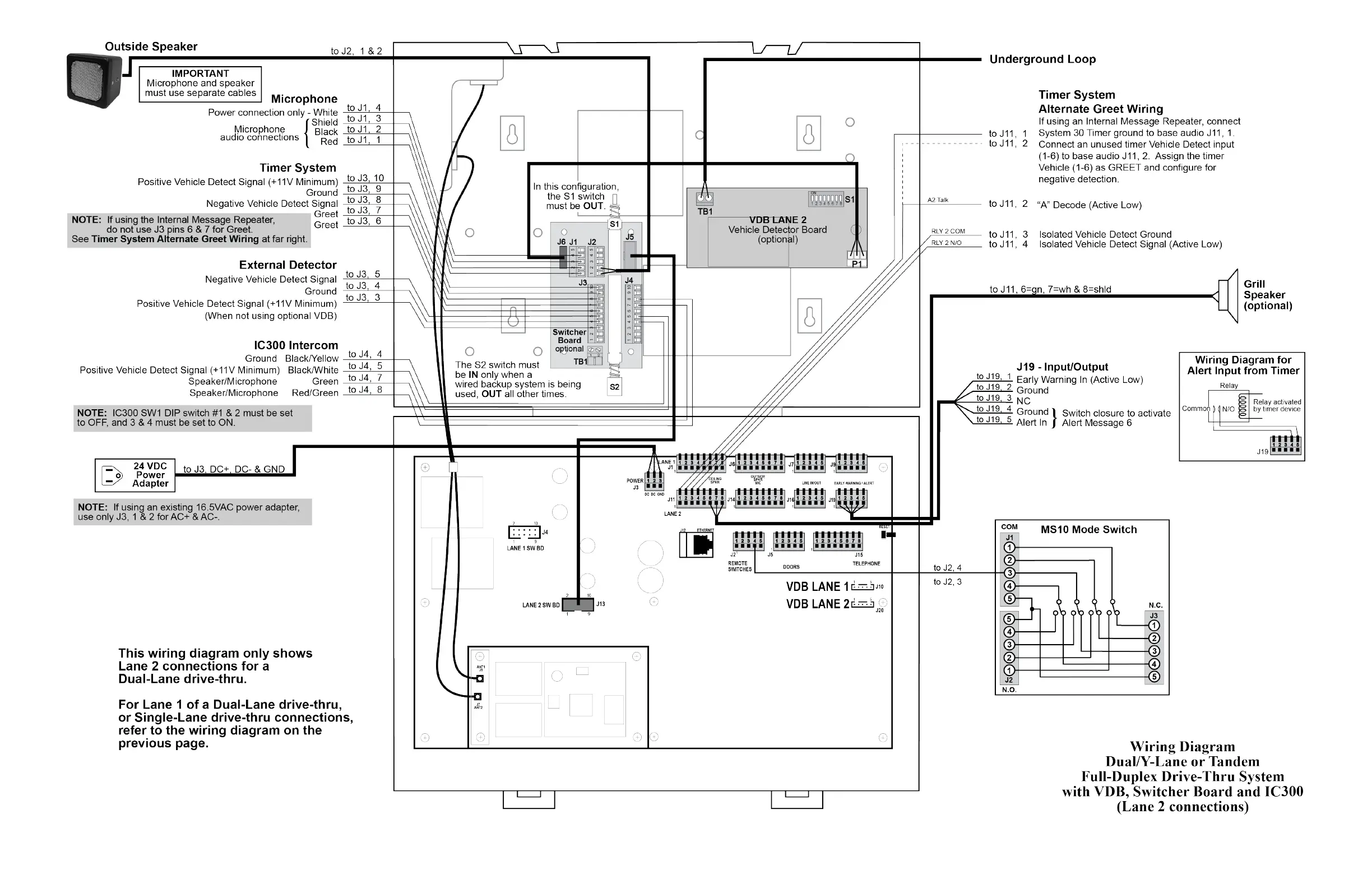

Figure 32. Full-Duplex Drive-Thru System with VDB, Switcher Board and IC300 (Lane 2 connections)
