EQUIPMENT INSTALLATION
23
4.4.2 Install SP10 Speaker
1. Strip approximately 1 inch (25.4 mm) of insulation from the end of the speaker cable, and ¼ inch
(6.35 mm) of insulation from each of the two cable wires, but do not tin the wires. Connect the
speaker cable wires to the connector plug as shown in Figure 22.
2. Insert the connector plug into the connector on the speaker as shown in Figure 22.
If not using the optional mounting brackets:
1. Remove the double-stick tape liner, and press the adhesive side of the gasket against the front of
the speaker in the position shown in Figure 22.
2. Position the speaker inside the speaker post or menu board, with the gasket centered against the
inside of the speaker grill as shown in Figure 23. The cable connector can be routed to either
side. Align the opening in the gasket with the grill opening.
3. Remove both inserts from the molded foam enclosure and place the foam enclosure around the
speaker. Trim foam with serrated knife if necessary. Place the removed foam inserts behind
speaker to provide pressure to speaker, to ensure a good gasket seal against the speaker grill
opening.

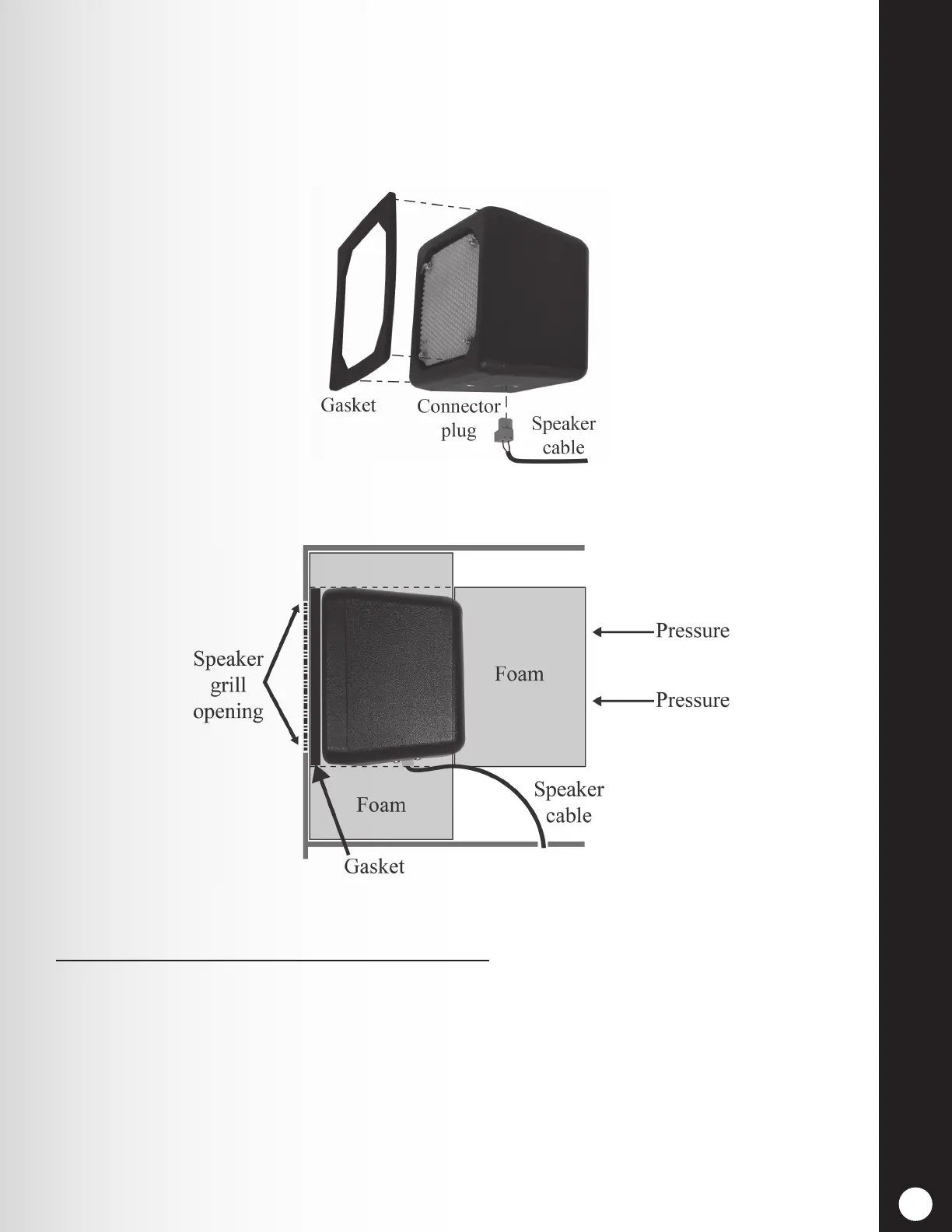

Figure 22. SP10 with gasket and cable connector plug
Figure 23. SP10 in speaker post, menu board or enclosure
