Wiring Examples 28
Doc: HMSI-168-92 Rev: 3.00Netbiter EasyConnect Gateway User Manual
Analog Input – Temperature Sensor
Digital Input

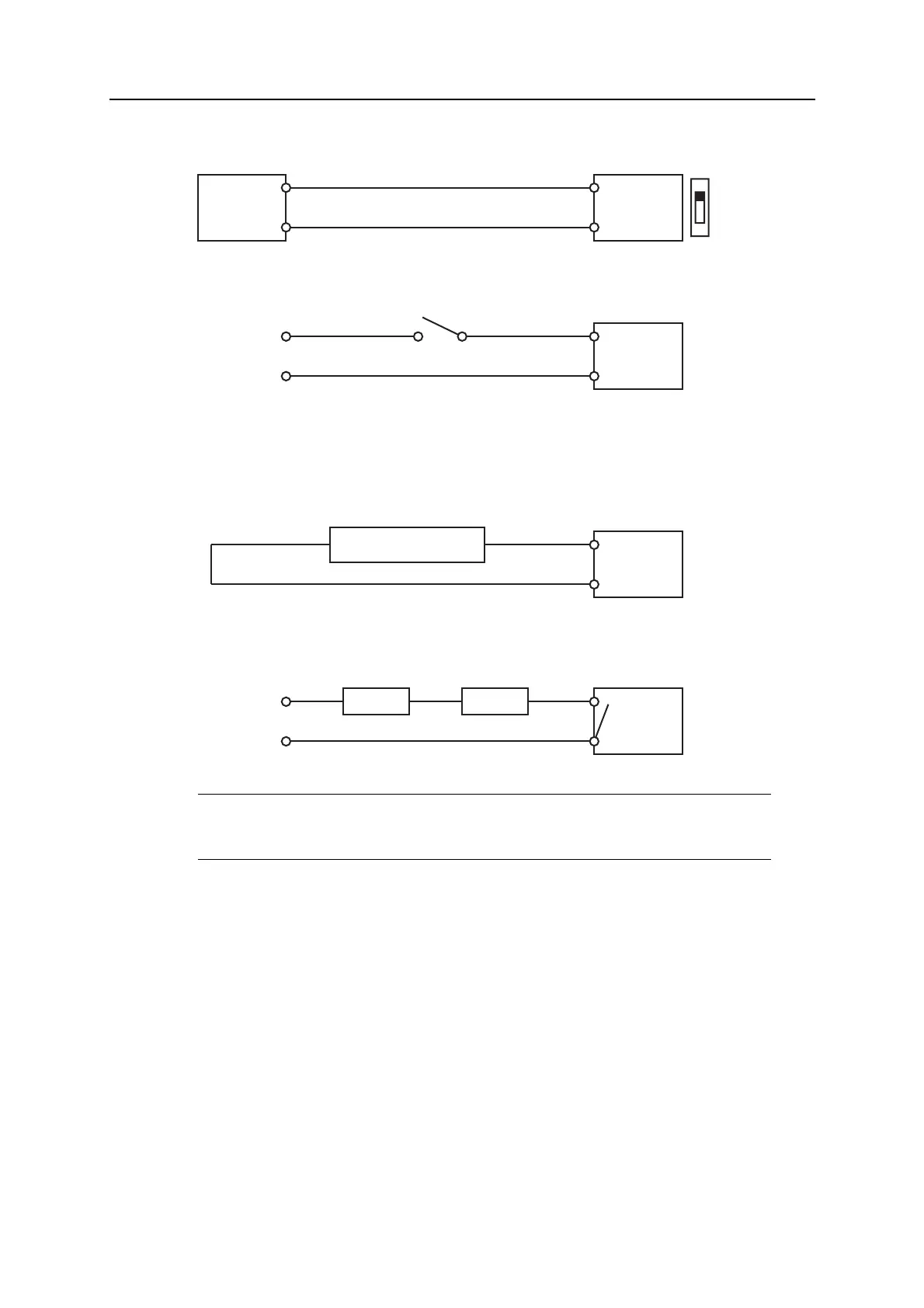

4.2.2 Output Wiring Examples
Analog output
Relay output
! Therelayoutputmustbesuppliedfromanisolatingtransformerusingasecondary
listedfuseratedatmaximum3.3Aandminimum30VDC.
AI:AI 1/2
EC220
AI:COM
PT100
PT100
0-20 mA
0-10 V
DI:DI 1/2
EC220
DI:COM
9–24 VDC
0 VDC
AO:OUT
EC220
AO:COM
Analog load 0–10 V
Max load resistance = 2 k:
Relay:NO
EC220
Relay:COM
24 V DC/AC
0 V
Load Fuse
