HMS Netbiter EasyConnect Series - Wiring Examples; Netbiter EC150;EC250; Netbiter EC220

Doc: HMSI-168-92 Rev: 3.00Netbiter EasyConnect Gateway User Manual
Wiring Examples 27

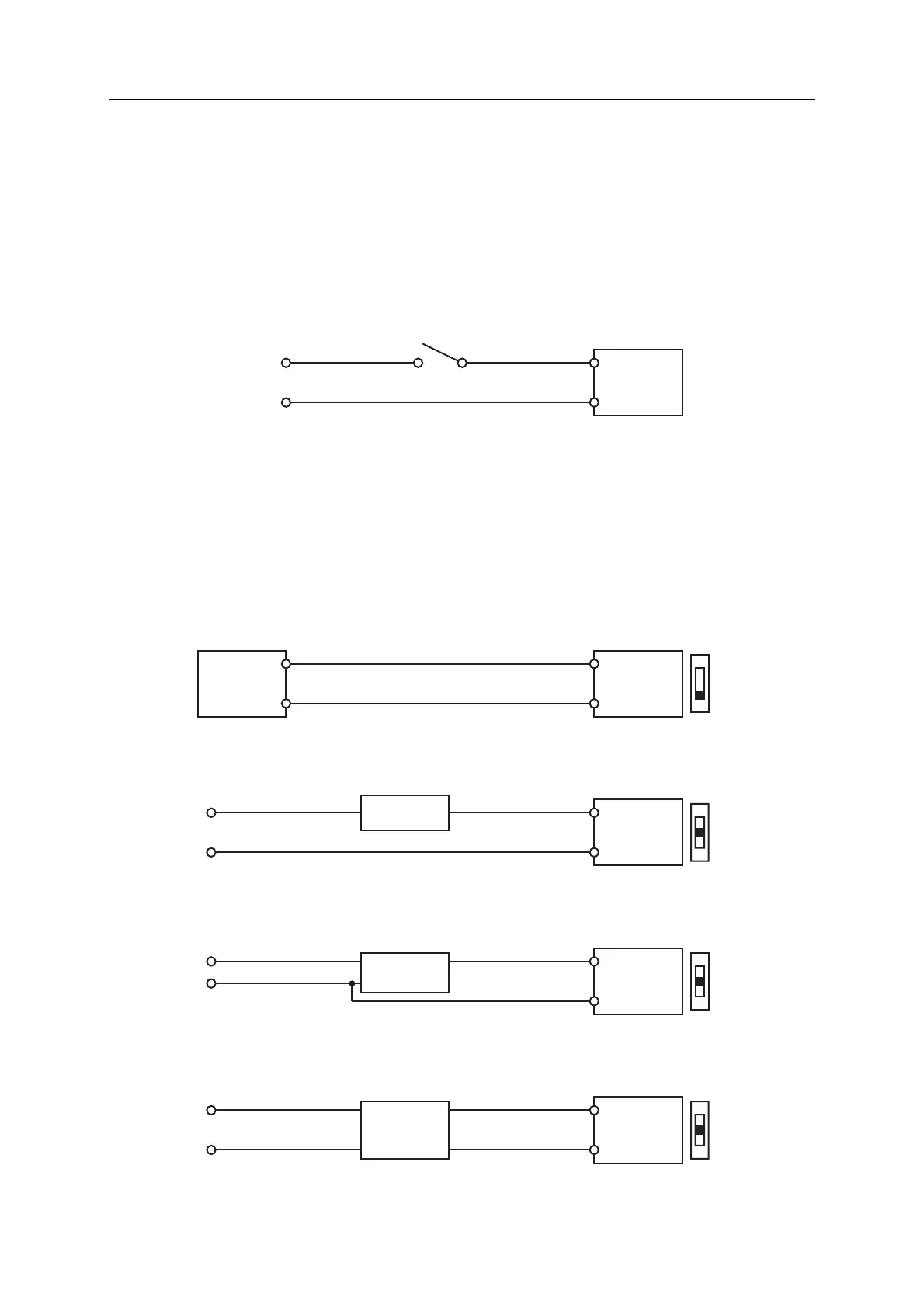

4. Wiring Examples
4.1 Netbiter EC150/EC250
4.1.1 Digital Input Wiring Example
Digital Input
4.2 Netbiter EC220
4.2.1 Input Wiring Examples
Seealso“AnalogInputConfigurationSwitches”onpage8.
Analog Input – Voltage Sensor
Analog Input – 2-wire Current Sensor
Analog Input – 3-wire Current Sensor
Analog Input – 4-wire Current Sensor
DI:DI 1/2
EC150
DI:COM
9–24 VDC
0 VDC
AI:AI 1/2
EC220
AI:COM
0–10 VDC
+
-
PT100
0-20 mA
0-10 V
+
-
AI:AI 1/20–20 mA
EC220
AI:COM
PT100
0-20 mA
0-10 V
+
-
AI:AI 1/2
0–20 mA
EC220
AI:COM
OUT
PT100
0-20 mA
0-10 V
+
-
AI:AI 1/2
0–20 mA
OUT
GND
EC220
AI:COM
PT100
0-20 mA
0-10 V
