HMS Netbiter EasyConnect Series - Netbiter EC310; EC350

Wiring Examples 29
Doc: HMSI-168-92 Rev: 3.00Netbiter EasyConnect Gateway User Manual
4.3 Netbiter EC310 / EC350

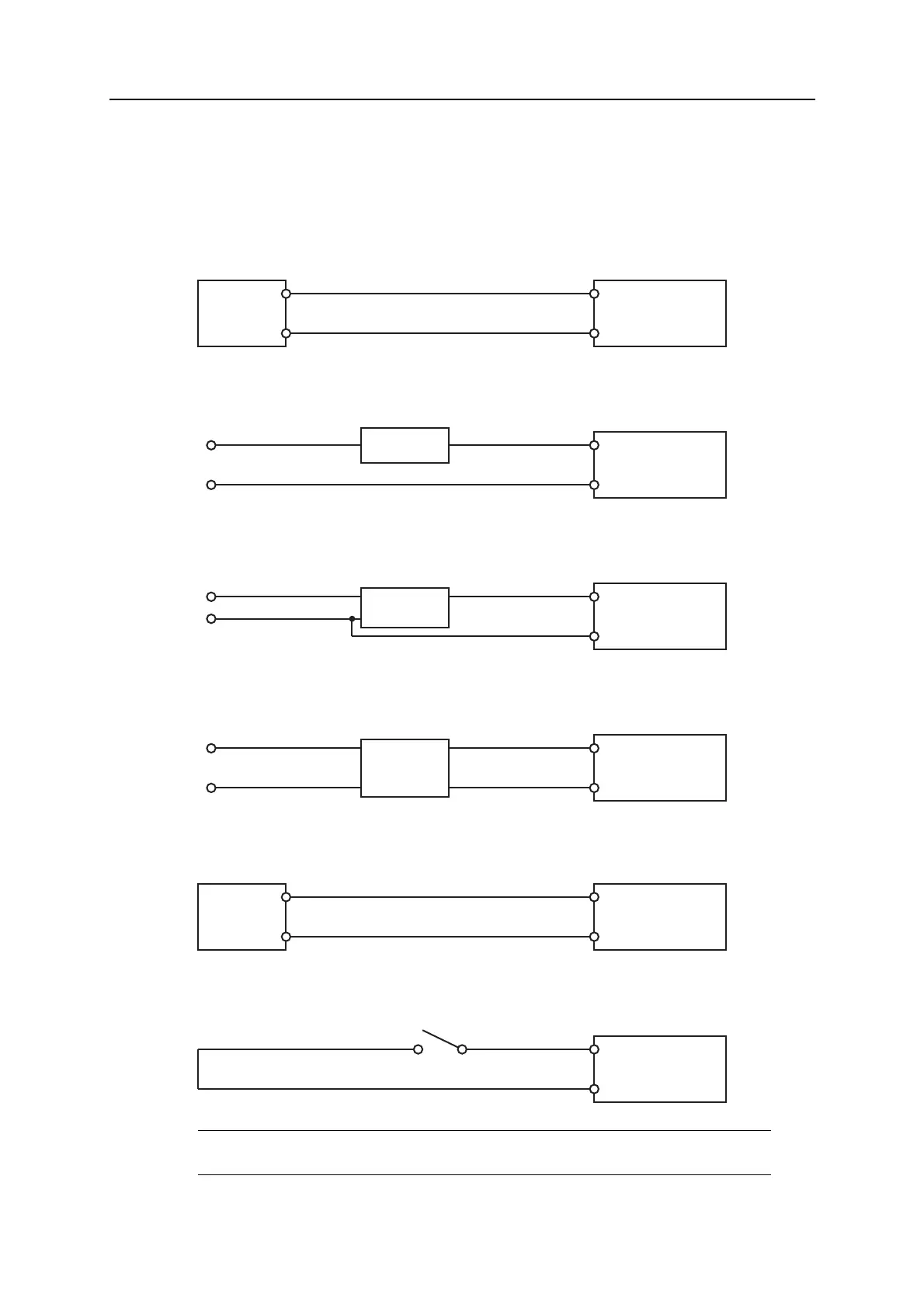

4.3.1 Input Wiring Examples
Analog Input – Voltage Sensor
Analog Input – 2-wire Current Sensor
Analog Input – 3-wire Current Sensor
Analog Input – 4-wire Current Sensor
Analog Input – Temperature Sensor
Digital Input
! Donotconnectapowersourcetothedigitalinputs,asthismaydamagetheunit.
Analog In:AI1 (AI2/3/4)
EC310 / EC350
Analog In:COM
0–10 VDC
+
-
+
-
Analog In:AI1 (AI2/3/4)
Analog In:COM
EC310 / EC350
0–20 mA
+
-
0–20 mA
OUT
Analog In:AI1 (AI2/3/4)
Analog In:COM
EC310 / EC350
Analog In:AI1 (AI2/3/4)
Analog In:COM
EC310 / EC350
+
-
0–20 mA
OUT
GND
Analog In:AI1 (AI3)
Analog In:COM
PT100
EC310 / EC350
DI/Pulse In:DI1+ (DI2+)
DI/Pulse In:DI1- (DI2-)
EC310 / EC350
