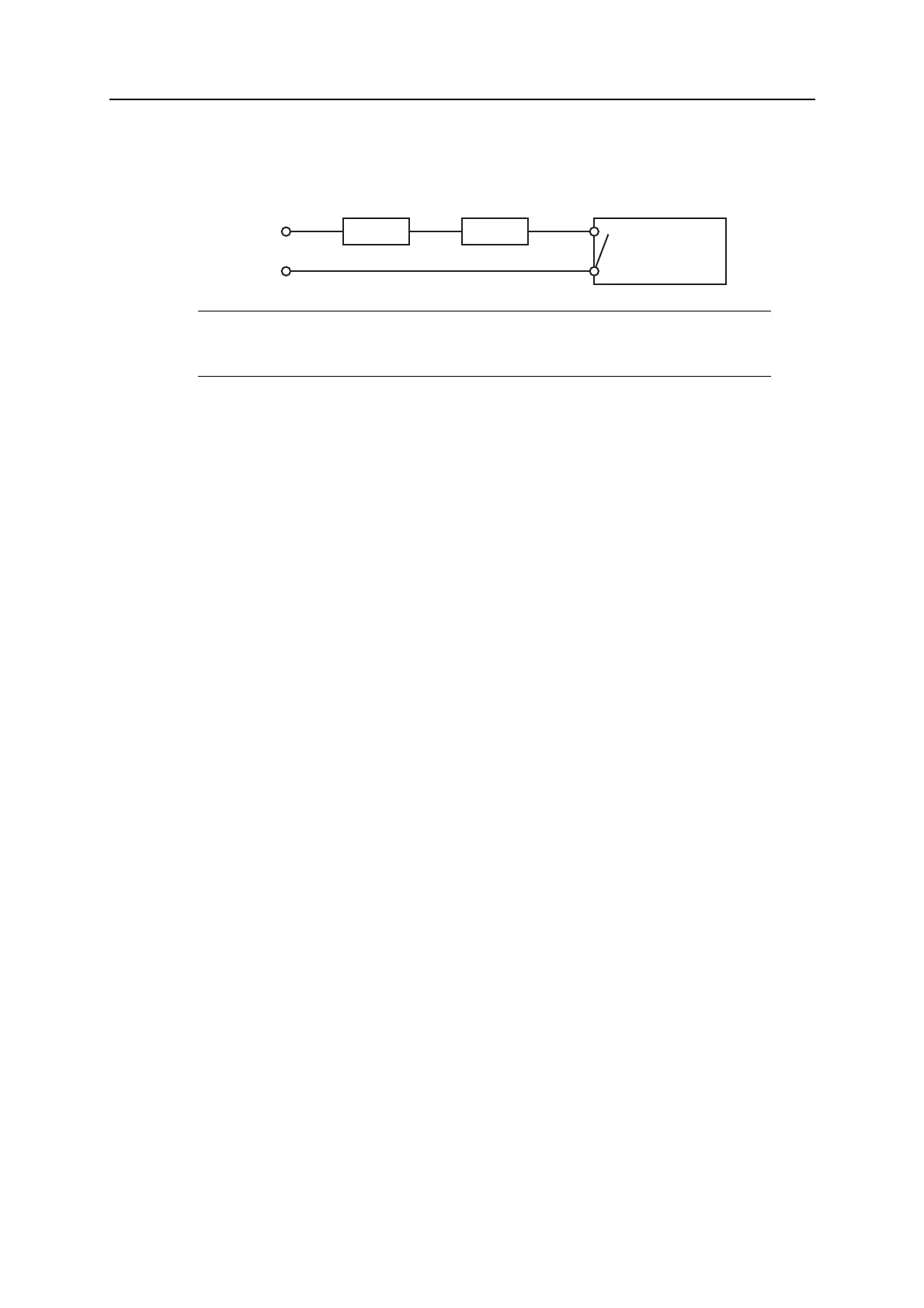

4.3.2 Output Wiring Example
Relay Output
! Therelayoutputmustbesuppliedfromanisolatingtransformerusingasecondary
listedfuseratedatmaximum3.3Aandminimum30VDC.
Relay:NO
Relay:COM
24 V DC/AC
0 V
Load Fuse
EC310 / EC350
