Holtek BS66F340 - 44-Pin LQFP (10 Mm×10 Mm) (Fp2.0 Mm) Outline Dimensions

Rev. 1.60 238 August 20, 2019 Rev. 1.60 239 August 20, 2019
BS66F340/BS66F350/BS66F360/BS66F370
Touch A/D Flash MCU with LED Driver
BS66F340/BS66F350/BS66F360/BS66F370
Touch A/D Flash MCU with LED Driver

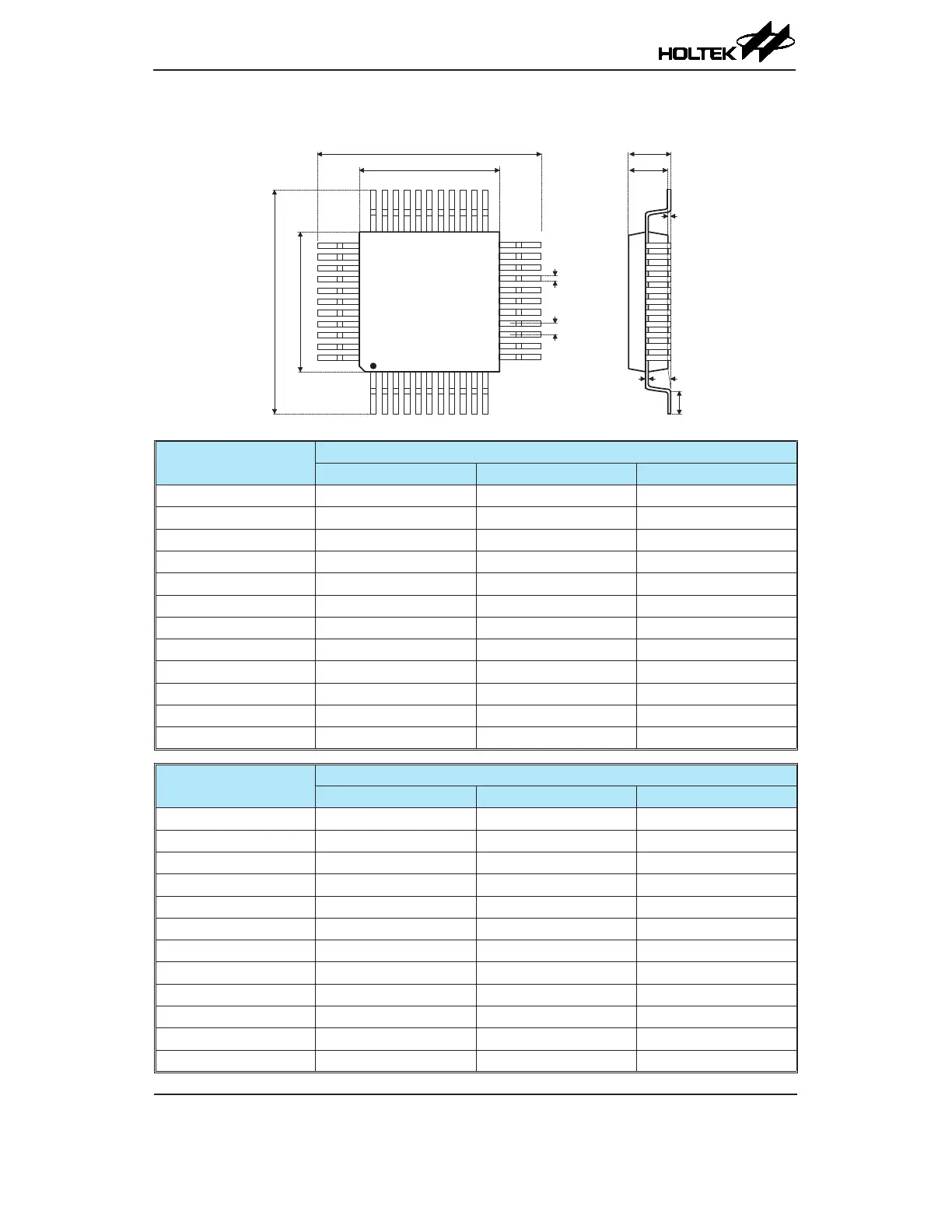

44-pin LQFP (10mm×10mm) (FP2.0mm) Outline Dimensions



















Symbol
Dimensions in inch
Min. Nom. Max.
A — 0.472 BSC —
B — 0.394 BSC —
C — 0.472 BSC —
D — 0.394 BSC —
E — 0.032 BSC —
F 0.012 0.015 0.018
G 0.053 0.055 0.057
H — — 0.063
I 0.002 — 0.006
J 0.018 0.024 0.030
K 0.004 — 0.008
α
0° — 7°
Symbol
Dimensions in mm
Min. Nom. Max.
A — 12.00 BSC —
B — 10.00 BSC —
C — 12.00 BSC —
D — 10.00 BSC —
E — 0.80 BSC —
F 0.30 0.37 0.45
G 1.35 1.40 1.45
H — — 1.60
I 0.05 — 0.15
J 0.45 0.60 0.75
K 0.09 — 0.20
α
0° — 7°
