Installation
8 DC1010/1020/1030/1040 Product Manual 8/05
2.4 Mounting
2.4.1 Physical Considerations
The controller can be mounted on either a vertical or tilted panel using the mounting
bracket supplied. Adequate access space must be available at the back of the panel for
installation and servicing activities.
Overall dimensions and panel cutout requirements for mounting the controller are
shown in Figure 2-1 through.Figure 2-4

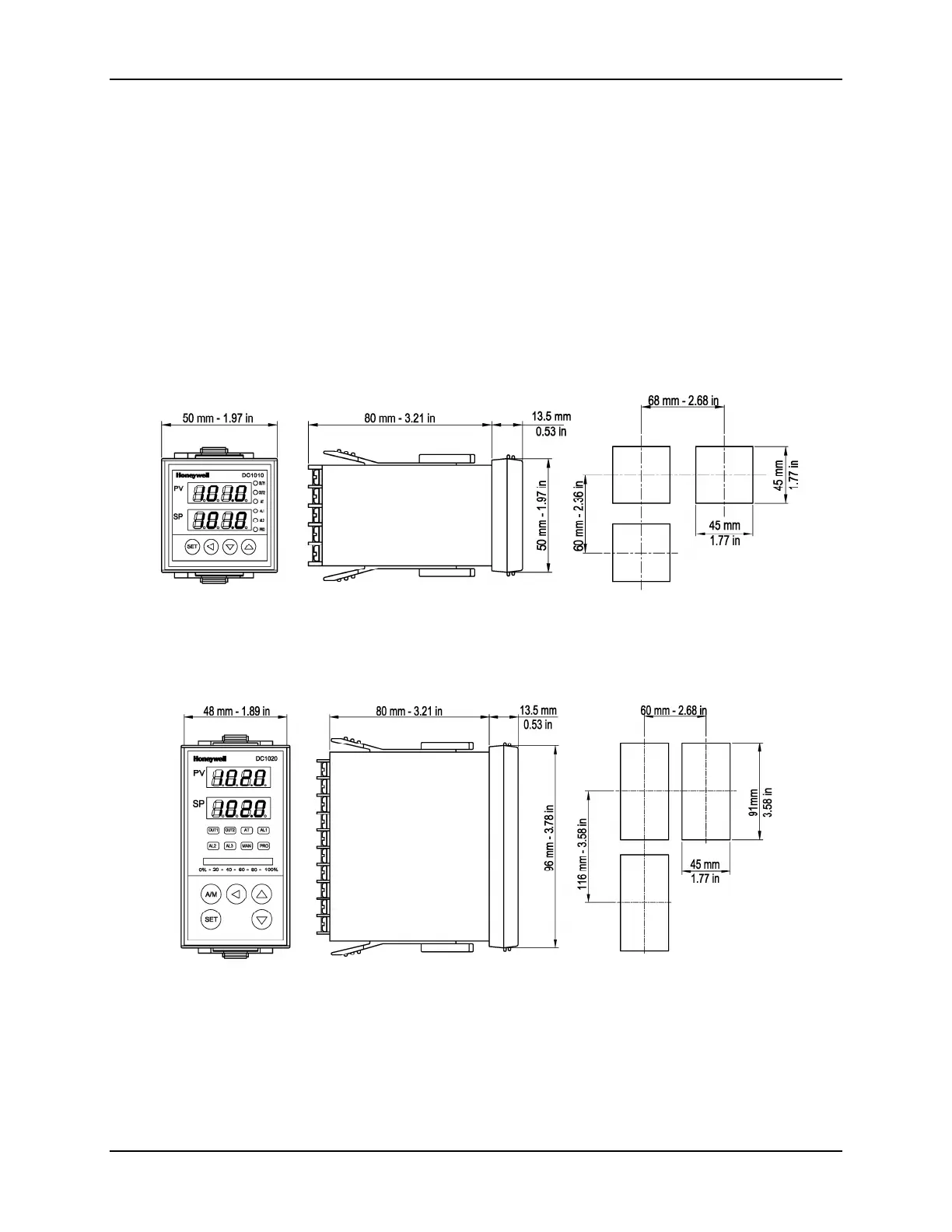

2.4.2 Overall Dimensions
Figure 2-1 Model DC1010 Dimensions
Figure 2-2 Model DC1020 Dimensions
