3 Operation
3.1 Overview
This section gives you all the information necessary to help you monitor and operate your
controller including an Operator Interface overview, an explanation of the Displays, keys,
and LEDs, and Mode access, and Operation Modes.
3.2 Operator Interface Overview

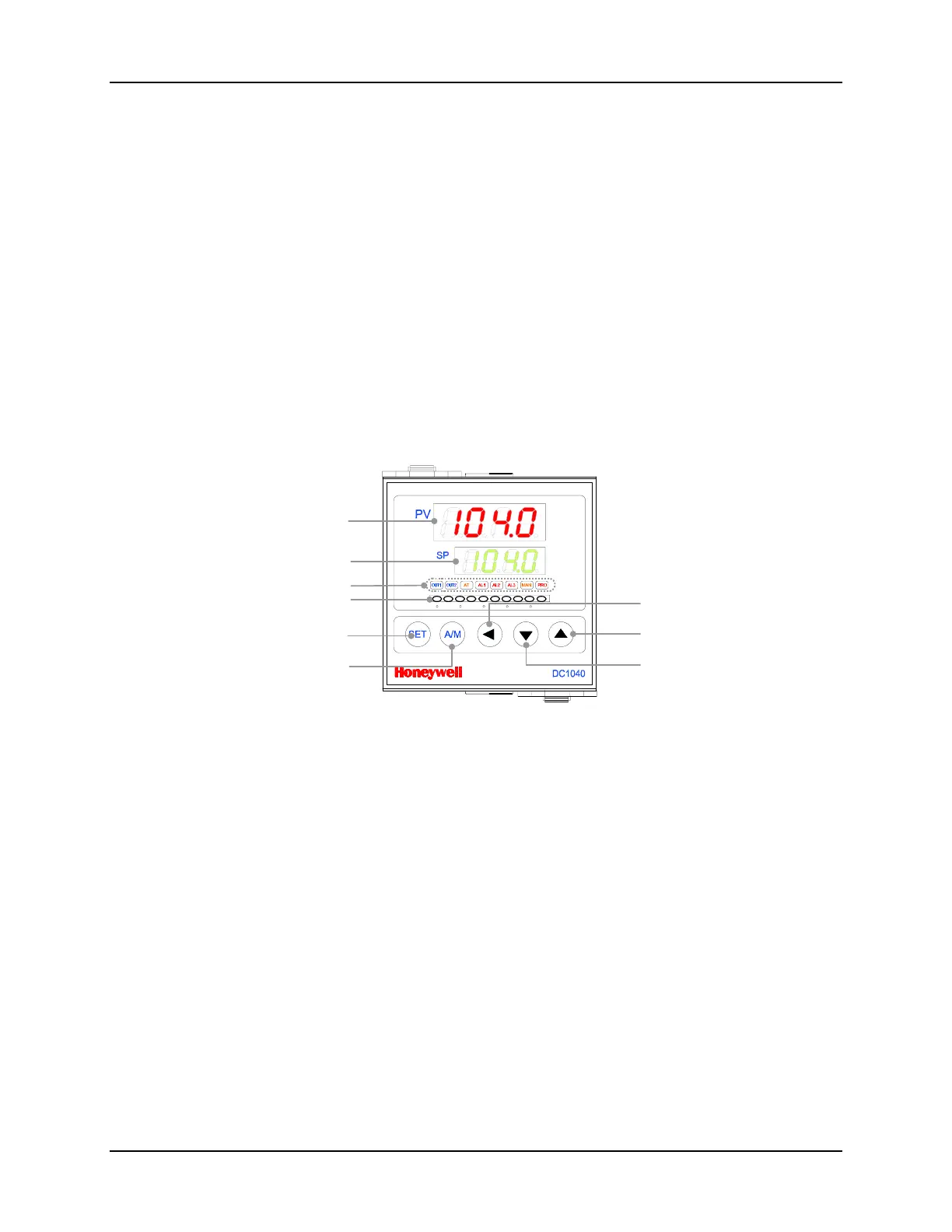

Figure 3-1 is a view of the operator interface. See Table 3-1 for a description of Displays,
LEDs, and Keys.
Also, see section 4.5 to allow parameters to be hidden or diplayed.
20
0%
40
60
80
100%
Upper Display
Lower Display
SET key
A
/M key
SHIFT key
Up key
Down key
LEDs
Bar Graph
Figure 3-1 Operator Interface
