4.5 Parameter Display Set (Hide or Display)
4.5.1 Overview
You can choose to hide or display some parameters by selecting the set mode of each.
See Figure 4-18 Display Status for an interpretation of the Status of the Sets.
Refer to Table 4-4 for Functions of the Sets.
SET 1
0 1 0 1
Status of SET # . 1
Status of SET # . 2
Status of SET # . 3
Status of SET # . 4
SET N0.
Press SET key to change SET 0 ~ 9
0=Hide
1=Display
# = Set Number
Example: Set 1 - 0 1 0 1 = OUTL (Displayed), AT (Hidden), AL1 (Displayed), AL2 (Hidden)
SET 1
0 1 0 1
Status of SET # . 1
Status of SET # . 2
Status of SET # . 3
Status of SET # . 4
SET N0.
Press SET key to change SET 0 ~ 9
0=Hide
1=Display
# = Set Number
Example: Set 1 - 0 1 0 1 = OUTL (Displayed), AT (Hidden), AL1 (Displayed), AL2 (Hidden)

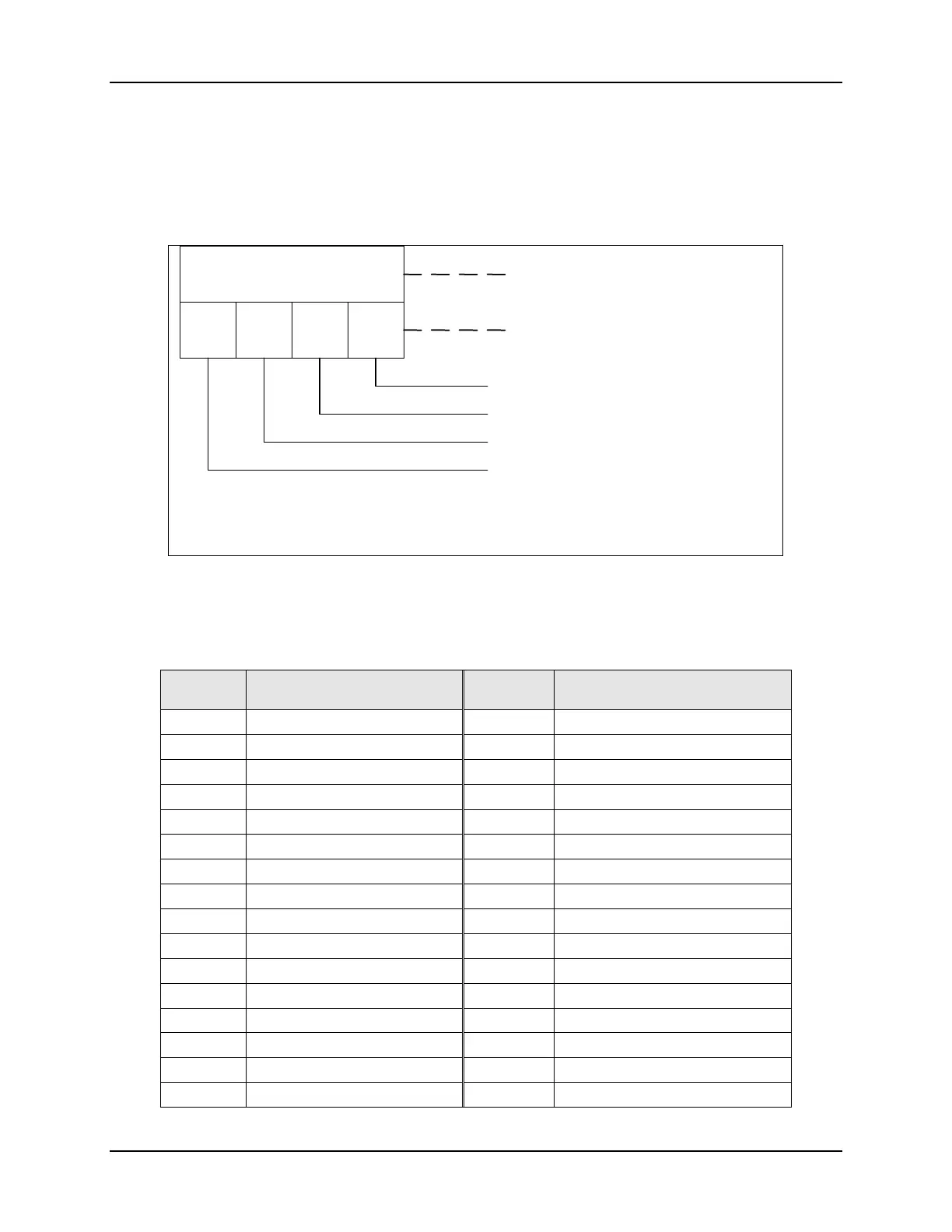

Figure 4-18 Display Status
4.5.2 Functions of SETs
Table 4-4 Functions of Sets
Set
Number
Function Set
Number
Function
1.1 OUTL 5.1 CLO2, CHO2
1.2 AT 5.2 CLO3, CHO3
1.3 AL1 5.3 RUCY,WAIT, SETA
1.4 AL2 5.4 IDNO, BAUD
2.1 AL3 6.1 SVOS (SP Comp = 0 or 1)
2.2 ANL1, ANH1, DP 6.2 PVOS (PV Comp = 0 or 1)
2.3 LSPL, USPL 6.3 UNIT
2.4 ANL2, ANH2 6.4 SOFT
3.1 ALD1 7.1 CASC
3.2 ALT1 7.2 OUD
3.3 ALD2 7.3 OPAD
3.4 ALY2 7.4 HZ
4.1 ALD3
4.2 ALT3
4.3 HYSA
4.4 CLO1, CHO1

Honeywell DC1010 Specifications

General

Control Type	On/Off, PID
Accuracy	±0.25% of span
Operating Temperature	0 to 50°C
Mounting	Panel Mount
Input Type	Thermocouple, RTD, mA, V
Output Type	Relay
Supply Voltage	100-240 VAC
Display	LED
Dimensions	48 x 48 mm
Number of Outputs	Up to 3
Enclosure Rating	IP66
Alarm	Up to 2 alarms
