Installation
10 DC1010/1020/1030/1040 Product Manual 8/05
2.4.3 Mounting Procedure
Before mounting the controller, refer to the nameplate on the outside of the case and
make a note of the model number. It will help later when selecting the proper wiring
configuration.

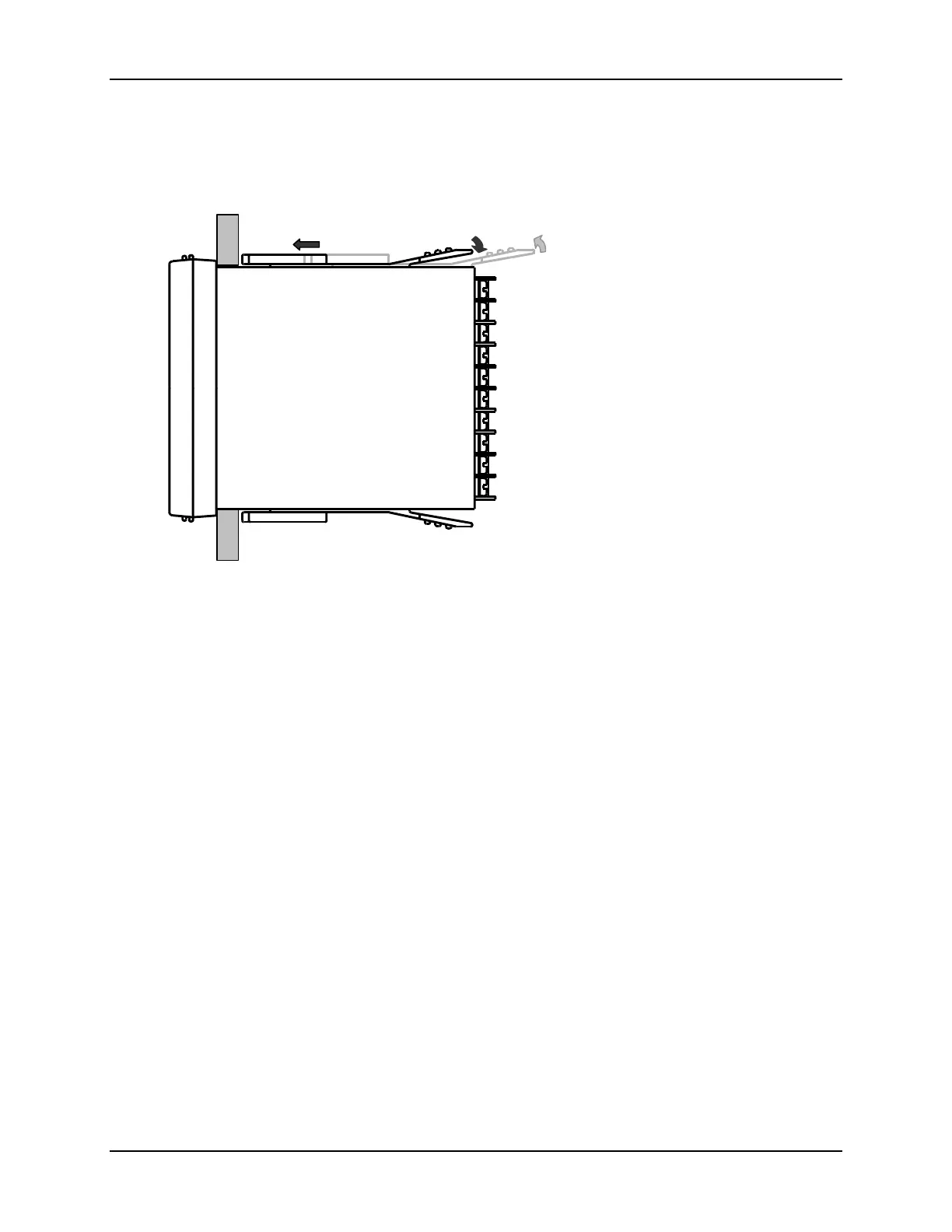

Side View
c
d
e
1. Put the mounting bracket in
the rail on the top & bottom
of the case.
2. Bend the grip of the bracket
& slide the bracket along
the rail until the case is
secured against the panel.
3. Put the grip of the bracket
on the groove to fasten the
case to the panel.
Figure 2-5 Mounting Procedure

Honeywell DC1010 Specifications

General

Control Type	On/Off, PID
Accuracy	±0.25% of span
Operating Temperature	0 to 50°C
Mounting	Panel Mount
Input Type	Thermocouple, RTD, mA, V
Output Type	Relay
Supply Voltage	100-240 VAC
Display	LED
Dimensions	48 x 48 mm
Number of Outputs	Up to 3
Enclosure Rating	IP66
Alarm	Up to 2 alarms
