Configuration
8/05 DC1010/1020/1030/1040 Product Manual 31

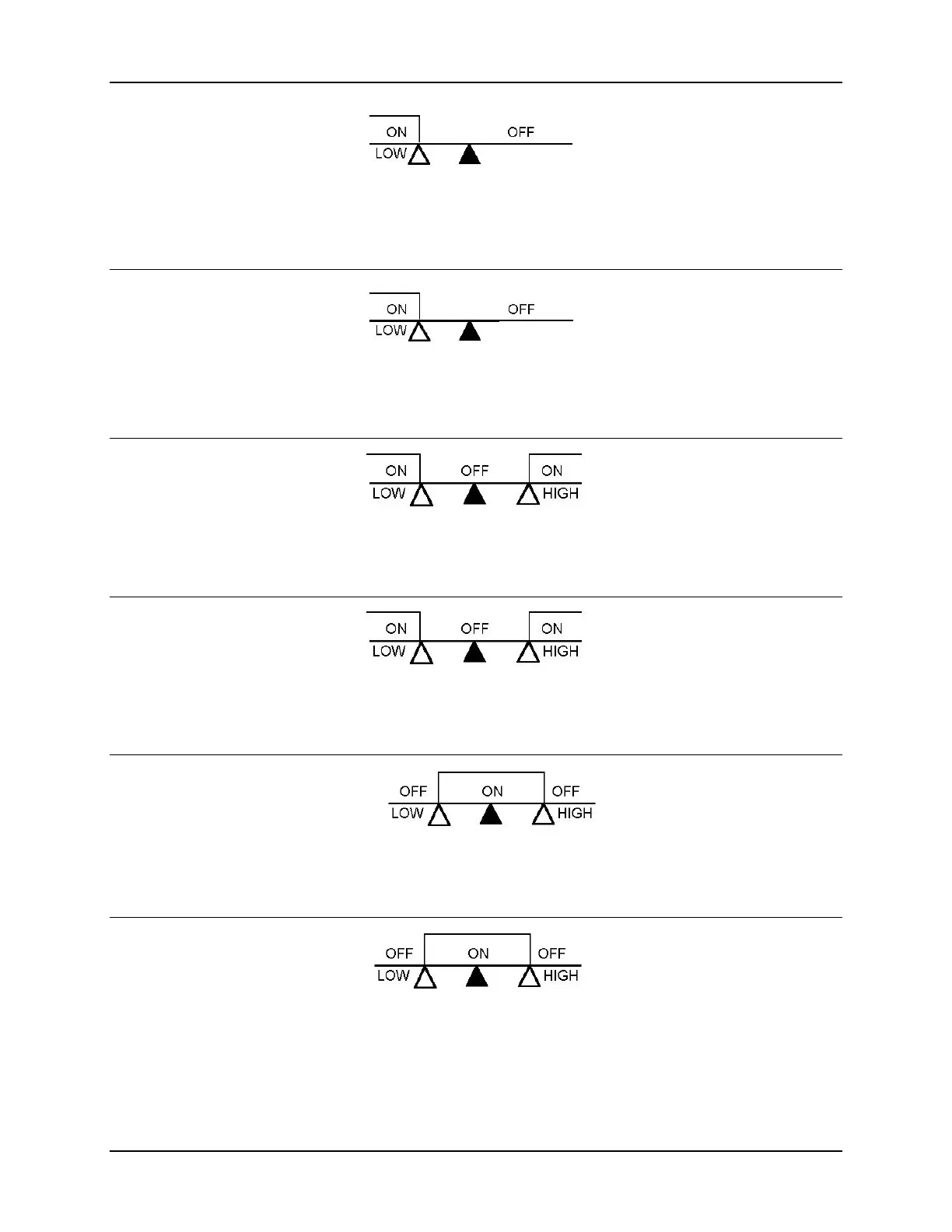

Figure 4-4 Lower Limit Deviation Alarm
(Alarm Code 02, Alarm release in the first alarming situation)
Figure 4-5 Lower Limit Deviation Alarm
(Alarm Code 12, No alarm release in the first alarming situation)
Figure 4-6 Dev. Band Breakaway Alarm [Hold On = Yes]
(Alarm Code 03, Alarm release in the first alarming situation)
Figure 4-7 Dev. Band Breakaway Alarm
(Alarm Code 13, No alarm release in the first alarming situation)
Figure 4-8 Deviation Band Alarm [Hold On = Yes]
(Alarm Code 04, Alarm release in the first alarming situation)
Figure 4-9 Deviation Band Alarm
(Alarm Code 14, No alarm release in the first alarming situation)

Honeywell DC1010 Specifications

General

Control Type	On/Off, PID
Accuracy	±0.25% of span
Operating Temperature	0 to 50°C
Mounting	Panel Mount
Input Type	Thermocouple, RTD, mA, V
Output Type	Relay
Supply Voltage	100-240 VAC
Display	LED
Dimensions	48 x 48 mm
Number of Outputs	Up to 3
Enclosure Rating	IP66
Alarm	Up to 2 alarms
