Honeywell DC1010 User Manual

Configuration

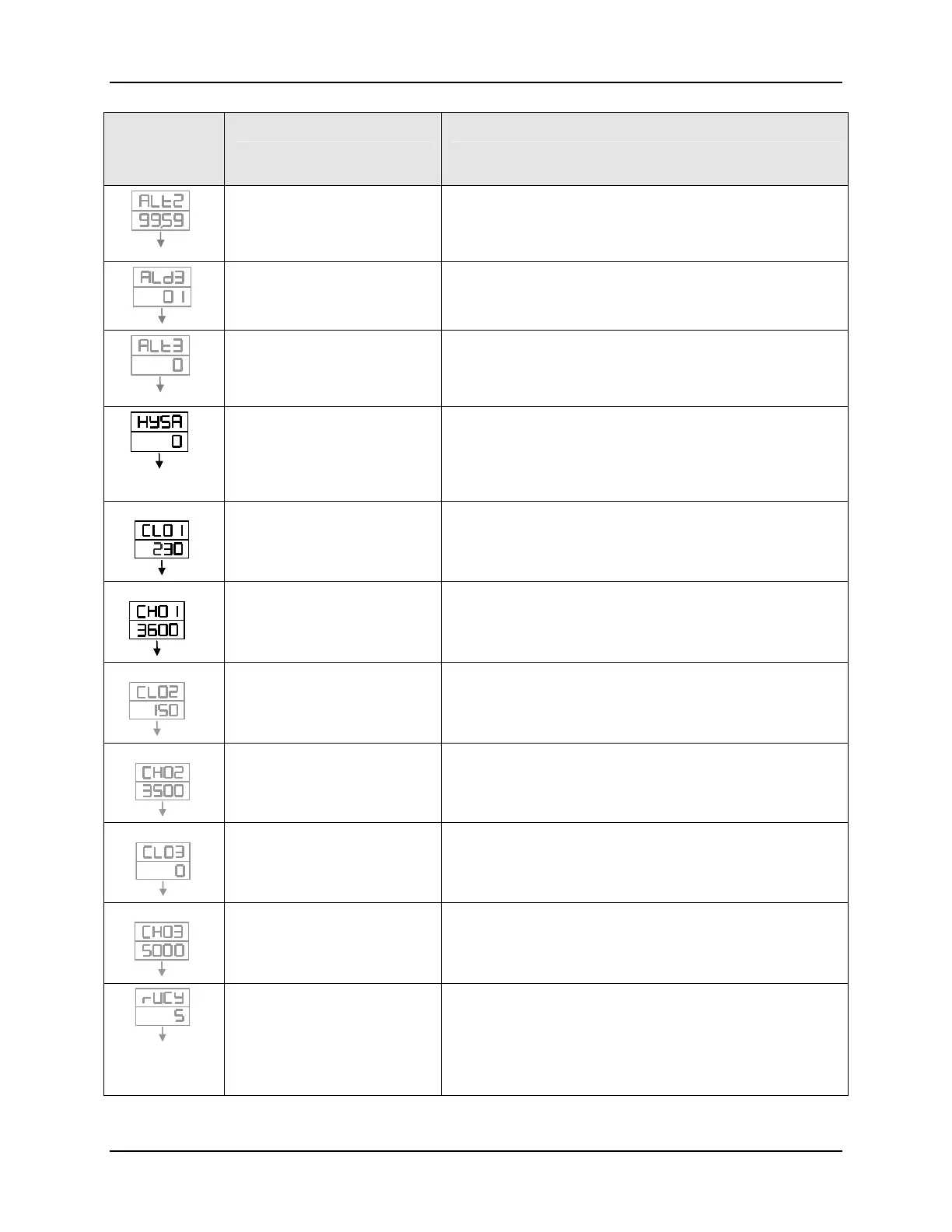

8/05 DC1010/1020/1030/1040 Product Manual 27
Displays
Default Value
shown except for
examples
Parameter Description
SETSET
Time set for Alarm 2
* Range: 0-99 min, 59 seconds
0= flickering alarm, 99:59= continual alarm
Other = Time delay for alarm
SETSET
Alarm Code for Alarm 3
* Refer to Table 4-3 for Alarm Codes.
SETSET
Time set for Alarm 3
* Range: 0-99 min, 59 seconds
0= flickering alarm, 99:59= continual alarm
Other = Time delay for alarm
SETSET
Hysteresis for alarms
Sets the hysteresis for alarm actuation
(Range=0 to 1000)
ON: PV<=(SPHYS1)
OFF: PV>(SP+HYS1)
example
SETSET
Main Control (OUT1) **0
Lower Limit of linear output
Used to adjust the linear control output during calibration
* DO NOT change the value without technical assistance
example
SETSET
Main Control (OUT1) **
Upper Limit of linear output
Used to adjust the linear control output during calibration
* DO NOT change the value without technical assistance
example
SETSET
Sub Control (OUT2) **
Lower Limit of linear output
Used to adjust the linear control output during calibration
* DO NOT change the value without technical assistance
example
SETSET
Sub Control (OUT2) **
Upper Limit of linear output
Used to adjust the linear control output during calibration
* DO NOT change the value without technical assistance
example
SETSET
Auxiliary Output
Lower Limit of Aux. output
Used to adjust the linear control output during calibration
* DO NOT change the value without technical assistance
example
SETSET
Auxiliary Output
Upper Limit of Aux. output
Used to adjust the linear control output during calibration
* DO NOT change the value without technical assistance
SETSET
Motor Time
Three Position Step Control - This is the time it takes the
motor to travel from 0 to 100% (fully closed to fully
open). This time can usually be found on the nameplate
of the motor.
Range: 5 – 200 seconds

Honeywell DC1010 Specifications

General

Control Type	On/Off, PID
Accuracy	±0.25% of span
Operating Temperature	0 to 50°C
Mounting	Panel Mount
Input Type	Thermocouple, RTD, mA, V
Output Type	Relay
Supply Voltage	100-240 VAC
Display	LED
Dimensions	48 x 48 mm
Number of Outputs	Up to 3
Enclosure Rating	IP66
Alarm	Up to 2 alarms
