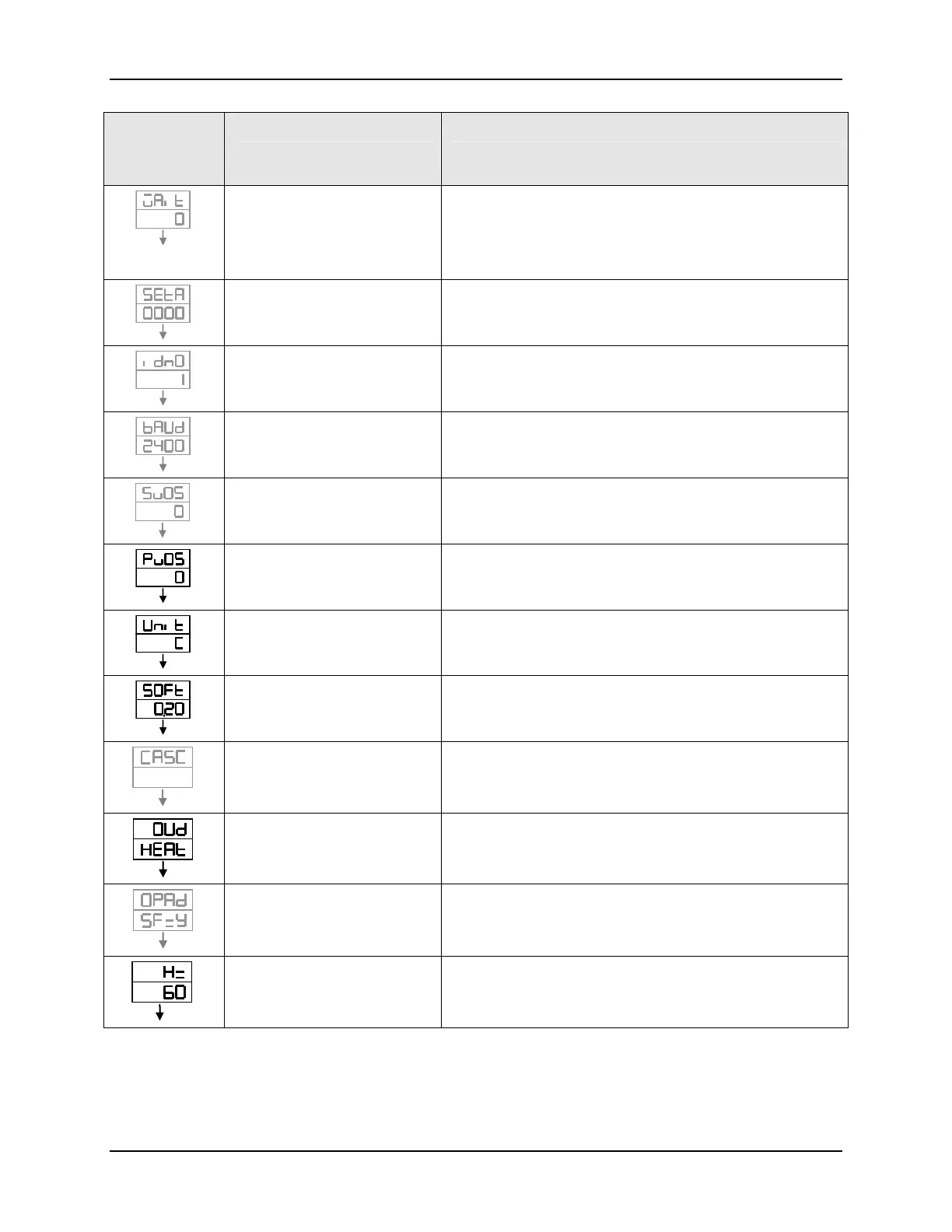

Configuration
28 DC1010/1020/1030/1040 Product Manual 8/05
Displays
Default Value
shown except for
examples
Parameter Description
SETSET
Wait Function
To set “WAIT” for program operation
SETSET
Extra Set
DO NOT change the value of this parameter
SETSET
ID Number
Communication ID Number
SETSET
Baud Rate
DO NOT change the value of this parameter
SETSET
SP Compensation
Range: -1000 to 1000
SETSET
PV Compensation
Range: LSPL – USPL
Used to Bias Process Variable
SETSET
Unit of PV and SP
Selection: C, F, and A (linear)
SETSET
Soft Filter
Adjusts the PV response time (Range: 0.05 to 1.00)
(Larger value = faster response)
SETSET
* DO NOT change this value
SETSET
Operation Mode
(Control Action)
Heating or Cooling
SETSET
Control Process
PID or Fuzzy
SETSET
Frequency
50 or 60 Hz
CAUTION: Make sure the proper frequency is selected.
** These two parameters are only for adjusting the linear signal of the control output, not for the limitation of the
control output or any other purpose. DO NOT change these values without technical assistance.
