8/05 DC1010/1020/1030/1040 Product Manual 19
3.3 Mode Access
Operation
Configuration 1
Configuration 2
Program
Set Up
(1)
(3)
(2)
(2)
(3)
Operation
Configuration 1
Configuration 2
Program
Set Up
(1)
(3)
(2)
(2)
(3)

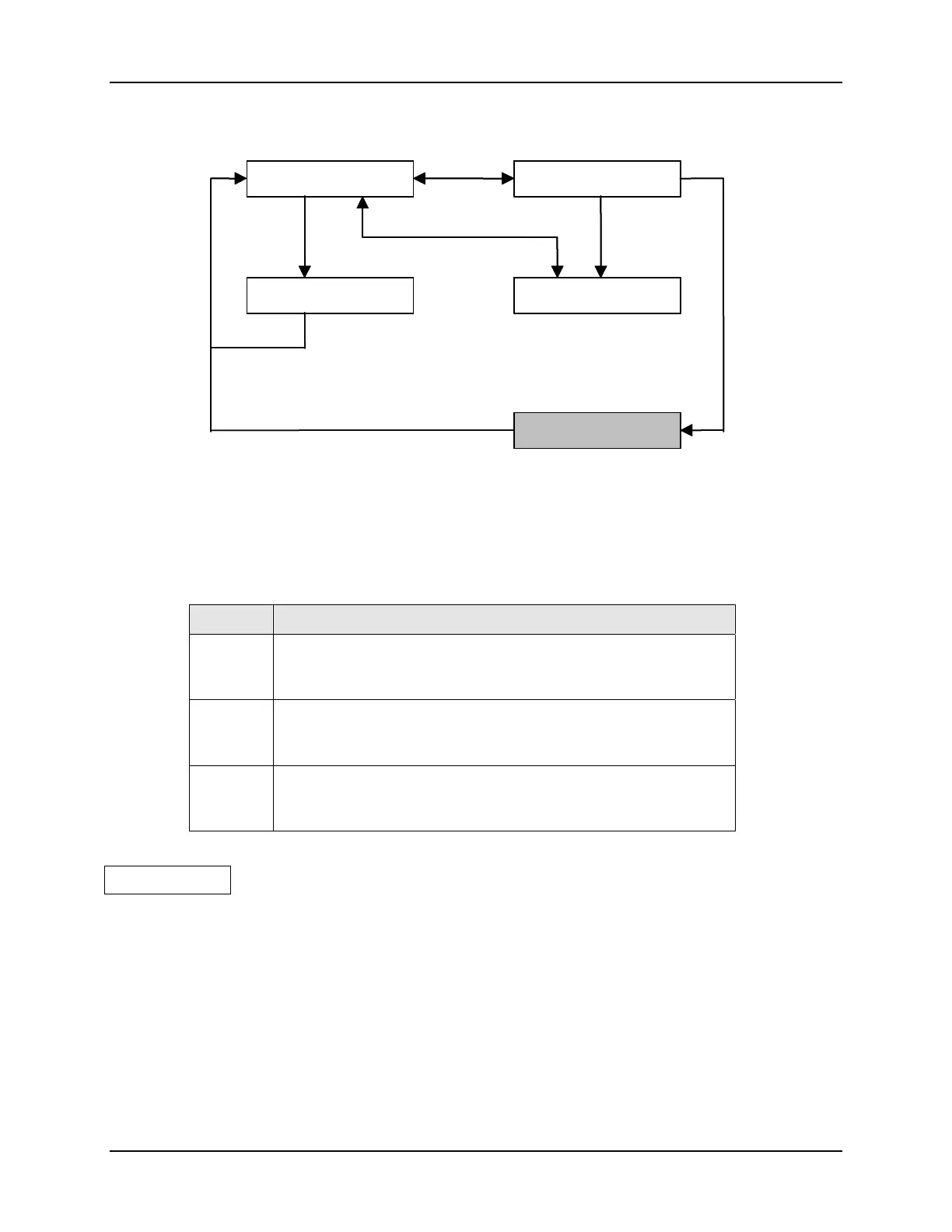

Figure 3-2 Mode Access Diagram
3.3.1 How to move from one mode to another
Refer to Figure 3-2 and Table 3-2 for instructions.
Table 3-2 Mode Change Instructions
Step Action
(1)
Press ‘SET’ key for 5 seconds, it grants access to
‘Configuration 1’ mode or return to ‘Operation’ mode from
‘Configuration 1’ mode.
(2)
Press ‘SHIFT’ key for 5 seconds while pressing ‘SET’ key first, it
grants access to ‘Configuration 2’ mode or return to ‘Operation’
mode.
(3)
All parameters related to program configuration will be displayed
next to parameters in ‘Operation’ mode. (* These parameters will
be shown in program model only)
ATTENTION Do not access ‘set up’ mode without technical assistance.

Honeywell DC1010 Specifications

General

Control Type	On/Off, PID
Accuracy	±0.25% of span
Operating Temperature	0 to 50°C
Mounting	Panel Mount
Input Type	Thermocouple, RTD, mA, V
Output Type	Relay
Supply Voltage	100-240 VAC
Display	LED
Dimensions	48 x 48 mm
Number of Outputs	Up to 3
Enclosure Rating	IP66
Alarm	Up to 2 alarms
