Configuration
32 DC1010/1020/1030/1040 Product Manual 8/05

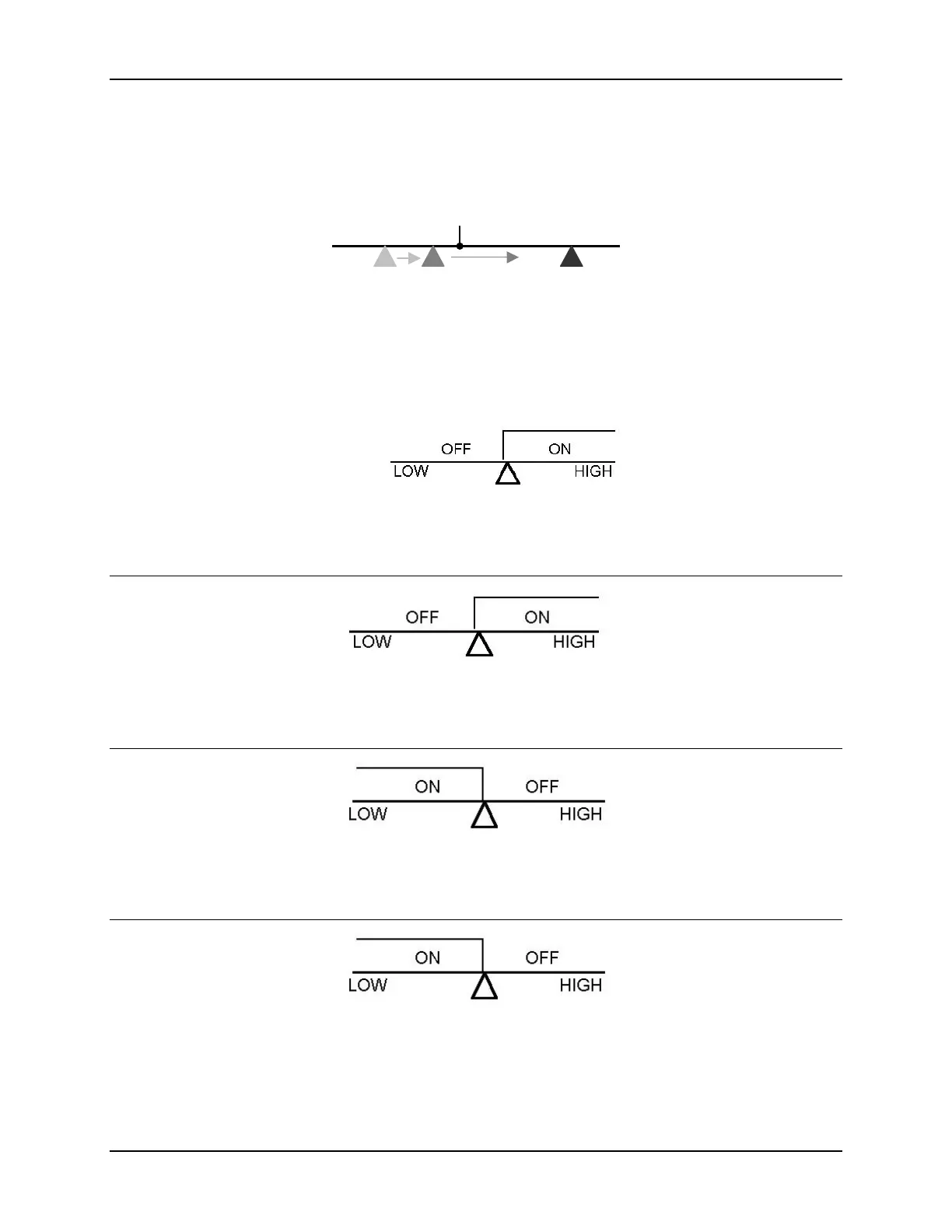

4.3.3 Absolute Value Alarm Overview
The Alarm SP (Set Point) is to be fixed even though the SP moves. When an alarm is set,
the absolute value of the Alarm SP should be defined.
SP1
SP2 SP3
Alarm Set Point (Fixed)
Figure 4-10 Absolute Value Alarm
4.3.3.1 Types of Absolute Value Alarms
Figure 4-11 Absolute Upper Limit Alarm [Hold On = Yes]
(Alarm Code 05, Alarm release in the first alarming situation)
Figure 4-12 Absolute Upper Limit Alarm
(Alarm Code 15, No alarm release in the first alarming situation)
Figure 4-13 Absolute Lower Limit Alarm
(Alarm Code 06, Alarm release in the first alarming situation)
Figure 4-14 Absolute Lower Limit Alarm
(Alarm Code 16, No alarm release in the first alarming situation)

Honeywell DC1010 Specifications

General

Control Type	On/Off, PID
Accuracy	±0.25% of span
Operating Temperature	0 to 50°C
Mounting	Panel Mount
Input Type	Thermocouple, RTD, mA, V
Output Type	Relay
Supply Voltage	100-240 VAC
Display	LED
Dimensions	48 x 48 mm
Number of Outputs	Up to 3
Enclosure Rating	IP66
Alarm	Up to 2 alarms
