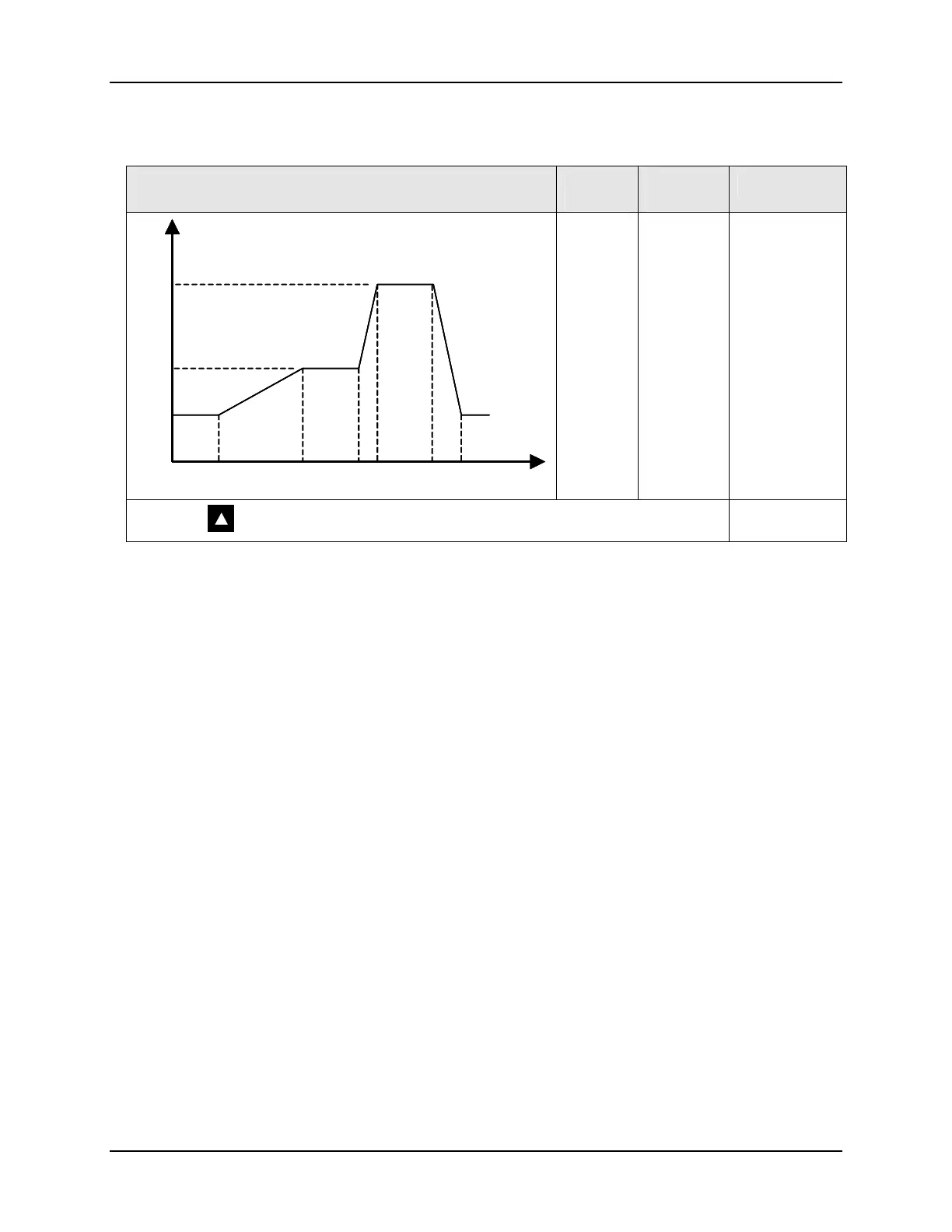

Honeywell DC1010 - Program Example; Figure 5-1 Program Example

Programmer (Optional)
8/05 DC1010/1020/1030/1040 Product Manual 47
5.5.3 Program Example
Profile Segment
Number
Setpoint
Values
Time Settings
11012141617
20
50
90
SP
Time
11012141617
20
50
90
11012141617
20
50
90
SP
Time
1
2
3
4
5
6
7
8
SP 1 = 20
SP 2 = 50
SP 3 = 50
SP 4 = 90
SP 5 = 90
SP 6 = 20
SP 7 = 0
T 1 = 00:01
T 2 = 09:00
T 3 = 00:02
T 4 = 00:02
T 5 = 00:02
T 6 = 00:01
T 7 = 00:00
Press the key to start the program.
Figure 5-1 Program Example
