Honeywell DC1010 User Manual

Programmer (Optional)
46 DC1010/1020/1030/1040 Product Manual 8/05

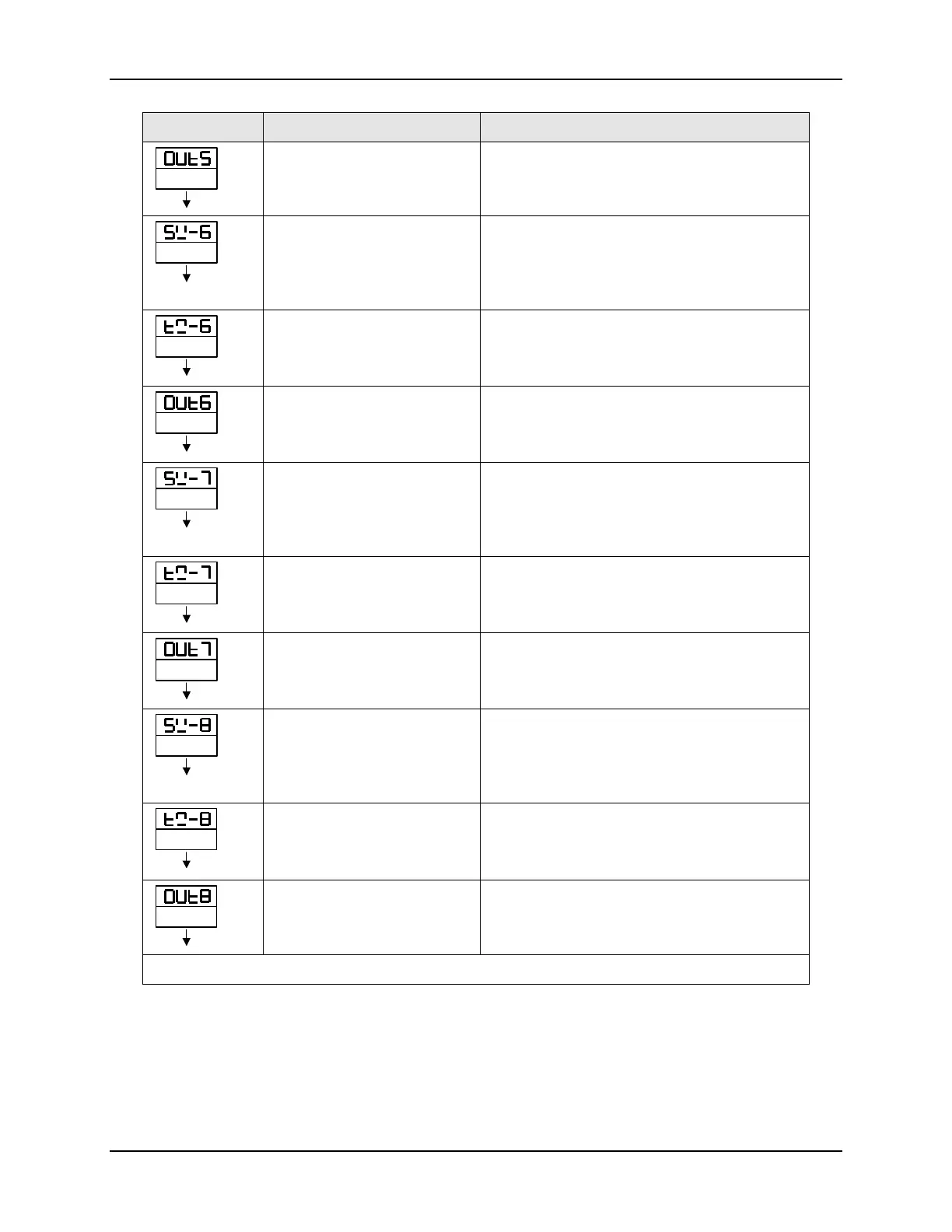

Displays Parameter Description
SET
Output Limit for Segment 5 Range: 0 to 100%
If OUT = 0, program will end
SET
Setpoint for Segment 6 Range:
LSPL (Lower Setpoint Limit) to
USPL (Upper Setpoint Limit)
See Table 4-2 for Limit settings
SET
Time Setting for Segment 6 Range: 0-99 hrs:59 minutes
Ramp segment* = Changing Setpoint time
Soak segment** = Fixed Setpoint time
SET
Output Limit for Segment 6 Range: 0 to 100%
If OUT = 0, program will end
SET
Setpoint for Segment 7 Range:
LSPL (Lower Setpoint Limit) to
USPL (Upper Setpoint Limit)
See Table 4-2 for Limit settings
SET
Time Setting for Segment 7 Range: 0-99 hrs:59 minutes
Ramp segment* = Changing Setpoint time
Soak segment** = Fixed Setpoint time
SET
Output Limit for Segment 7 Range: 0 to 100%
If OUT = 0, program will end
SET
Setpoint for Segment 8 Range:
LSPL (Lower Setpoint Limit) to
USPL (Upper Setpoint Limit)
See Table 4-2 for Limit settings
SET
Time Setting for Segment 8 Range: 0-99 hrs:59 minutes
Ramp segment* = Changing Setpoint time
Soak segment** = Fixed Setpoint time
SET
Output Limit for Segment 8 Range: 0 to 100%
If OUT = 0, program will end
Back to “Operation” Mode – See Table 3-3
*A Ramp Segment is the time it will take to change the setpoint to the next setpoint
value in the program.
** A
Soak Segment is a combination of soak setpoint (value) and a soak duration
(time).

Honeywell DC1010 Specifications

General

Control Type	On/Off, PID
Accuracy	±0.25% of span
Operating Temperature	0 to 50°C
Mounting	Panel Mount
Input Type	Thermocouple, RTD, mA, V
Output Type	Relay
Supply Voltage	100-240 VAC
Display	LED
Dimensions	48 x 48 mm
Number of Outputs	Up to 3
Enclosure Rating	IP66
Alarm	Up to 2 alarms
