4.3.2 Deviation Alarm Overview
The Alarm SP (Set Point) is to be changed as the SP moves. In this case, the Alarm SP
preserves a certain deviation value with the SP. When an alarm is set, a certain deviation
value with the preset SP should be defined.
SP1
Deviation
(Lower limit)
A
larm SP
SP1 SP2
A
larm SP moves along SP change
SP Change
SP1
Deviation
(
U
pp
er Limit
)
A
larm SP
SP1 SP2
A
larm SP moves along SP change
SP Change

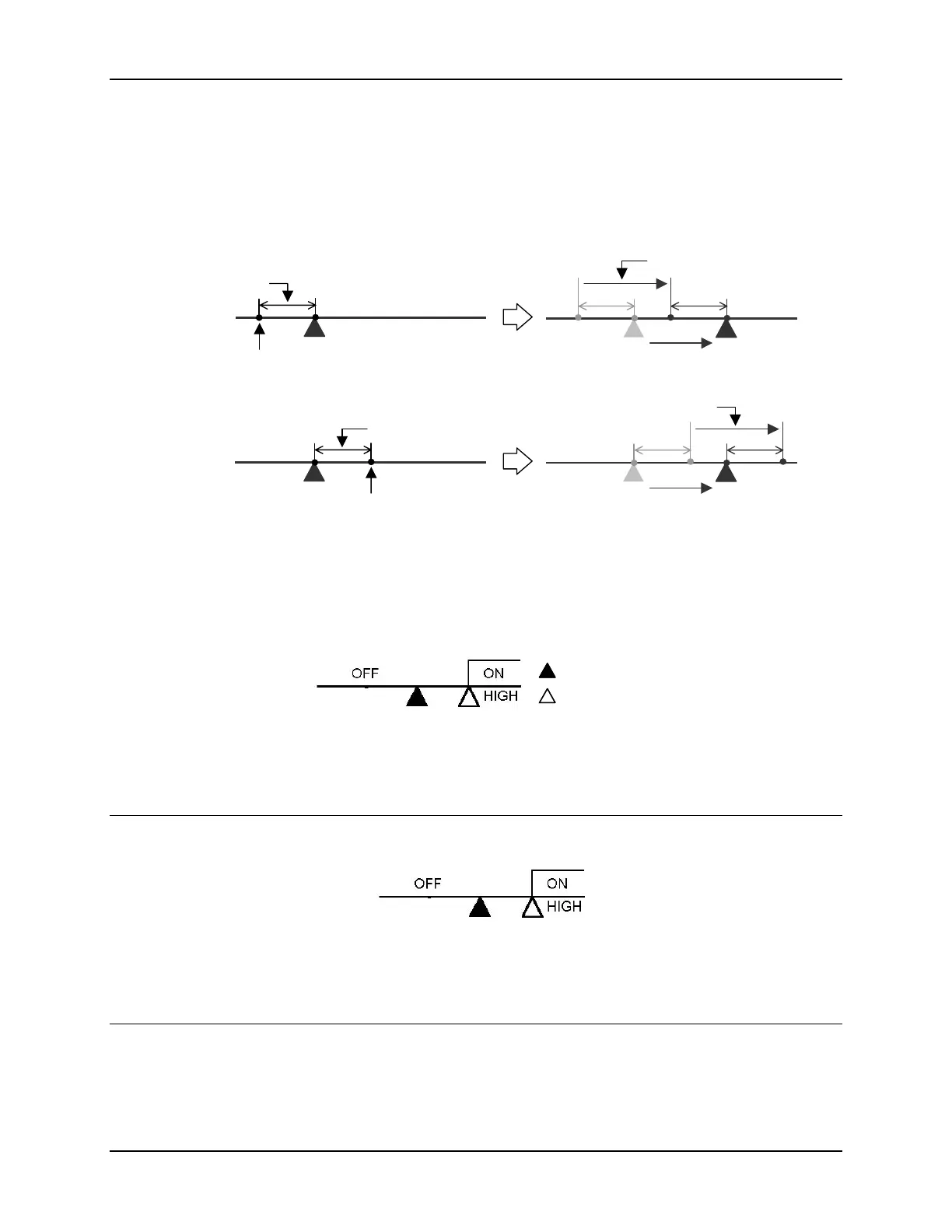

Figure 4-1 Deviation Alarms
4.3.2.1 Types of Deviation Alarms
: Set Point
: Alarm Set Point
: Set Point
: Alarm Set Point
Figure 4-2 Upper Limit Deviation Alarm [Hold On = Yes]
(Alarm Code 01, Alarm release in the first alarming situation)
Figure 4-3 Upper Limit Deviation Alarm
(Alarm Code 11, No alarm release in the first alarming situation)

Honeywell DC1010 Specifications

General

Control Type	On/Off, PID
Accuracy	±0.25% of span
Operating Temperature	0 to 50°C
Mounting	Panel Mount
Input Type	Thermocouple, RTD, mA, V
Output Type	Relay
Supply Voltage	100-240 VAC
Display	LED
Dimensions	48 x 48 mm
Number of Outputs	Up to 3
Enclosure Rating	IP66
Alarm	Up to 2 alarms
