Honeywell DC1010 User Manual

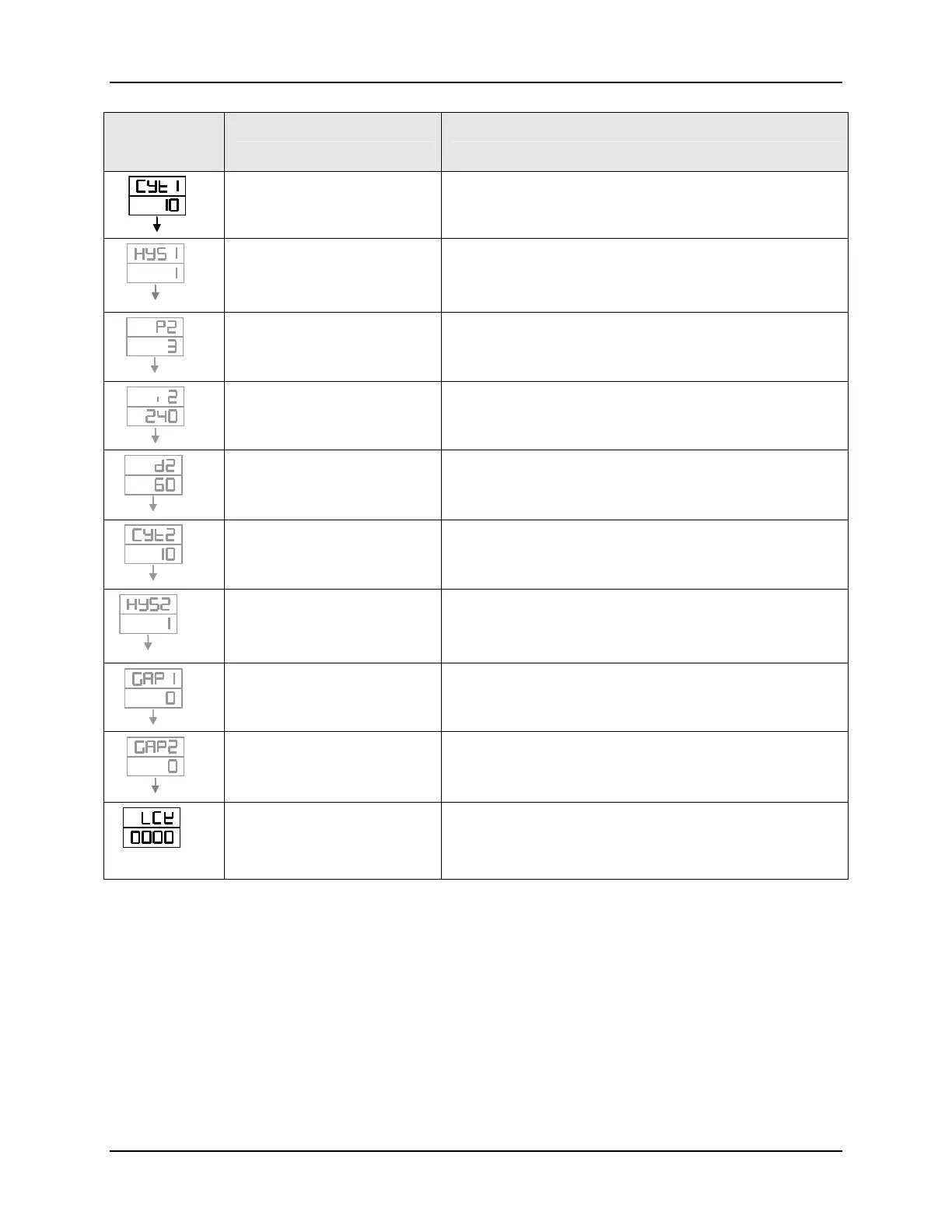

Configuration
8/05 DC1010/1020/1030/1040 Product Manual 25
Displays
Default Value
Shown
Parameter Description
SETSET
Main Control (OUT 1)
Cycle of Control Output
Output Type (SSR → 1, 4-20mA → 0, Relay → 10)
Range: 0 to 150 seconds
SETSET
Main Control (OUT 1)
Actuation of Hysteresis
For On/Off Control (P1=0) (Range 0-1000)
ON: PV<= (SP – HYS1)
OFF: PV> (SP + HYS1)
SETSET
Sub Control (OUT 2) *
P Value (Proportional Band)
Same as P1 Configuration
SETSET
Sub Control (OUT 2) *
I Value (Integral Value)
Same as I1 Configuration
SETSETSET
Sub Control (OUT 2) *
D Value (Derivative Time)
Same as D1 Configuration
SETSETSET
Sub Control (OUT 2) *
Cycle of Control Output
Same as CYT1 Configuration
SETSETSET
Sub Control (OUT 2) *
Actuation of Hysteresis
Same as HYS1 Configuration
SETSET
Main Control (OUT 1)
Gap
Control Output is turned off before reaching setpoint
Turning Point = SP – GAP 1; Off = (OUT 1 = Heat)
SETSET
Sub Control (OUT 2) *
Gap
Control Output is turned off before reaching setpoint
Turning Point = SP + GAP 2; On = (OUT 2 = Cool)
SETSET
Function Lock Refer to Section 4.4 for Mode access designations.
* Will only appear in models with “OUT2” option.

Honeywell DC1010 Specifications

General

Control Type	On/Off, PID
Accuracy	±0.25% of span
Operating Temperature	0 to 50°C
Mounting	Panel Mount
Input Type	Thermocouple, RTD, mA, V
Output Type	Relay
Supply Voltage	100-240 VAC
Display	LED
Dimensions	48 x 48 mm
Number of Outputs	Up to 3
Enclosure Rating	IP66
Alarm	Up to 2 alarms
