Front Panel Display & Navigation
E-Mon® Series - Global User Manual
54-000-01-ENG01-0121
Page | 45

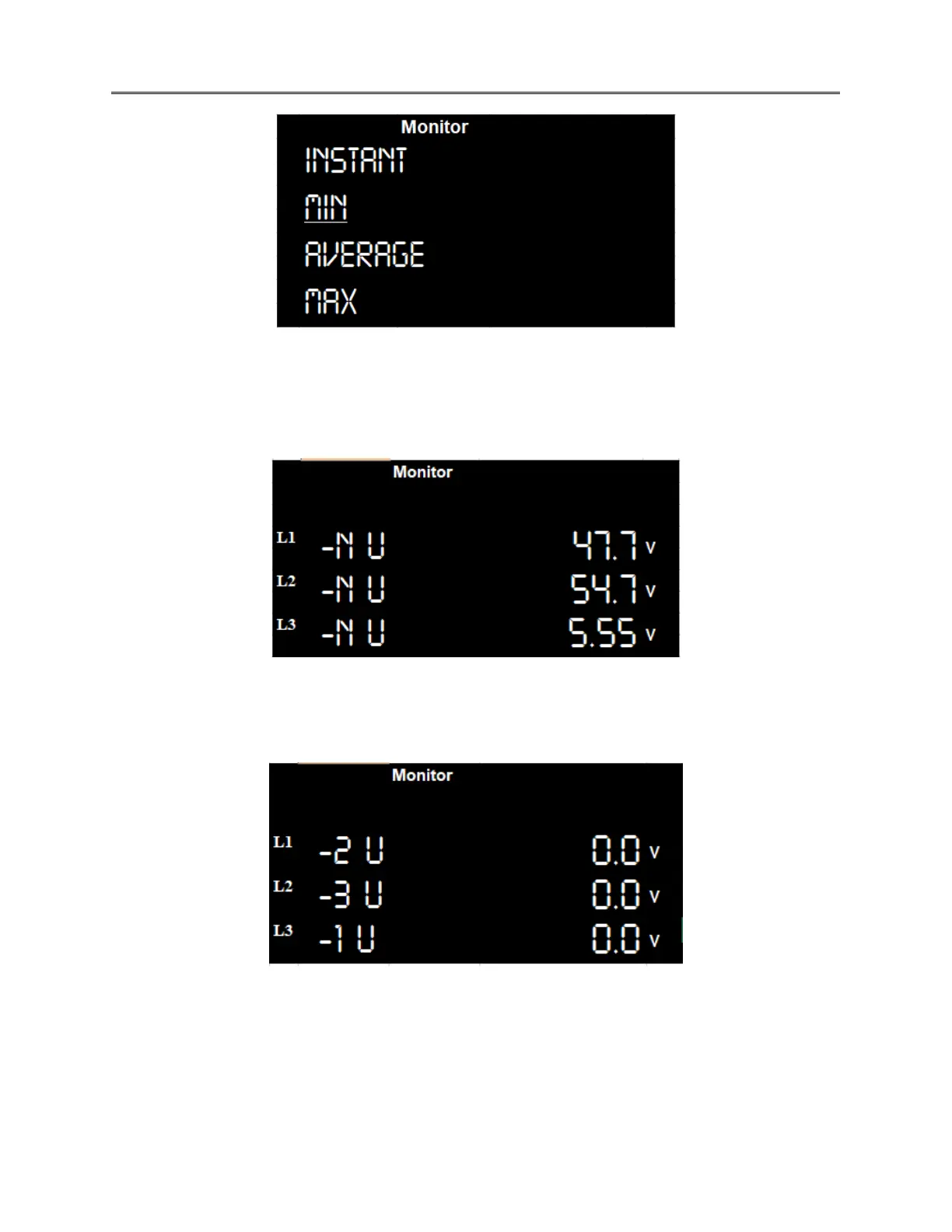

a. Line to Neutral voltage Use the navigation methods as mentioned in Navigation
Diagram and select the ‘Monitor’ menu to check the values. Long press SET button to
go back to the Menu option.
Displays the minimum line (L1, L2, L3) to neutral (-N) voltage for each phase.
b. Line to line voltage Use the navigation method to enter the ‘Monitormenu items.
Long press SET button to go back to the Menu options.
Displays the minimum line to Line (L1-L2, L2-L3, L3-L1) voltage for each phase.
c. Current Toggle to the current option in Minimum menu by pressing Down arrow to
check the values.
Displays cumulative () Minimum current (I) and per phase (L1, L2, L3) Minimum
current.
