4.4. Navigating through display screen
Use the three buttons provided on the front panel for navigation through various menu
options. Select the submenu item from the list and use SET button for setting up or checking
the values.
The front panel consist of three main menu options which is accessible using the SET button.
Each main menu contains various options for meter functions and monitoring. The options
available on these three tabs are explained further in this chapter.
4.4.1. Energy Screen Menu
Energy – To display all the energy parameters, this menu provides all the readings related to
the energy consumption and generation in the electrical system.
• From default screen, use the Up/Down button to toggle between main menu. The
underline displays your current menu selection. Refer to Figure 15. Navigation Guide
through front screen

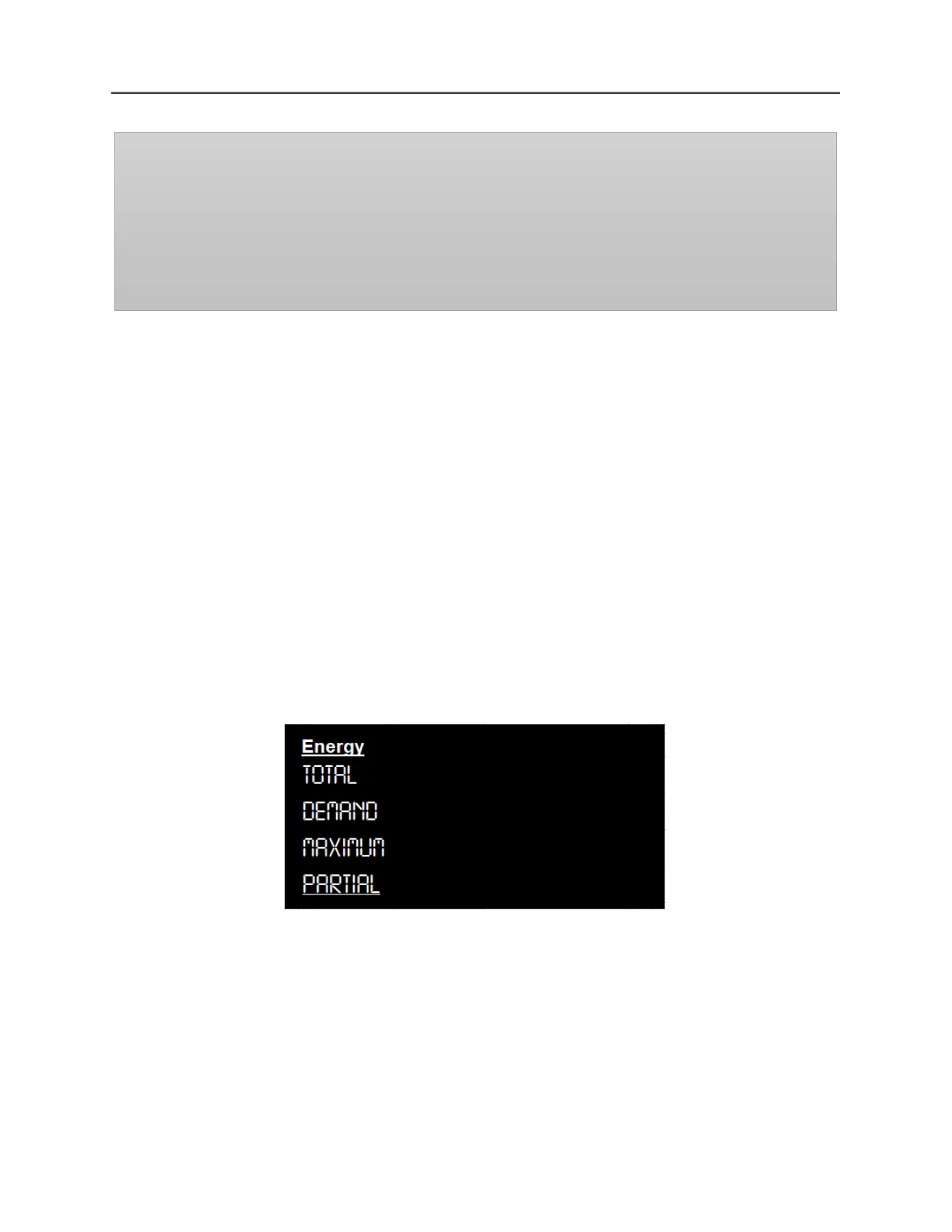

Figure 17. Default Energy Screen
• Select the Energy menu. Press SET to enter ‘Energy’ menu. Use the Up/Down button to
toggle through Energy sub-menus. Press SET to enter selected sub-menus.
• Press the SET button to enter menu items and use the down arrow button to highlight the
next option.
NOTE
• During initially switching the meter ON, the display will show the Main Menu page.
The users can navigate through the screens using the navigation buttons and SET
button to setup the meter and browse through various options.
• It is advised to check for electrostatic discharge and make sure all the protective
measures are being used during front panel operation.
