Overview
E-Mon® Series - Global User Manual
54-000-01-ENG01-0121
Page | 25
Description
Function
8. Communication terminal
I/O or Communication (Push-in Connector)
9. In terminal
Incoming Connection Terminal
10. Manufacturer id
Manufacturer Specific ID
11. LCD
Primary User Interface
12. metrology led
1000 imp/kWh
3.4.1. Push-in Terminals
The Push in terminals are available to enable easy installation of the device communication.
The communication terminals are designed for installation of pulse output using push in
buttons. Users can simply push the yellow buttons and plug the terminals to enable the meter
for pulse output. Post the connection, the entire setup shall be locked in using the red slider
button.
• Terminal for Pulse Output

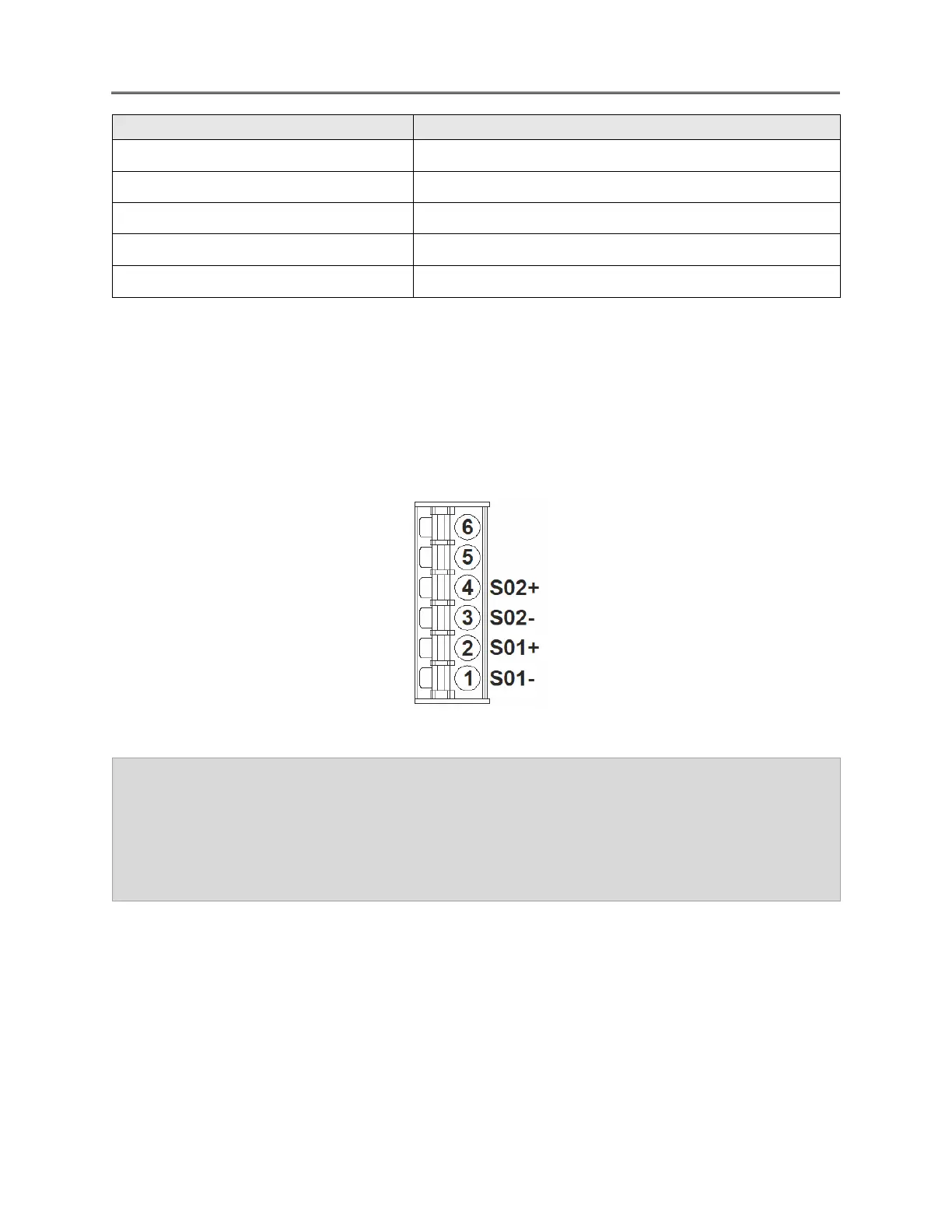

Figure 9. Push-in terminals
3.5. Architecture
The E-Mon® meter architecture is designed to safeguard the sensitivity and functionality of
the energy meter. The E-Mon® Class 6000 meter has designated terminals for CS connection
and easy mounting system. The back panel is designed for convenient mounting using Din
rail which makes the device installation very quick and easy.
The meter has push-in terminals for easy plugging the communication wires and securing
them with the help of lock button. It is equipped with robust front panel display screen and
ATTENTION: Electrical Hazard!
• Avoid Electrical Shock while making the connections using push-in terminals.
• Always open or disconnect the monitored circuit from power-distribution system (or
service) of building before installation or maintenance of the communication setup.

Honeywell E-Mon EM3S-V-P-R Specifications

General

Brand	Honeywell
Model	E-Mon EM3S-V-P-R
Category	Measuring Instruments
Language	English
