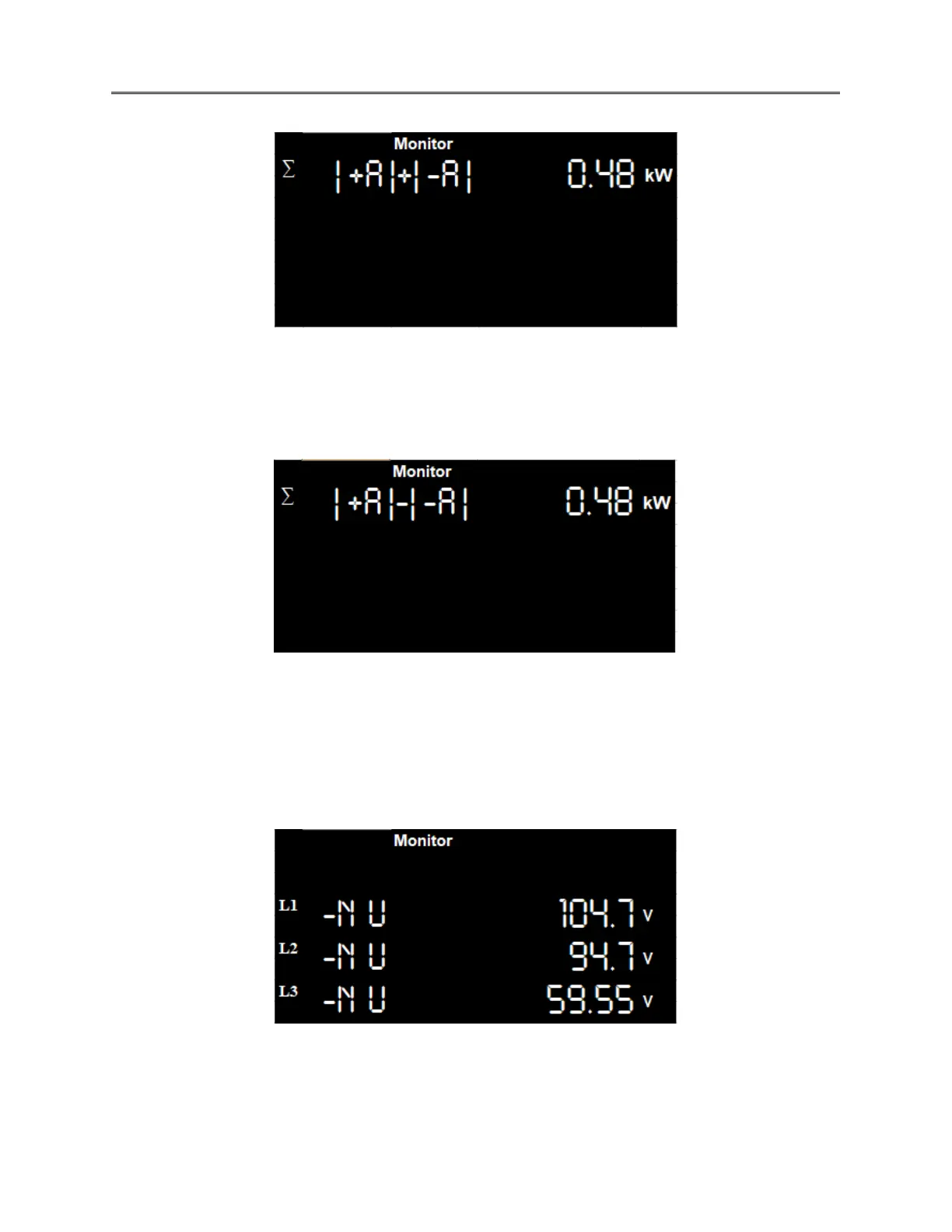

e. Net Active power (|+A|-|-A|) average for the power system. Toggle to the average active
net power option in the ‘Average’ menu by using Up/Down arrow buttons to check the
values.
▪ Provides the cumulative () average net total power reading (|+A|+|-A|).
4. Maximum – Provides the Maximum values for voltage and current for the power system.
Toggle through the Monitoring menu options to highlight Max option and press SET to
check the values.
a. Line to Neutral voltage – Toggle through the Max menu items to check the L-N values.
Press SET button to go back to the main menu option.
▪ Displays the maximum line (L1, L2, L3) to neutral (-N) voltage for each phase.
b. Line to line voltage – Toggle through the Max menu items, use the up/down navigation
button to scroll through values. Press SET button to go back to the main menu option.
▪ Displays the maximum line to Line (L1-L2, L2-L3, L3-L1) voltage for each phase.
