Honeywell equIP Series - Closing the Camera; How to Install the Camera; Sunshield Mounting

Instruction manual - English - EN
7Document 800-23093 Rev. A
6.9 Closing the camera
Before closing the camera, re-insert the bottom
orientating the slide according to the type of
installation.
Close the camera, paying attention not to damage
the gasket. Make sure that the sealing ring is
correctly tted in its position.
Pay attention to the xing. Tightening
torque: 4Nm.
6.10 How to install the camera
Before closing, ensure you have correctly orientated
the slide inside the camera based on the type of
installation.

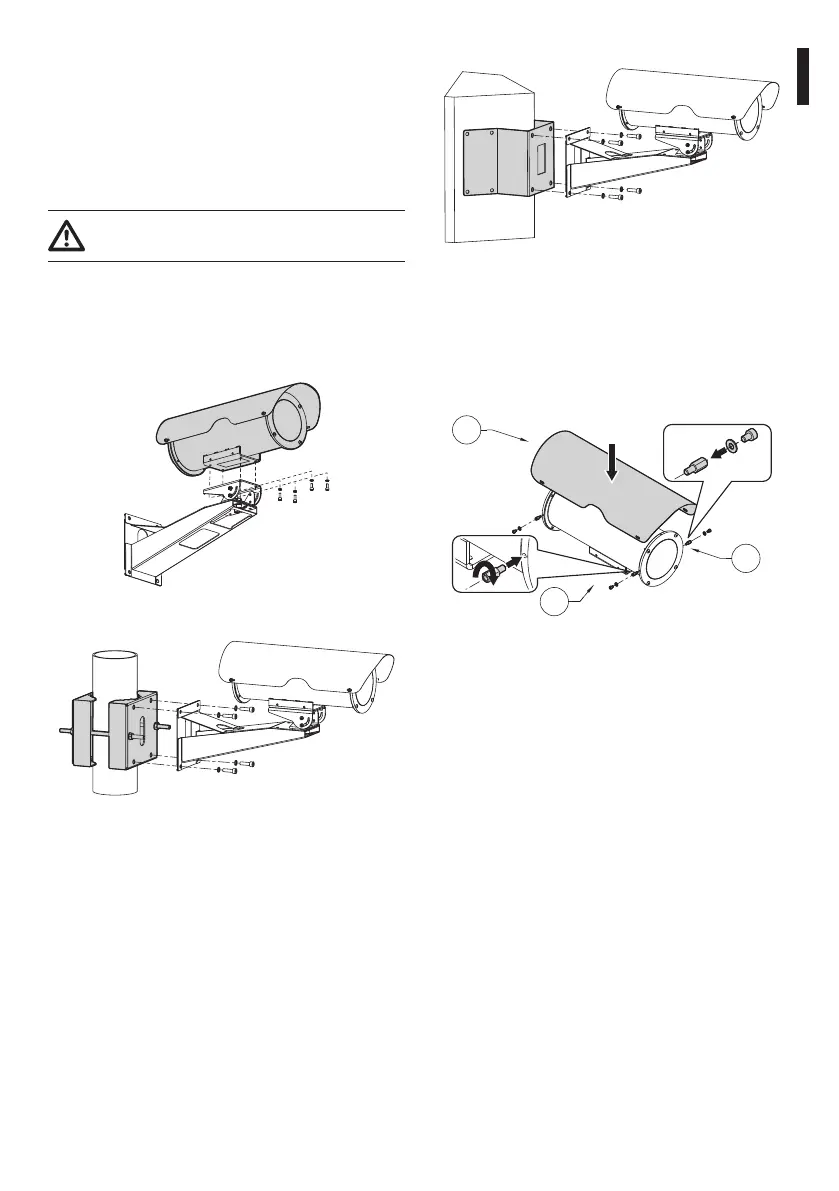

Fig. 6 Bracket mounting.
Fig. 7 Fixing with pole mount.
Fig. 8 Fixing with corner adapter.
6.10.1 Sunshield mounting
Screw the equipped exagonal spacers on the anges
of the housing (01). Position the sunshield on the
housing (02) and x it on the spacers with the
equipped screws (03).
01
03
02
Fig. 9
