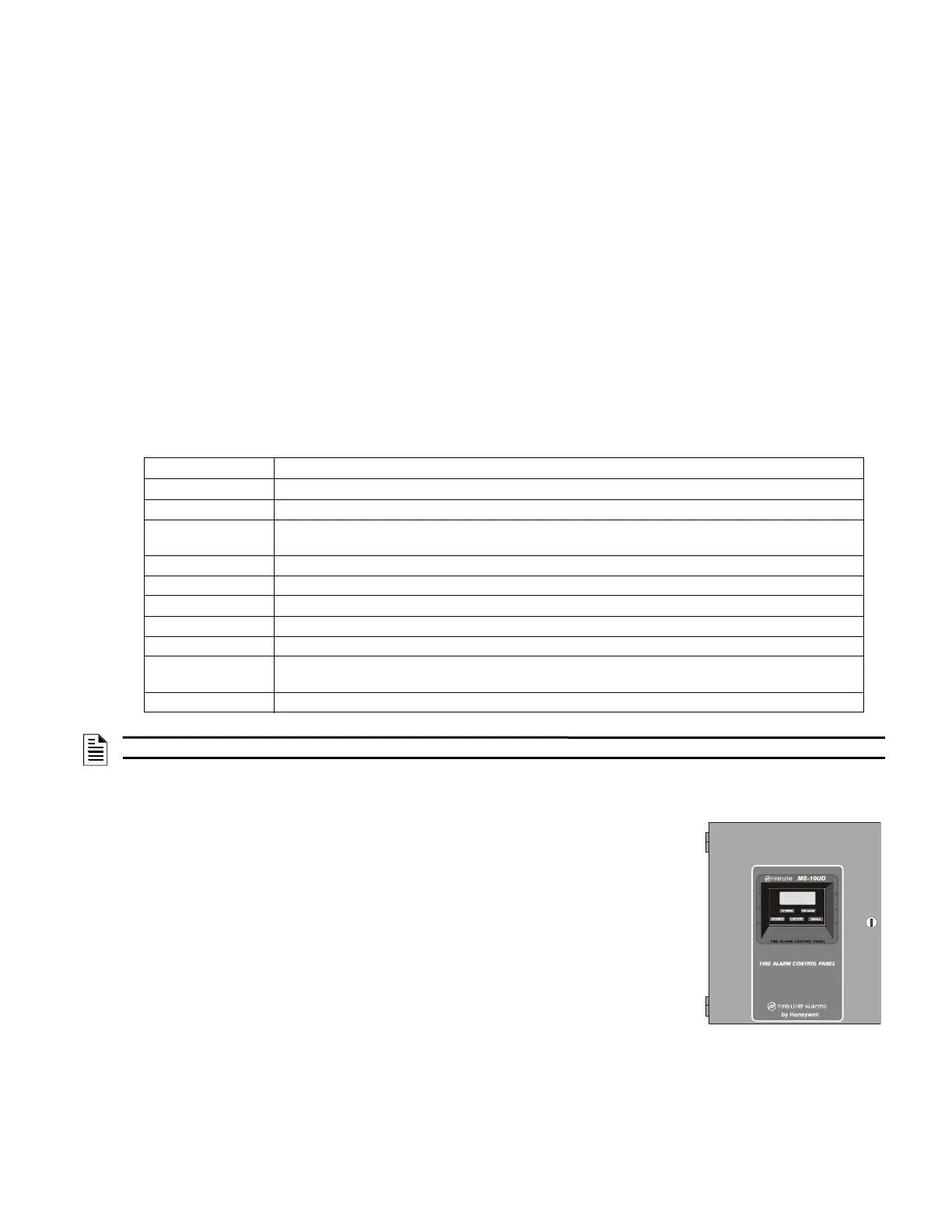

12 MS-5UD & MS-10UD Series Manual — P/N 52626:C7 6/12/2018
Section 1: Product Description
The MS-5UD is a five zone FACP (Fire Alarm Control Panel) and the MS-10UD is a ten zone FACP. The information in this manual
refers to both the MS-5UD and MS-10UD unless otherwise specified. The combination control and digital communicator panels provide
reliable fire signaling protection for small to medium sized commercial, industrial and institutional buildings. The FACP is compatible
with System Sensor’s i
3
detectors which are conventional smoke detectors that can transmit a maintenance trouble signal to the FACP
indicating the need for cleaning and a supervisory ‘freeze’ signal when the ambient temperature falls below the detector rating of
approximately 45
o
F (refer to System Sensor i
3
Installation and Maintenance Instructions). In addition, the control panel is compatible
with conventional input devices such as two-wire smoke detectors, four-wire smoke detectors, pull stations, waterflow devices, tamper
switches and other normally-open contact devices. Refer to the Fire•Lite Device Compatibility Document for a complete listing of com-
patible devices.
Outputs include four NACs (Notification Appliance Circuits), three programmable Form-C relays (factory programmed for Alarm,
Trouble and Supervisory) and 24 VDC special application resettable and nonresettable power outputs. The FACP supervises all wiring,
AC voltage, battery level and telephone line integrity. Available accessories include local and remote upload/download software, remote
annunciators and reverse polarity/city box transmitter.
The integral DACT transmits system status (alarms, troubles, AC loss, etc.) to a Central Station via the public switched telephone net-
work. It also allows remote programming or interrogation of the control panel using the PS-Tools Upload/Download utility via the public
switched telephone network. Local programming interrogation is also possible using the PS-Tools and the USB port on the FACP. Any
personal computer with Windows
®
XP or newer, compatible modem with a speed of 2400 baud and PS-Tools may serve as a Service
Terminal. This allows download of the entire program or upload of the entire program, history file, walktest data and current status.
Activation of a compatible smoke detector or any normally-open fire alarm initiating device will activate audible and visual signaling
devices, illuminate an indicating LED, display alarm information on the panel’s LCD, sound the piezo sounder at the FACP, activate the
FACP alarm relay and operate an optional module used to notify a remote station or initiate an auxiliary control function.
The following versions of the MS-5UD and MS-10UD are available:
1.1 Product Features
• Built-in DACT (Digital Alarm Communicator/Transmitter)
• Style B (Class B) IDC (Initiating Device Circuit)
 MS-5UD -
five programmable IDCs
 MS-10UD - ten programmable IDCs
• Four Style Y (Class B) NAC (Notification Appliance Circuit) - special application power
• Three programmable Form-C relays
• Built-in Programmer
• Touchtone/Rotary dialing
• Programmable Make/Break Ratio
• Optional Dress Panel: DP-51050
• A modified Dress Panel is provided standard with Canadian models: includes an ANN-
LED
Annunciator mod
ule
• Optional Trim Ring TR-CE (red) for semi-flush mounting the cabinet
• ANN-BUS for connection to
optional:
 ANN-80 Remote
LCD Annunciator
 ANN-I/O LED Driver
 ANN-S/PG Printer Module
 ANN-RLY Relay Module
 ANN-LED Annunciator Module
FACP Version Description
MS-5UD-3 Five Zone Panel: 120 VAC with FLPS-3 power supply providing 3.0 amps total 24 VDC output current
MS-5UD-7 Five Zone Panel: 120 VAC with FLPS-7 power supply providing 7.0 amps total 24 VDC output current
MS-5UD-7C Five Zone Panel: 120 VAC with FLPS-7 power supply providing 7.0 amps total 24 VDC output current.
Includes built-in ANN-LED Annunciator. This panel is approved for Canadian applications
MS-5UD-3E Five Zone Panel: 240 VAC with FLPS-3 power supply providing 3.0 amps total 24 VDC output current
MS-5UD-7E Five Zone Panel: 240 VAC with FLPS-7 power supply providing 7.0 amps total 24 VDC output current
MS-10UD-3 Ten Zone Panel: 120 VAC with FLPS-3 power supply providing 3.0 amps total 24 VDC output current
MS-10UD-3E Ten Zone Panel: 240 VAC with FLPS-3 power supply providing 3.0 amps total 24 VDC output current
MS-10UD-7 Ten Zone Panel: 120 VAC with FLPS-7 power supply providing 7.0 amps total 24 VDC output current
MS-10UD-7C Ten Zone Panel: 120 VAC with FLPS-7 power supply providing 7.0 amps total 24 VDC output current.
Includes built-in ANN-LED Annunciator. This panel is approved for Canadian applications.
MS-10UD-7E Ten Zone Panel: 240 VAC with FLPS-7 power supply providing 7.0 amps total 24 VDC output current
NOTE: Unless otherwise specified, the information in this manual applies to all versions of the panels.
