MS-5UD & MS-10UD Series Manual — P/N 52626:C7 6/12/2018 47
ANN-BUS Devices Installation
Mounting/Installation
The ANN-RLY relay module can be mounted inside the FACP main circuit board chassis or inside the ROME Series enclosure. Refer to
the ANN-RLY Installation Document #53033 for instructions on chassis mounting or to the ROME Series Installation Document #53530
for mounting in the separate backbox.
mounting holes
mounting hooks through
mounting slots
grounding wire
ANN-RLY
ANN-MBRLY
mounting bracket
mounting holes
mounting holes
FACP Backbox Installation
using ANN-MBRLY mounting bracket
FACP Chassis Installation
mounting holes
mounting holes
ANN-RLY on ANN-
MBRLY mounting
bracket
ROME Series Installation
using ANN-MBRLY mounting bracket

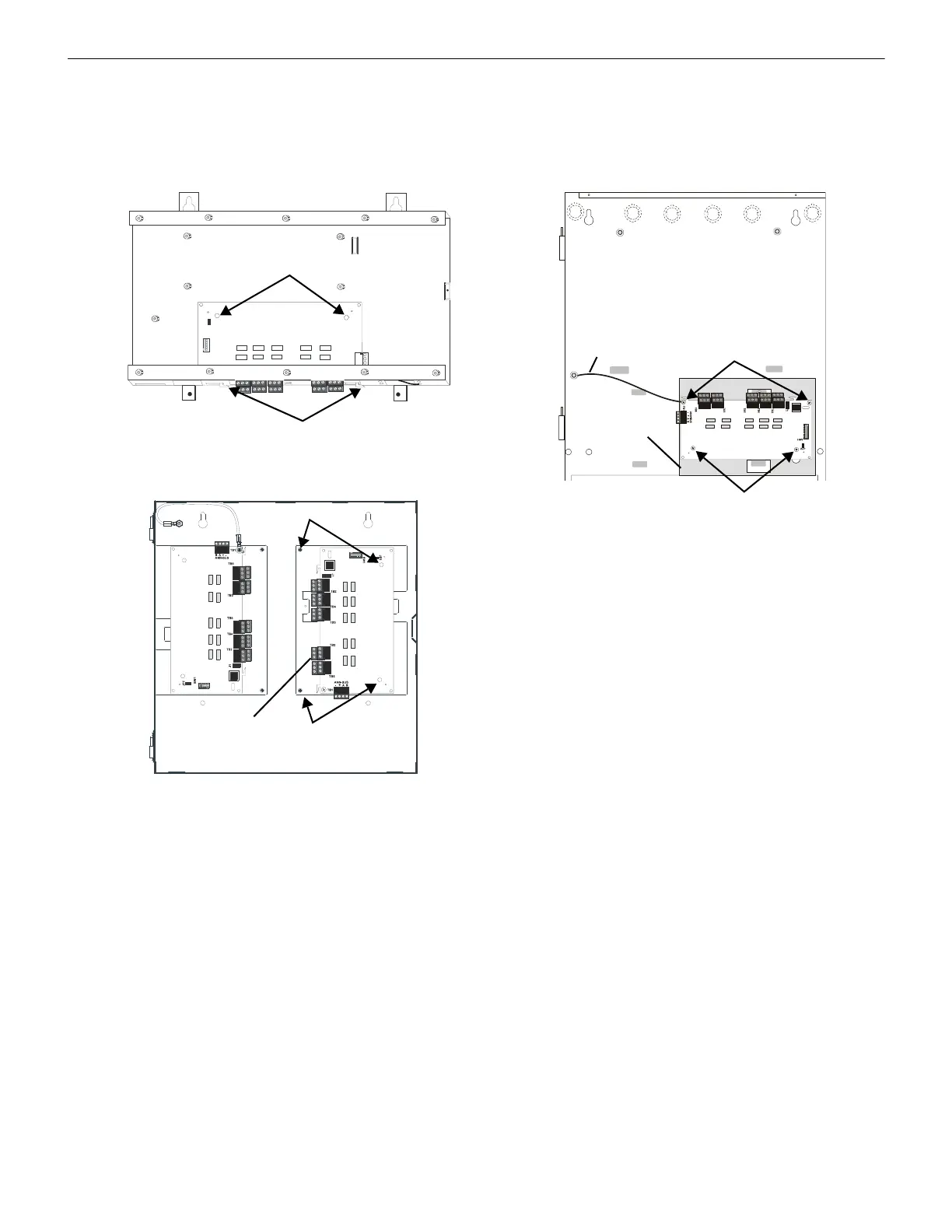

Figure 2.28 ANN-RLY Mounting Options
