46 MS-5UD & MS-10UD Series Manual — P/N 52626:C7 6/12/2018
Installation ANN-BUS Devices
ANN-LED Board Layout and Connection to FACP
Figure 2.27 illustrates the ANN-LED board wiring connections to the FACP.
2.8.7 ANN-RLY Relay Module
The ANN-RLY relay module provides 10 programmable Form-C relays when used with a compatible FACP.
Specifications
• Operating Voltage: 24 VDC
• Max. Current:
 Alarm: 75 mA
 Standby: 15 mA
• Relay Contact Ratings:
 2 amps @ 30 VDC (resistive)
 0.5 amps @ 30 VAC (resistive)
• Operating Temperature: 32
o
F to 120
o
F (0
o
C to 49
o
C)
• For indoor use in a dry location only

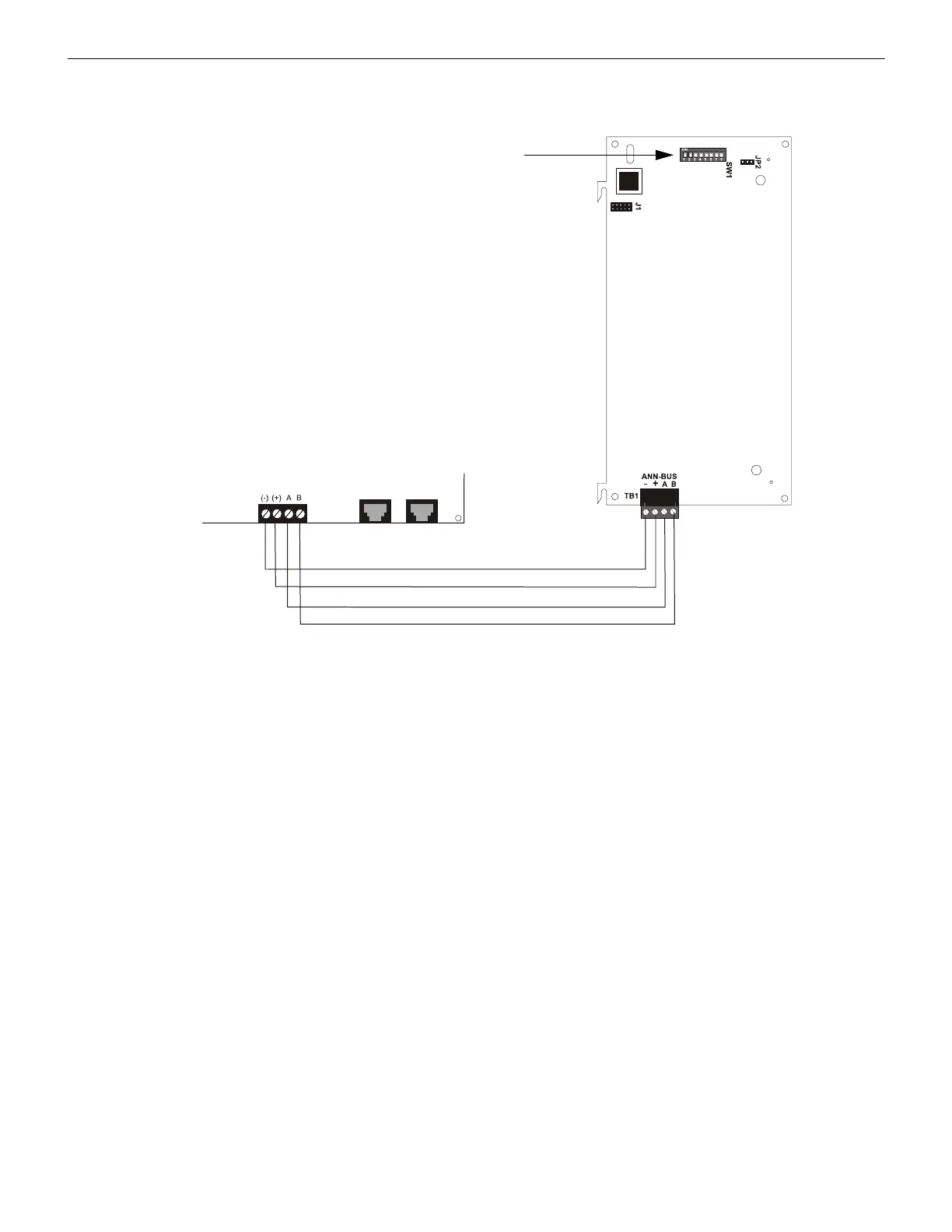

Figure 2.27 ANN-LED Board Layout and Connection to FACP
FACP
ANN-LED
Primary ANN-BUS
+24 VDC
-24 VDC
ANN-BUS (ID#)
Address DIP switch
TB3
annledto5x.wmf
