124 MS-5UD & MS-10UD Series Manual — P/N 52626:C7 6/12/2018
Appendix C: FACP with Keltron

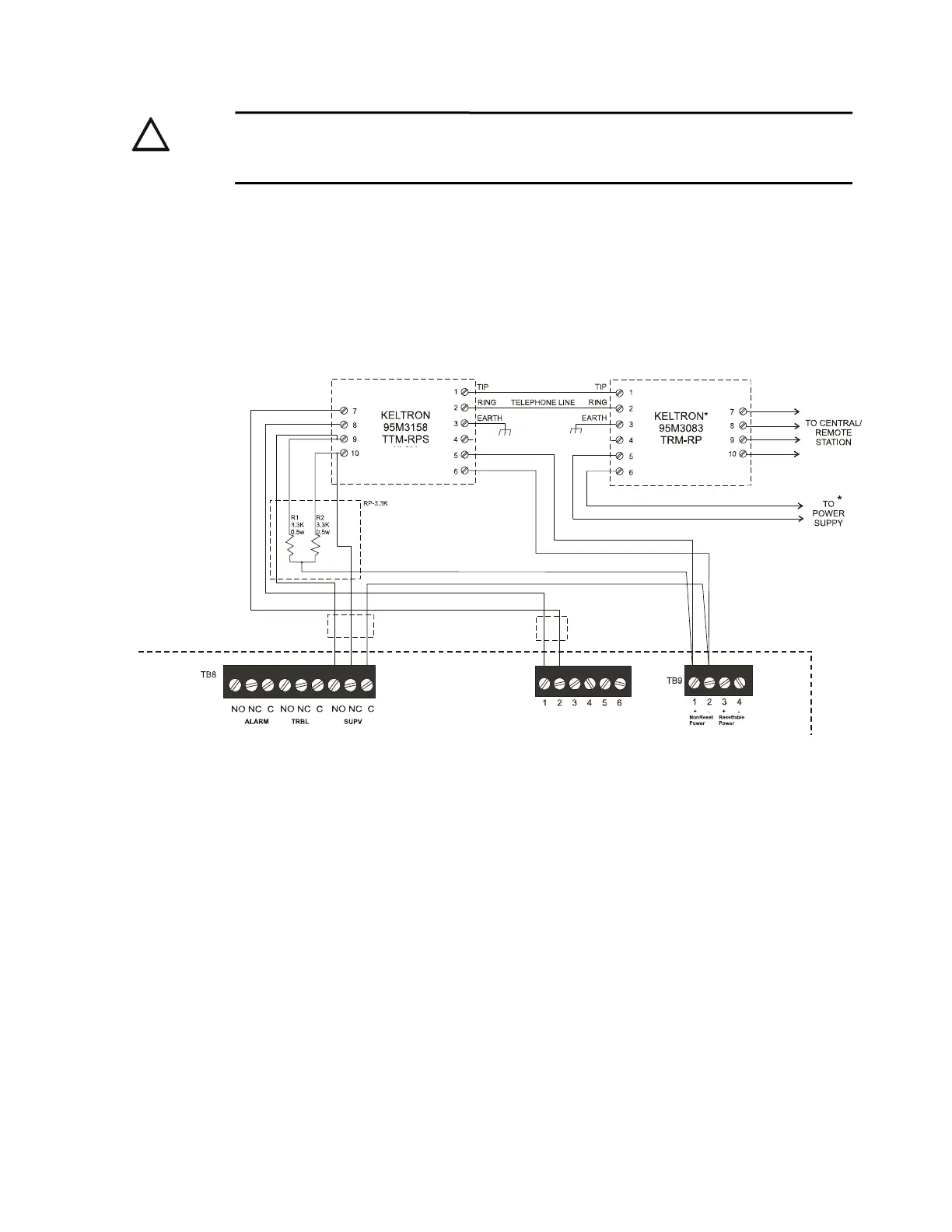

The following figure illustrates the connections between the FACP and Keltron Receiver/Transmitter.
IMPORTANT! All connections between the FACP and Keltron modules must be made within 20 feet and enclosed within conduit or
equivalently protected against mechanical injury.
!
P
CAUTION: POSSIBLE EQUIPMENT DAMAGE
FOR REASONS OF WIRING DIAGRAM CLARITY, TERMINAL DESIGNATIONS OF KELTRON
MODULES ARE NOT SHOWN IN ACTUAL ORDER. FOLLOW KELTRON MANUAL AND MODULE
MARKINGS FOR EXACT TERMINAL LOCATIONS TO PREVENT SEVERE MODULE DAMAGE!
Fire Alarm Control Panel
(terminal blocks are not shown in their
actual positions in order to clarify wiring
connections)
Keltron 95M3158 TTM-RPS
1. Terminals 7 and 8: Remote station alarm/trouble inputs.
2. Terminals 9 and 10: Sprinkler supervisory input.
Note: Cut TBL jumper on 4XTMF module to send
alarm/trouble signal from the same pair or terminals.
Alarm/Trouble SignalSprinkler Supervisory Signal
*Note: For more
information, refer to the
Keltron manual.
4XTMF Module
Figure C.1 Keltron Wiring
UL-Listed
UL-Listed
