MS-5UD & MS-10UD Series Manual — P/N 52626:C7 6/12/2018 37
ANN-BUS Devices Installation
Wiring Configuration
Figure 2.19 illustrates the wiring between the FACP’s Primary ANN-BUS and ANN-BUS devices.
illustrates the wiring between the FACP’s Secondary ANN-BUS, via the ANN-SEC option card, and ANN-BUS devices.

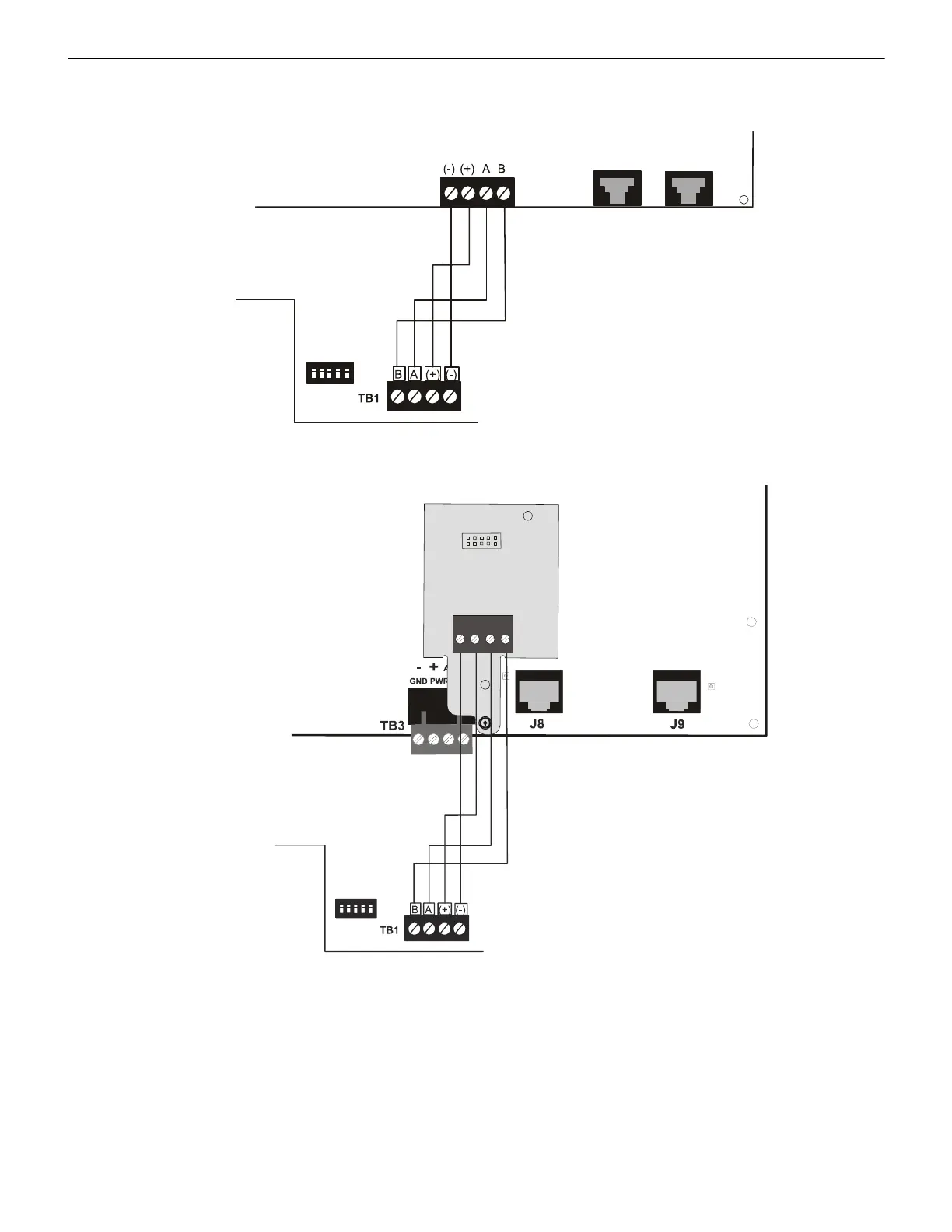

Figure 2.19 FACP wiring to ANN-BUS Device on Primary ANN-BUS
FACP
ANN-80
ANN-BUS and power wiring are
supervised and power-limited
TB3
Primary ANN-BUS
ann80to5x.wmf
TB1
J1
- + A B
ANN-SEC
Figure 2.20 FACP wiring to ANN-BUS Device on Secondary ANN-BUS via ANN-SEC
FACP
ANN-80
ANN-BUS and power wiring are
supervised and power-limited
Secondary ANN-BUS
ann80to5x2.wmf
