MS-5UD & MS-10UD Series Manual — P/N 52626:C7 6/12/2018 45
ANN-BUS Devices Installation

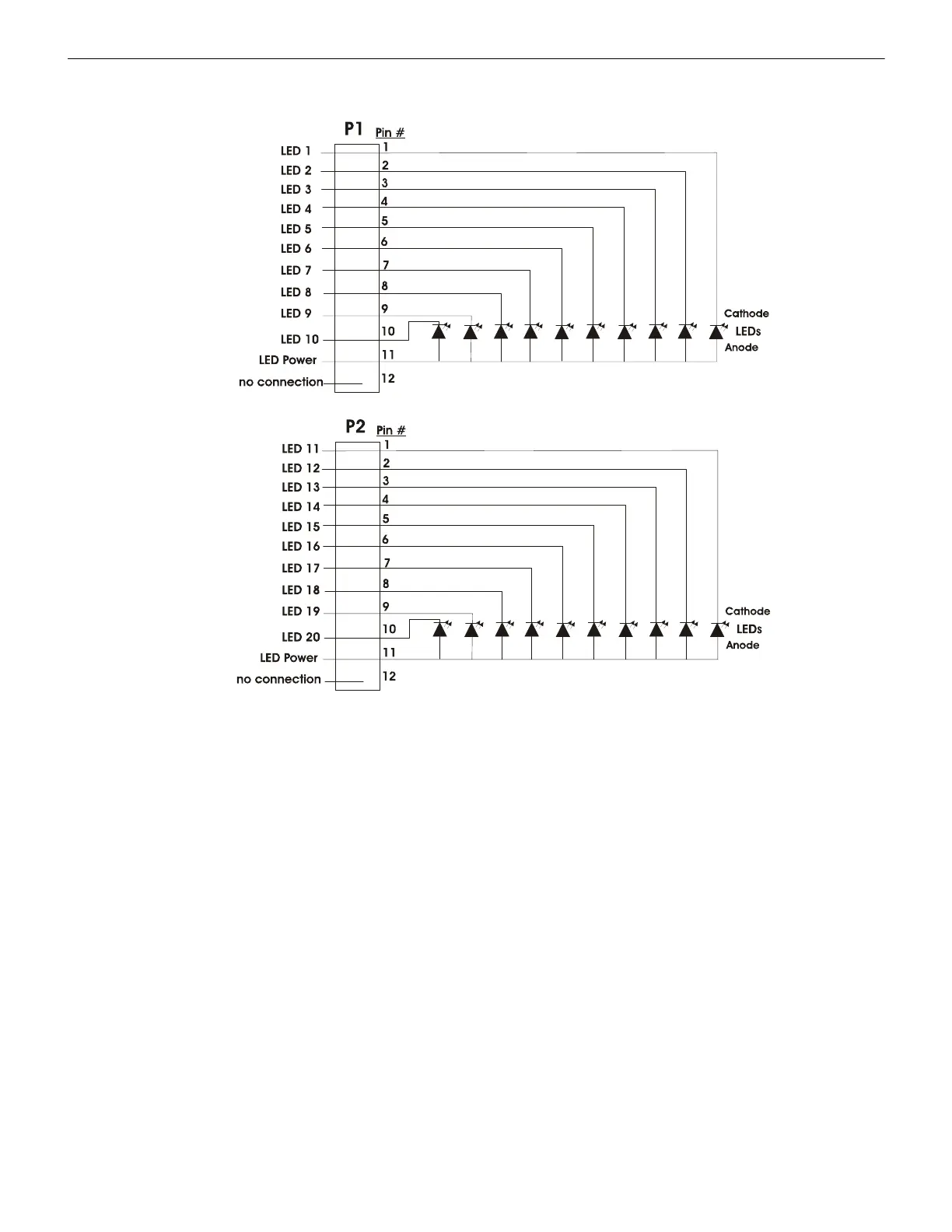

The LEDs are wired as illustrated in Figure 2.26. Note that the illustration depicts only connectors P1 and P2. Wiring is identical for P3
(LEDs 21-30) and P4 (LEDs 31-40).
2.8.6 ANN-LED Annunciator Module
The ANN-LED annunciator module provides LED annunciation of general system faults and input zones when used with a compatible
FACP. The ANN-LED module provides alarm (red), trouble (yellow) and supervisory (yellow) indication for up to ten input zones.
Canadian Applications: The ANN-LED is supplied standard with the MS-5UD-7C and MS-10UD-7C models. It is mounted to the dress
panel included with these models.
Specifications
• Max. ANN-BUS Voltage: 24 VDC
• Max. Current:
 Alarm: 68 mA
 Standby: 28 mA
• Operating Temperature: 32
o
F to 120
o
F (0
o
C to 49
o
C)
• For indoor use in a dry location only
Mounting/Installation
Install the ANN-LED Module as described in the documentation supplied with the annunciator.
Figure 2.26 ANN-I/O Board Layout
ann-ioleds.wmf
