122 MS-5UD & MS-10UD Series Manual — P/N 52626:C7 6/12/2018
NFPA Standard-Specific Requirements
NFPA 72 Proprietary Protective Signaling Systems

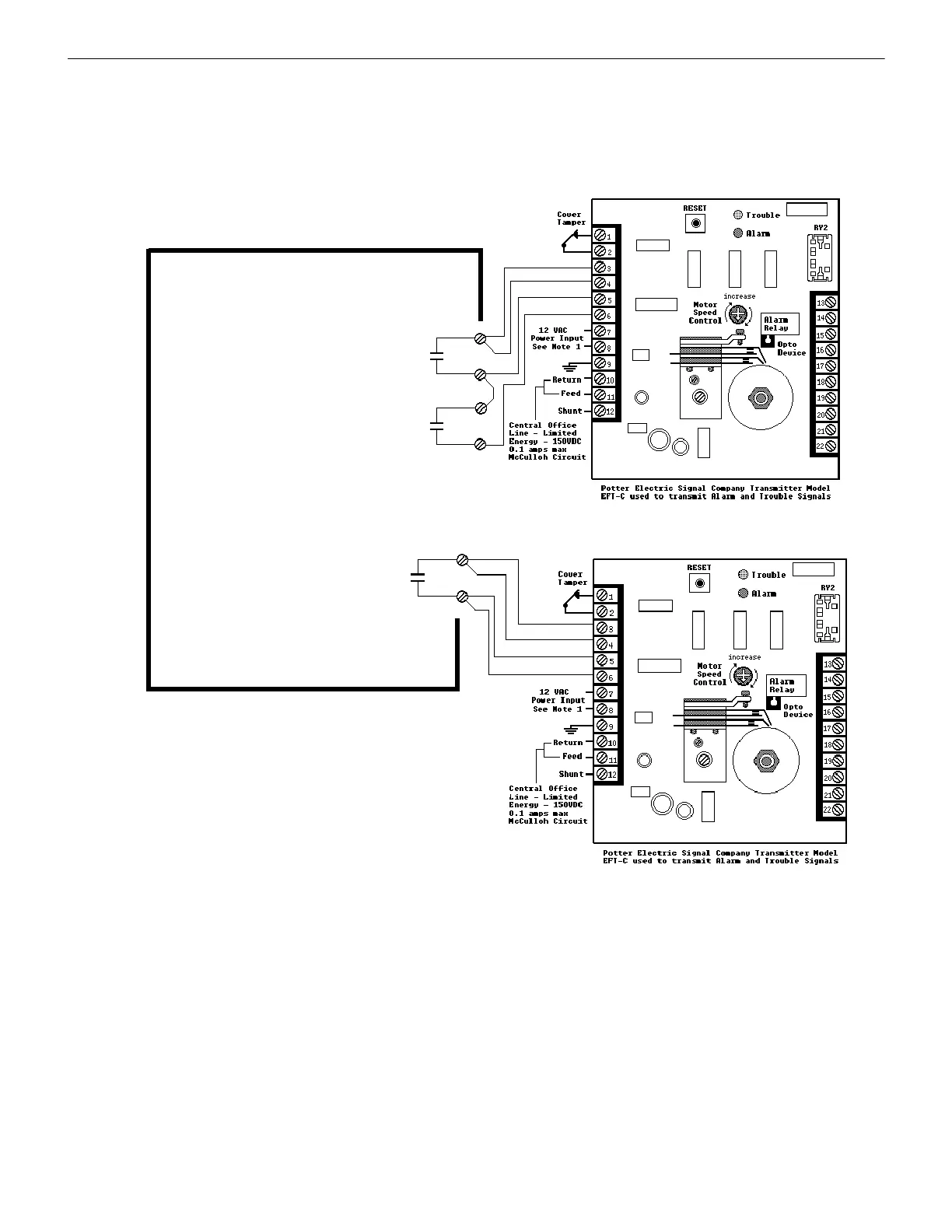

Figure B.4 Proprietary Protective Signaling System
Form-C relay contact programmed to
activate on Supervisory condition.
Form-C Trouble contact which will
automatically activate on any Trouble
condition.
Form-C Alarm contact programmed to
activate on General Alarm.
FACP Main Board
Fire Alarm Control Panel
Notes:
1. Connection between the MS-5UD/MS-10UD and
the transmitter are supervised by the transmitter.
2. This MS-5UD/MS-10UD Transmitter arrangement
can be employed for NFPA 72 Proprietary Protective
Signaling System.
3. Potter Electric Model EFT-C has not been tested for
UL 864 9th Edition and is for use in retrofit
applications only.
