ANN-BUS Audio Panel Installation
The only connection between the MS-5UD/10UD and the ACC-25/50ZS/T audio panel is a pair of communication wires connected
between the A/B terminals on TB3 of the FACP and TB1 terminals 2 & 3 of the ACC-ZPMK module on the ACC-25/50ZS/T.
A (+)
B (-)
FACP
ACC-ZPMK
on ACC-25/50ZST
-
+

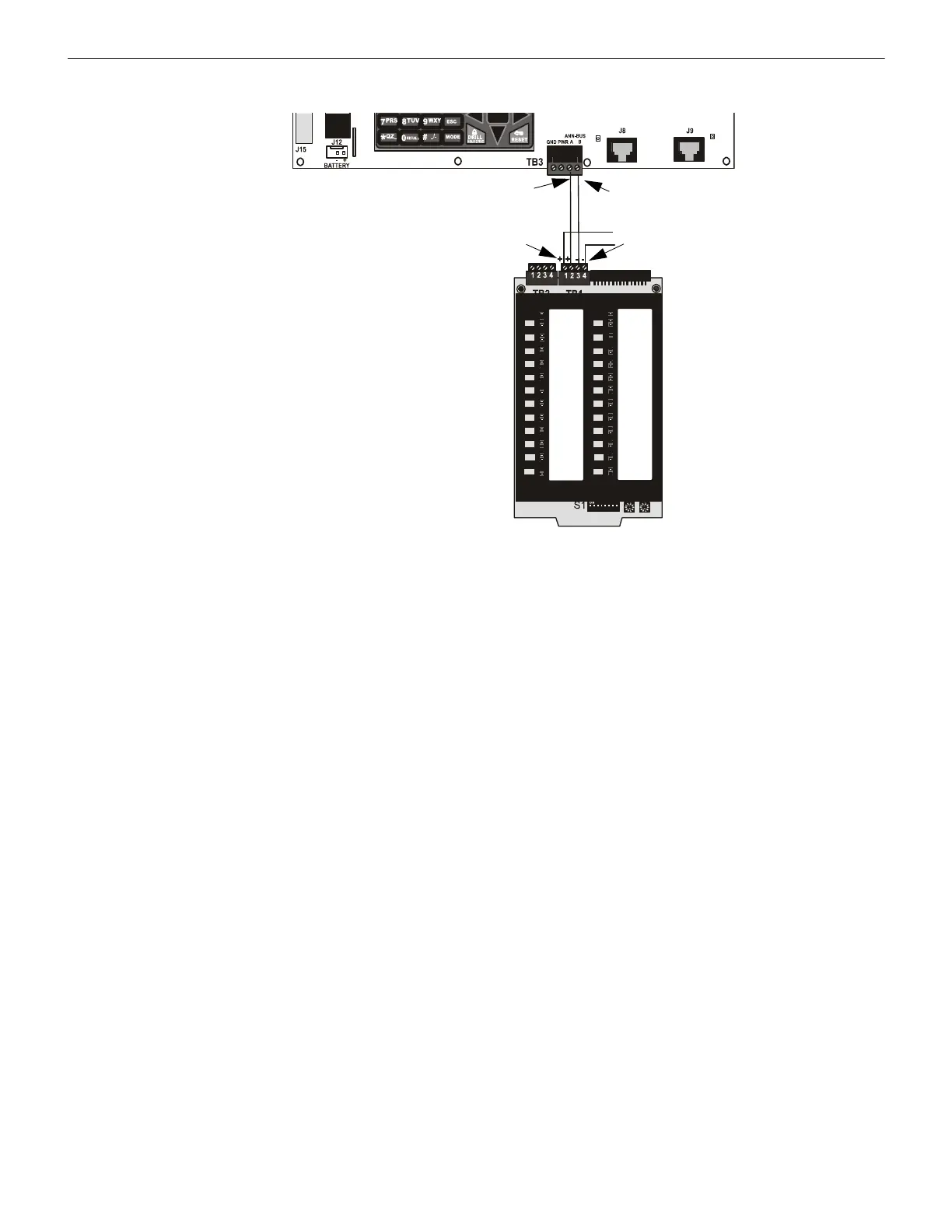

Figure 2.30 FACP Connection to ACC-25/50ZS/T Audio Panel
Primary
ANN-BUS
acczpmto5x.wmf
