Performance Series Network Video Recorder User Guide
90

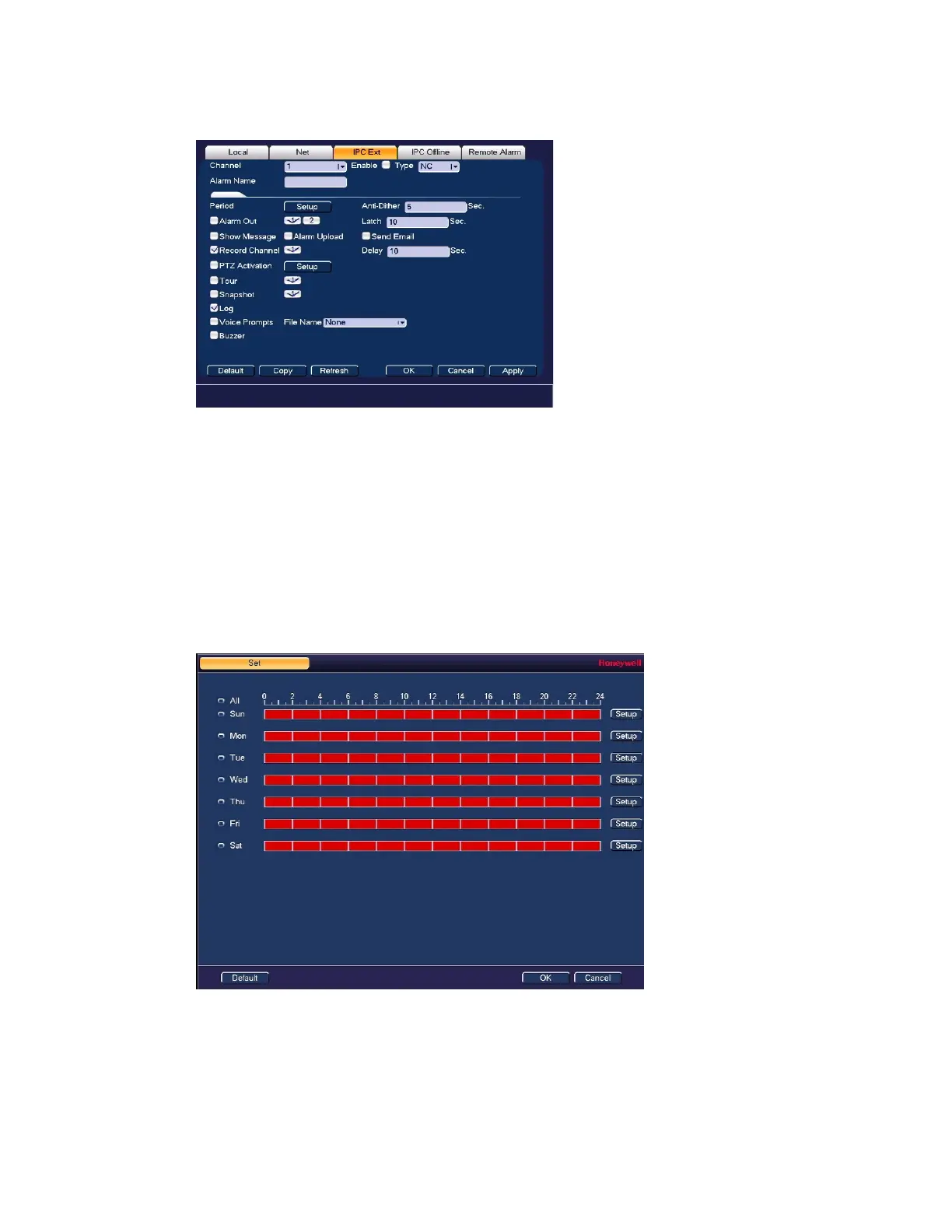

Figure 8-13 IPC External Alarm Configuration Tab
2. On the IPC Ext tab, select the channel to configure the external alarm settings from the
drop-down menu.
3. Select the Enable check box to enable alarm detection of the selected alarm input.
4. In the Type box, select the alarm input type: NC (Normal Close) or NO (Normal Open).
5. Enter a name for the alarm in the Alarm Name field.
To set up alarm input detection periods
1. On the Alarm tab, next to Period, click Set. The Set window opens.
Figure 8-14 Alarm Period Setup
2. By default, when alarm detection is enabled, it is active all the time. To modify the periods
when alarm detection is active, on each day’s timeline, click the half-hour blocks when you
want alarm detection for the selected alarm input to be disabled.
3. Alternatively, for the day of the week that you want to configure, click Setup. The Period
window opens.
