Configuring Camera Settings
57
• Outdoor: The white balance threshold is set to outdoor mode. Natural: The white
balance threshold is set to natural mode. Street Lamp: The white balance
threshold is set to street lamp mode.
• Manual: You can manually set the gain for the red/blue channel. The value
ranges from 0 to 100.
3. Click Apply to save your settings.
4. If you want to save your settings and exit the SETTING menu, click OK.
Configuring Snapshot Settings
1. Go to Main Menu ïƒ Setting ïƒ CAMERA ïƒ Encodeïƒ Snapshot, the following window is
displayed:

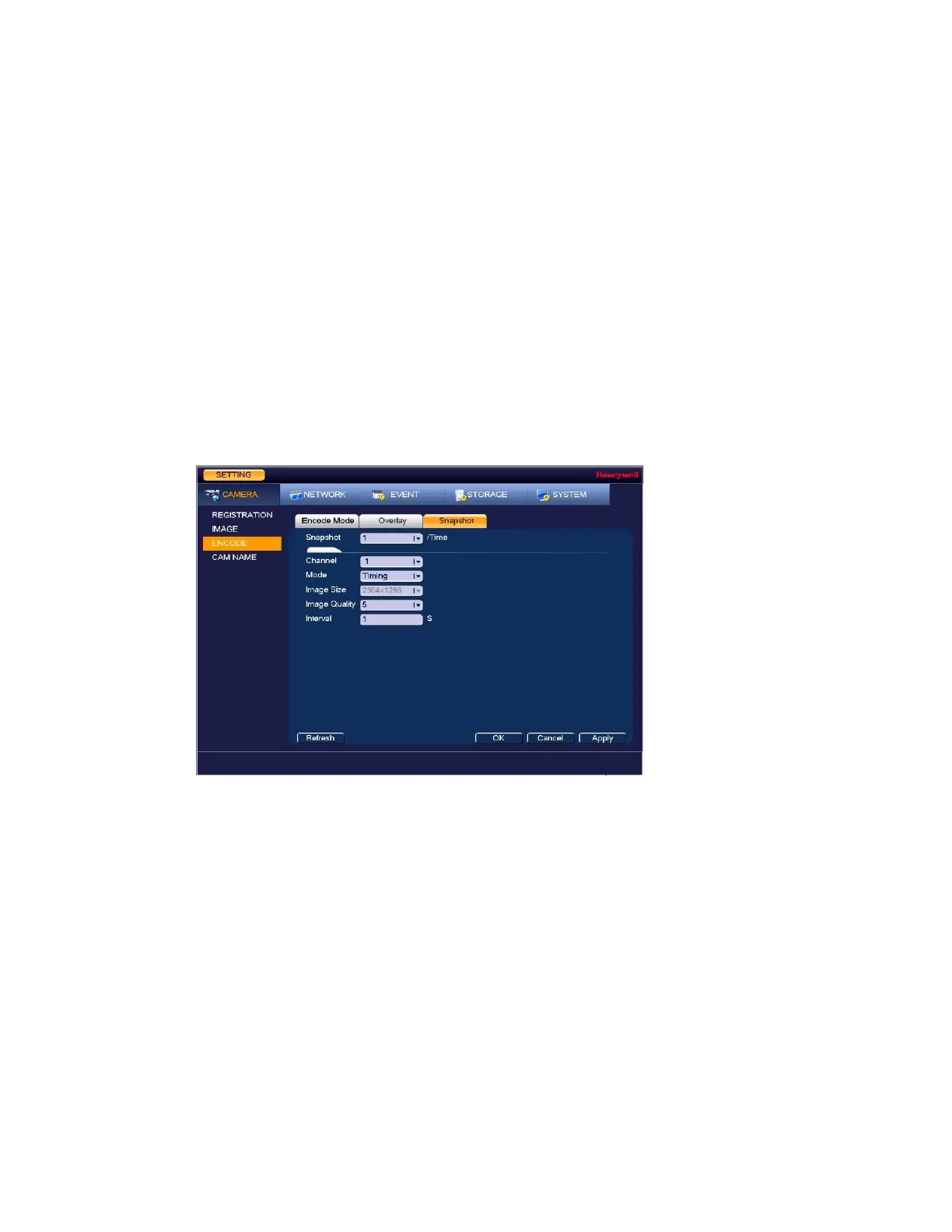

Figure 6-3 Camera Snapshot Settings Tab
2. In the Channel box, select the camera that you want to configure.
Snapshot: Select the maximum number of snapshots that can be taken at a time.
Channel: Select a channel from the drop-down list.
Mode: There are two modes: Timing and Trigger. If you set Timing mode, then you need
to set the snapshot Interval. If you set Trigger mode, then you need to enable snapshots in
Event Settings. Please see To set up motion detection event actions on page 82, for
example.
Image Size: Select a snapshot size.
Image Quality: Select a snapshot quality. Select from 1 to 6, with 6 being the highest
quality setting.
Interval: Set how frequently the snapshot is taken.
3. Click Apply to save your settings.
4. If you want to save your settings and exit the SETTING menu, click OK.
