Performance Series Network Video Recorder User Guide
248

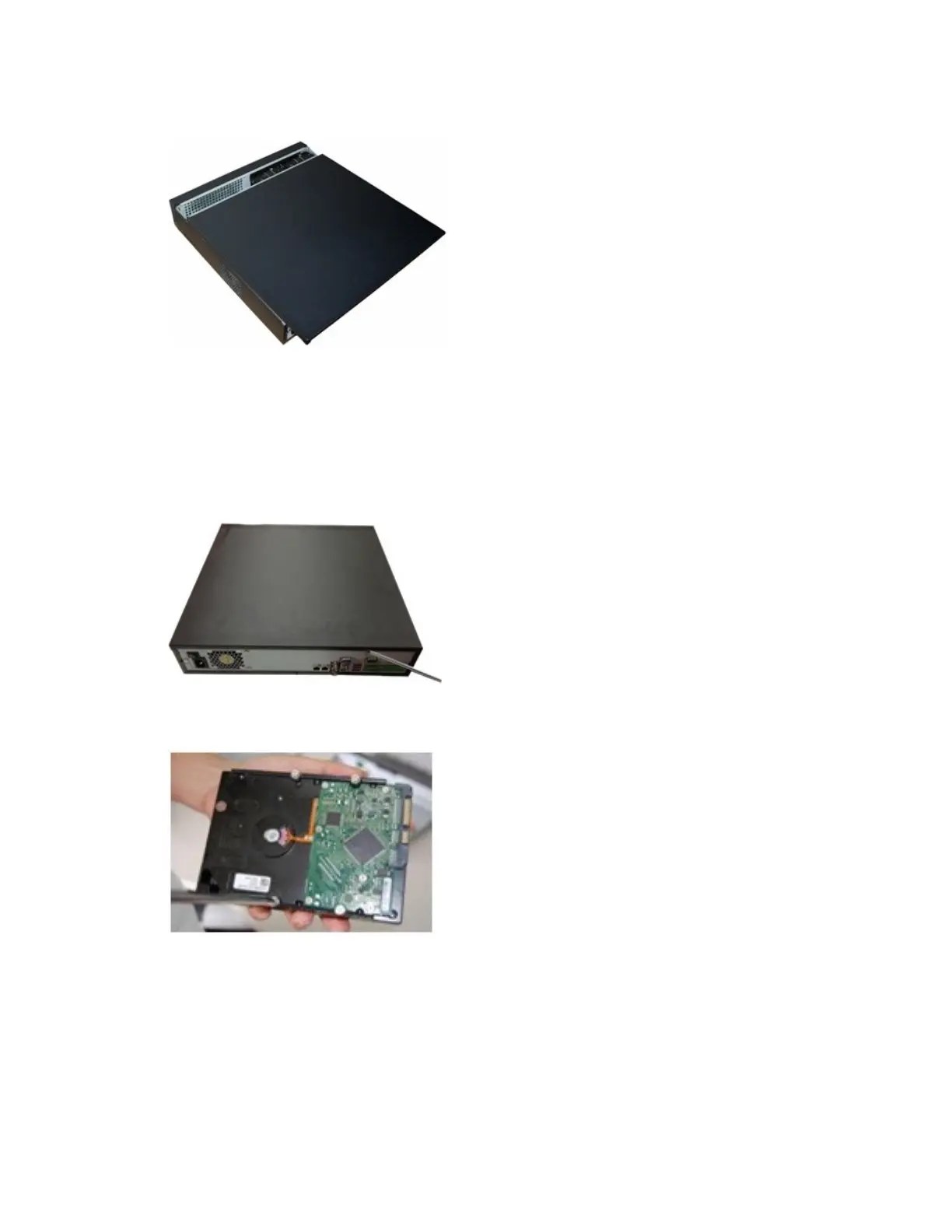

Figure 15-12 Replacing the NVR Cover
8. Secure the NVR cover in place by fixing the screws in the rear panel.
Installing a HDD on HEN163*4/HEN323*4/HEN643*4
1. Loosen the screws on the rear panel of the NVR, remove the front cover, and set it aside.
Figure 15-13 Removing the NVR Cover
2. Loosen four screws on the HDD.
Figure 15-14 Loosening the Four Screws in the HDD Housing
3. Put the HDD on the HDD bracket in the chassis and then align the HDD with the four
holes in the bracket.
