Honeywell HEN322 4 Series - To Set up Motion Detection Event Actions

Performance Series Network Video Recorder User Guide
82

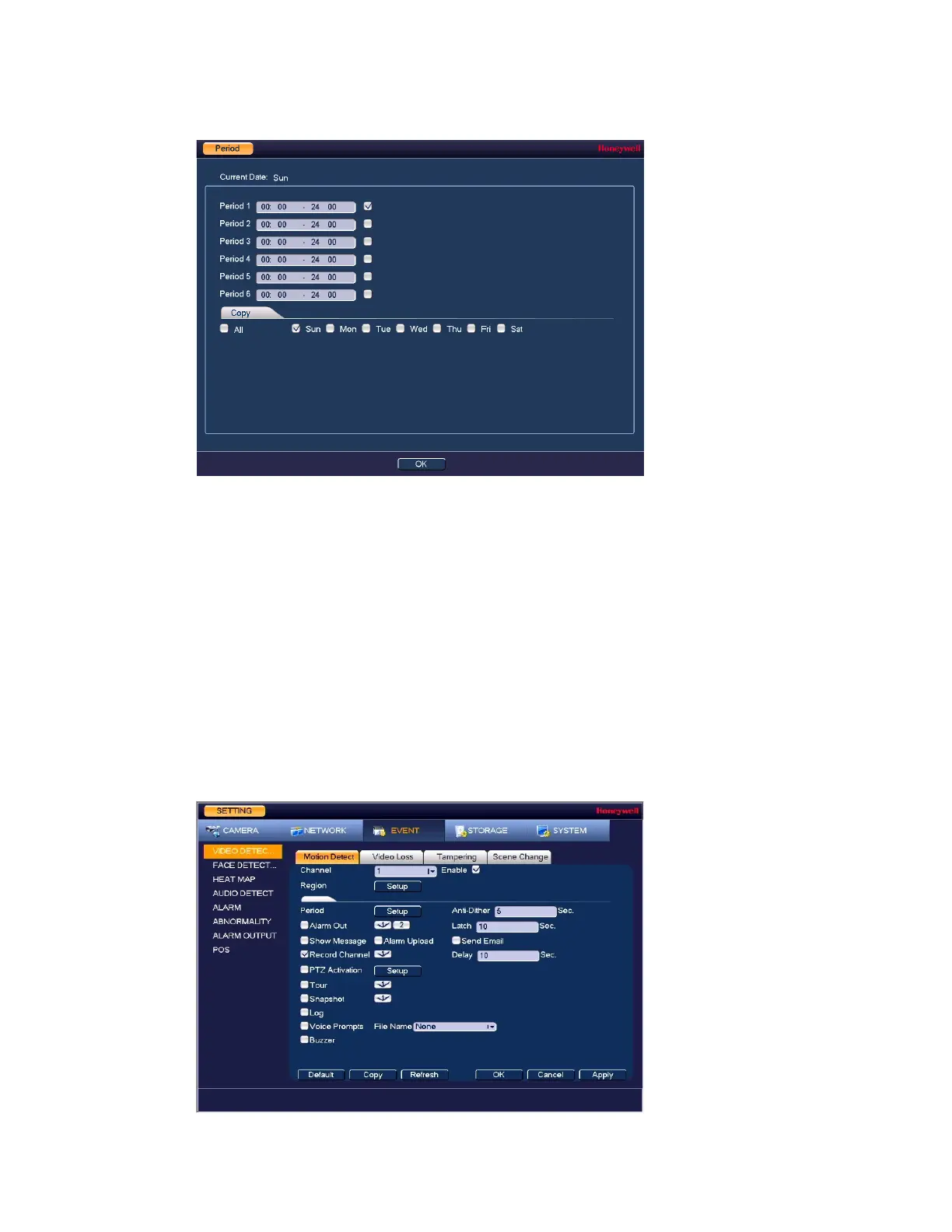

Figure 8-4 Motion Detection Period Configuration Window
Set up to six periods in the day when you want the motion detection settings for the
selected channel to be active.
a. Select the check box next to each configured period to enable it.
b. To copy the settings to additional days, select the appropriate check box(es) under
Copy.
c. Click OK to return to the previous window.
4. After you have finished setting up the motion detection periods, click OK.
To set up motion detection event actions
1. Go to Main Menu  SETTING  EVENT  VIDEO DETECTION  Motion Detection.
Figure 8-5 Motion Detection Configuration Tab
