Honeywell HEN322 4 Series User Manual

Appendix B
249

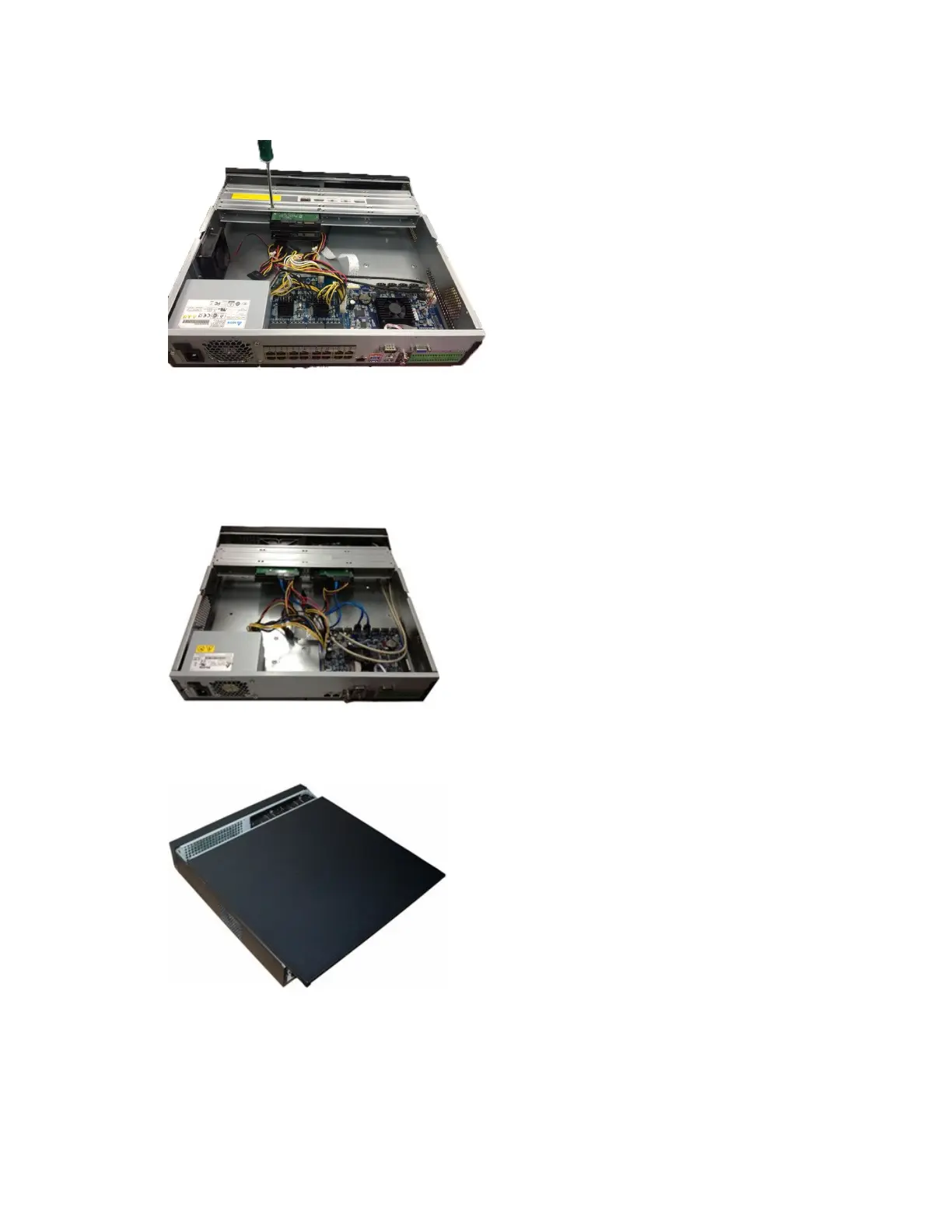

Figure 15-15 Placing the HDD
4. Fasten the screws to firmly attach the HDD to the NVR housing.
5. Connect the HDD data cable to the main board and the HDD port respectively.
6. Loosen the power cable from the chassis and connect another end of the power cable to
the HDD port.
Figure 15-16 Connecting the HDD and the Power Cable
7. Replace the NVR cover.
Figure 15-17 Replacing the NVR Cover
8. Secure the NVR cover in place by fixing the screws in the rear panel.
Installing an Additional HDD
