Appendix B
247

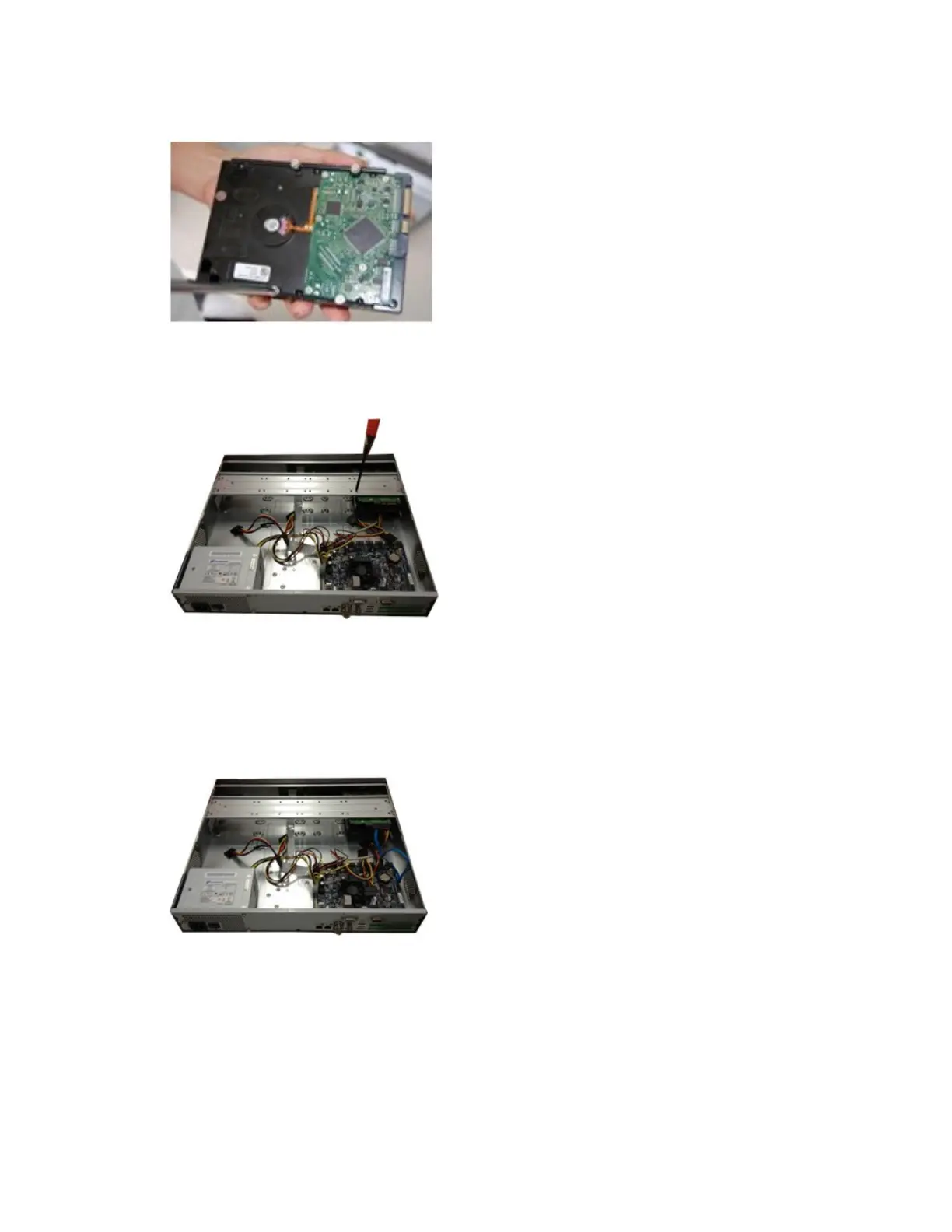

Figure 15-9 Loosening the Four Screws in the HDD Housing
3. Put the HDD on the HDD bracket in the chassis and then align the HDD with the four
holes in the bracket.
Figure 15-10 Placing the HDD
4. Fasten the screws to firmly attach the HDD to the NVR housing.
5. Connect the HDD data cable to the main board and the HDD port respectively.
6. Loosen the power cable from the chassis and connect another end of the power cable to
the HDD port.
Figure 15-11 Connecting the HDD and the Power Cable
7. Replace the NVR cover.
