Impact / Impact Pro / Impact Pro IR Operating Instructions
15
1�2 Product Overview
1
2
3
4
5
6
7
8
9

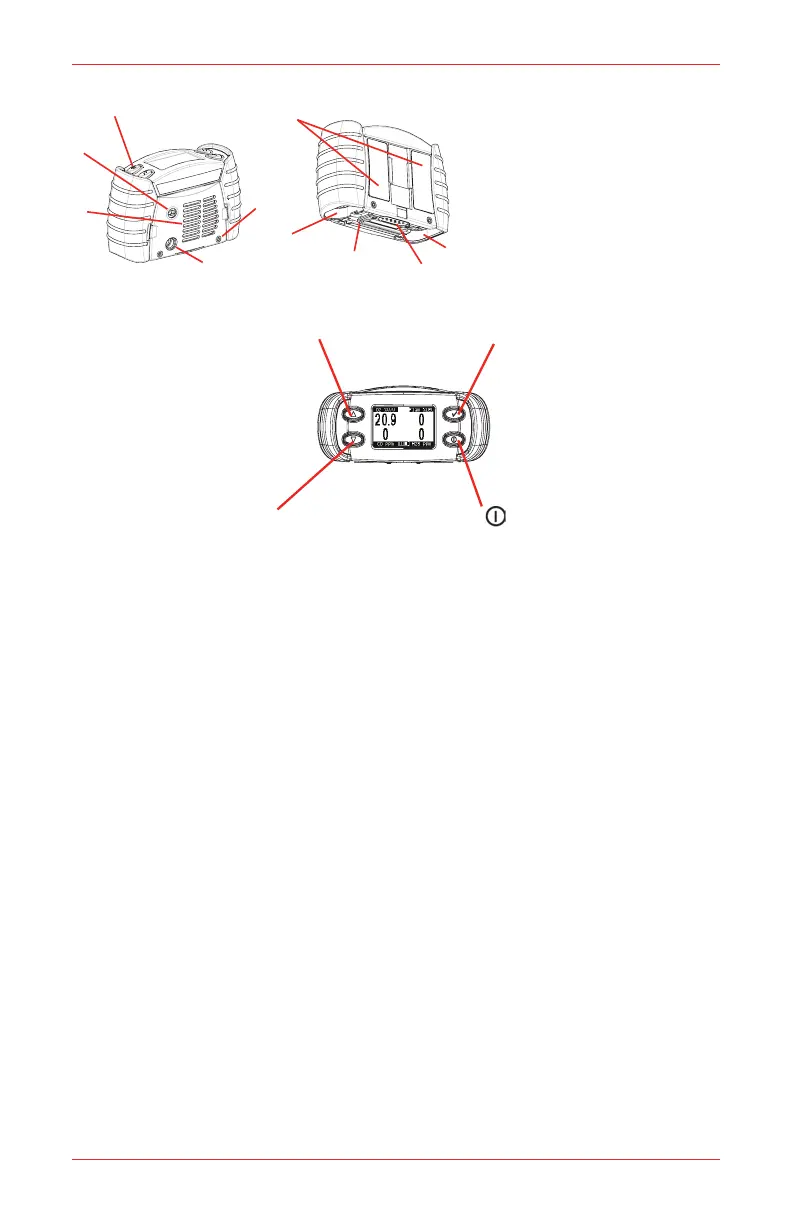

1. Buttons
2. Pump Aperture
3. Cartridge and Filter Cover Grille
4. Audible Aperture
5. Cover Grille Screws
6. Equipment and Certification Label
7. Battery Compartments
8. Tool
9. Data Connector
7
On the top of the unit are four buttons (1). Their functions are summarized below:
(yellow) Moves up through
menu screens, and used to
increase values
(green) Used as ‘OK’ in
menus. Accepts alarms,
and resets peak values
(yellow) Moves down
through menu screens and
used to decrease values
(red) On/Off button. Also
used as ‘change’ in menus
Pressing any key will automatically activate the display backlight for 10 seconds.
There are currently two types of instrument available - Impact and Impact Pro. The
main differences between the two instruments is that the Impact Pro supports a
range of Serviceable Cartridges (see Section 8.1 Serviceable Cartridges). The
other detail differences are the addition of an internal sample pump, vibrating alarm
and Safelink feature.
The instrument can be further personalized by use of the Impact Configuration Utility
(ICU) PC software, which can be purchased separately as part of the Data Logging
Kit. This allows the user to change various settings and features of the instrument
including, but not limited to Alarm Levels, Autozero function, latching alarms, vibrating
alarm (where fitted), data logging settings and Safelink messages.
