Impact / Impact Pro / Impact Pro IR Operating Instructions
18

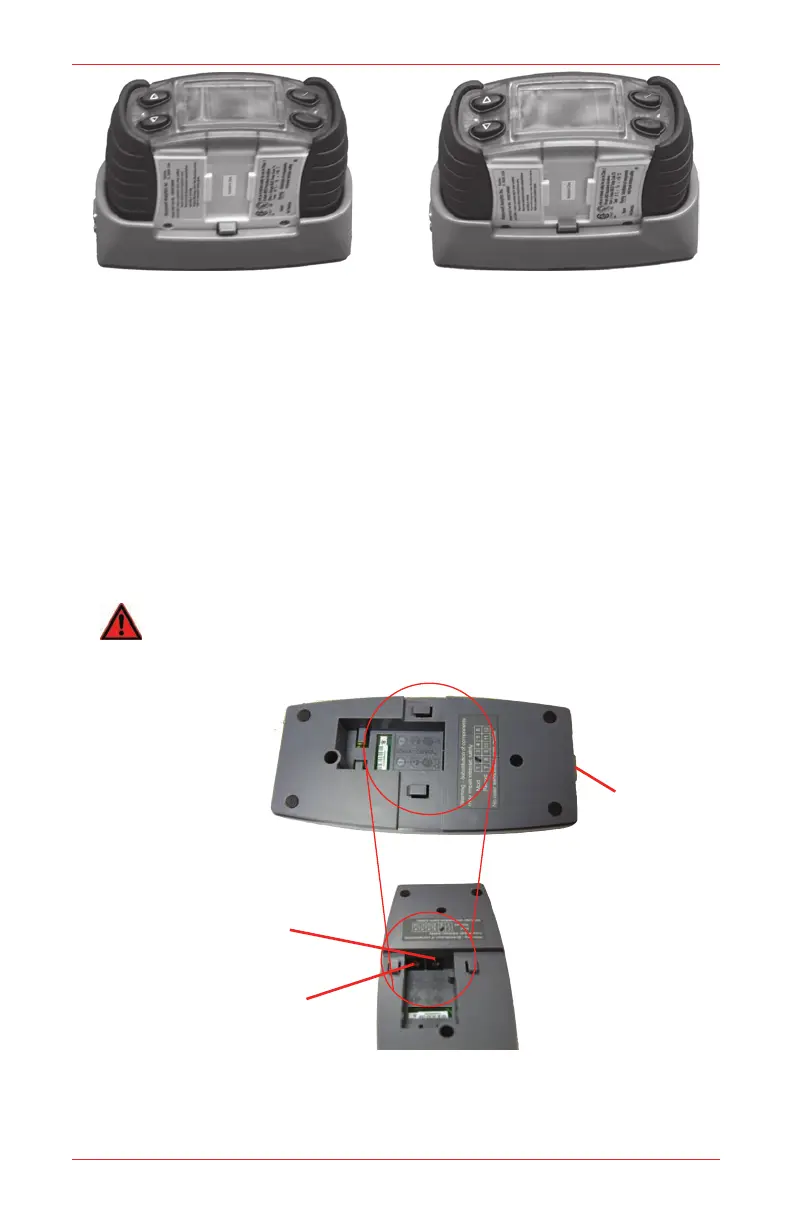

To remove the Impact press down on the rear locking catch. d)
All 4 alarm lights will flash indicating the Impact has started
charging.
While charging the instrument, the instrument will flash 2 red LEDs 3.
approximately every 4 seconds. When charging is complete it will light the
green LEDs constantly. A pair of fully discharged battery packs will require
7 hours to recharge fully.
Charging algorithm is based on a timer function so if the charging cycle is
interrupted it will be necessary to leave Impact on Base Station for 7 hours
to produce steady green LED light.
WARNING
Do not charge the battery pack in a hazardous area.
PSU Connection
Base Station Link Connection
Data Transfer
Connection
Power and Base Station Link Connection Locations
