Procedural Considerations
Page 28 34-ST-25-20 MC Toolkit User Manual Release 3
9/06

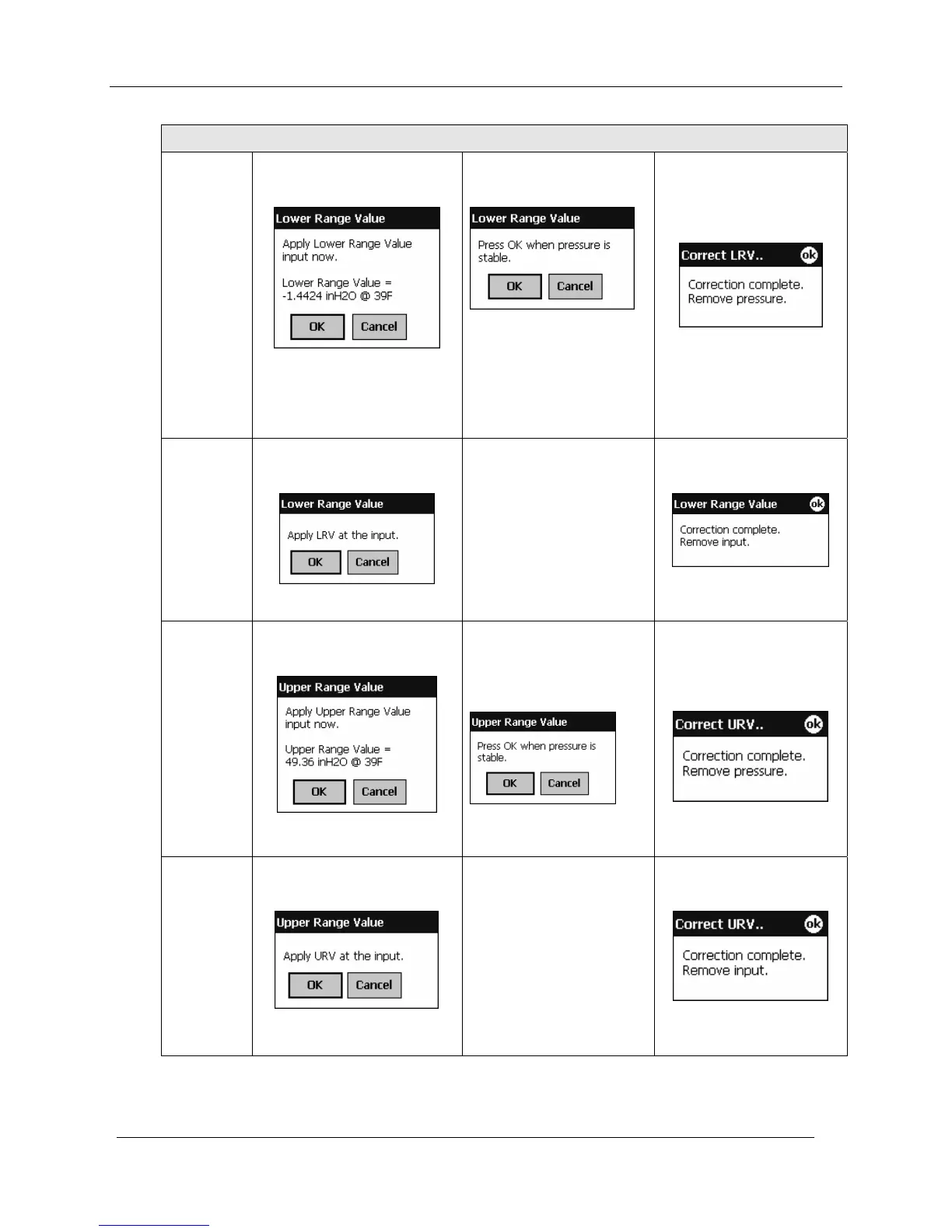

Input Calibration (De Transmitters) - Correct Input (Zero), LRV, URV; Reset Corrects
Correct
Input at
LRV
(ST 3000)
Select the
Correct LRV
button. This message appears.
Adjust the PV input pressure
to the exact value of the LRV
entered in the DE
CONFIGURE display.
Select the
OK button; this
message appears.
Observe the input pressure
at the applied value; when
it is stable, select the
OK
button.
When the transmitter has
completed the LRV
correction, this message
appears.
Select
OK to
acknowledge.
Correct
Input at
LRV
(STT 3000)
Select the Correct LRV
button. This message appears.
Adjust the input
temperature to the exact
value of the LRV entered in
the DE CONFIGURE
display.
Select the
OK button; this
message appears.
Select the
OK button to
acknowledge
Correct
Input at
URV
(ST 3000)
Select the
Correct URV
button. This message appears.
Adjust the PV input
pressure to the exact value
of the URV entered in the
DE CONFIGURE display.
Select the
OK button.
When the transmitter has
completed the URV
correction, this message
appears.
Select
OK to
acknowledge.
Correct
Input at
URV
(STT 3000)
Select the Correct URV
button. This message appears.
Adjust the input
temperature to the exact
value of the URV entered
in the DE CONFIGURE
display.
Select the
OK button; this
message appears.
Select the
OK button to
acknowledge
To Next Page
