www
.honeywell.com
Installing the MPA2 Panels
Installation
3.3 Wiring Door Strikes
F
o
llow these steps to wire the door s
trikes to the Controller Board:
1.
Use the following figure to locate
the door strik
e terminals on the
board and to wire the door strik
e
/
mag lock according to the power
supply used. Be sure to use the S4
suppres
sor kits as shown below
:

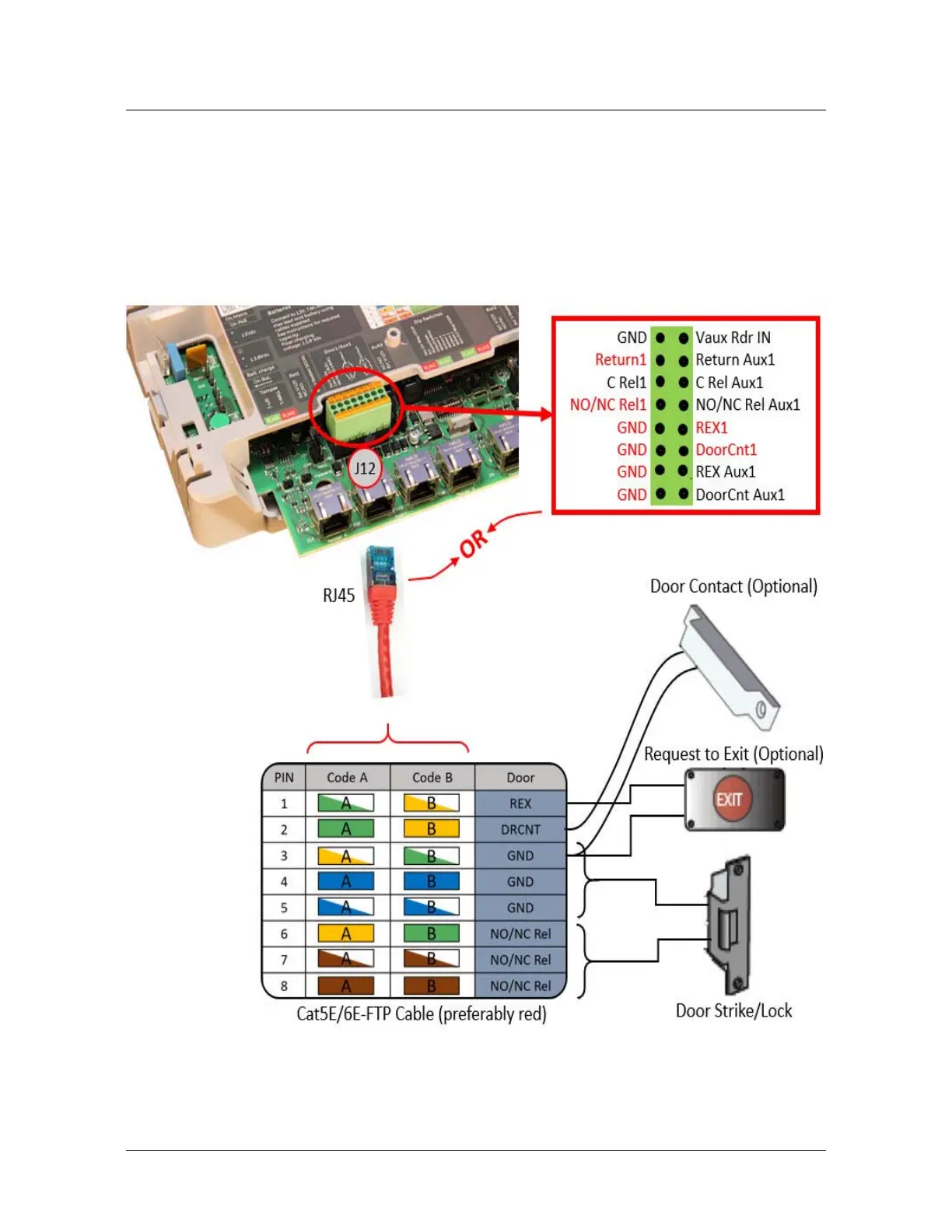

Figur
e 6: W
iring an Access Contr
ol Door
(Lock, Request to Exit, and Door Contact)
27
29
Table of Contents
Contents
3
Access Control Overview
4
Panel Components and Descriptions
5
Ferrites
7
Supervised and Non-Supervised Input Wiring
9
Input/Output Options
11
Real-Time Clock Protection
11
Power Supply
12
Battery
13
Installation
14
Installing the Standard Enclosure Panel
15
Wiring the Readers
23
Wiegand
23
Osdp
23
Wiring of Single Reader to the Controller Board (Door 1)
24
Wiring of Multiple Readers to the Controller Board (DOOR 1)
25
Factory Default Configuration Settings
26
Factory Default Configuration Additional Inputs/Outputs
27
Wiring Door Strikes
28
Wiring an Access Control Door
28
S4 Suppressor Kit
29
Wiring the RS485 Bus Connections
30
Controller Board DIP Switch and Jumper Settings
34
Setting DIP Switches and Jumpers
34
Downstream Devices (I/O)
40
Downstream I/O Devices DIP Switch and Jumper Settings
41
Default Downstream I/O Configuration with Wiring
42
USB Communications
43
RS-485 Communications
45
RS-485 Configuration Via Unit's Primary
46
System Configuration
48
Ethernet Connection to Unit's Primary Managing RS485 Loop
48
USB Connection
49
RS-485 Loop Connection Via the Unit
50
RS-485 Connections with Secondary Panels at both Ends of the Cable
51
Ethernet Virtual Loop with All Panels on Common IP Subnet
52
Ethernet Virtual Loop - Network Dedicated to Access Control
53
Ethernet Connection with Ethernet Virtual Loop - Multiple Locations
54
Hardware Specifications
56
Poe Power Limitations
57
Panel Label and Symbols
59
Firmware Specification
61
Panel Settings
61
Firmware Upgrades
61
Basic Standalone Operation
62
Card Read / Door Lock Operation
62
Door Egress (REX) / Door Lock / Door Status Operation
62
Maintenance
63
Troubleshooting
64
Technical Support
65
Normal Support Hours
65
