52 www.honeywell.com
Installing the MPA2 Panels
System Configuration
4.7 Ethernet Connection with Ethernet Virtual Loop - Multiple
Locations

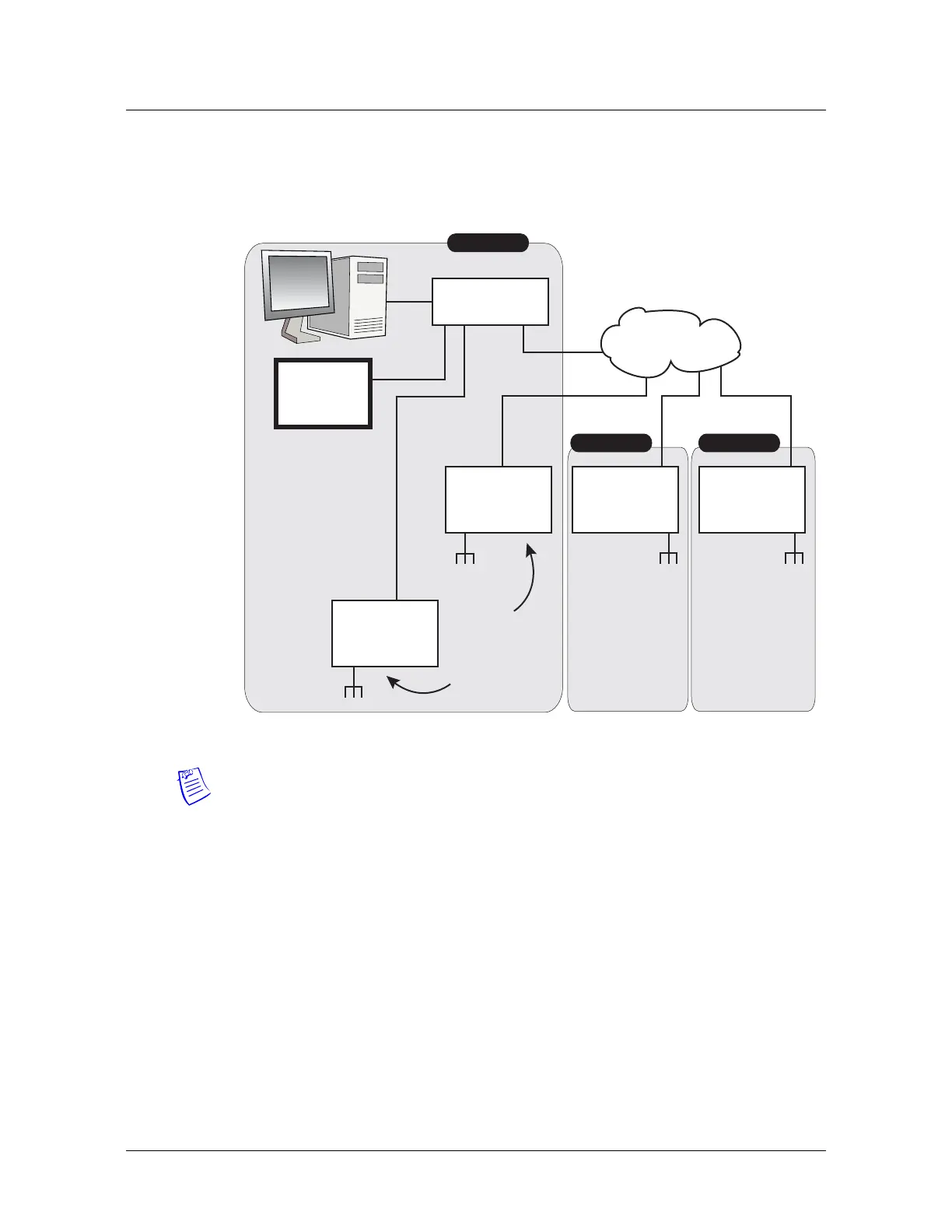

Figure 18: Ethernet Connection with Ethernet Virtual Loop - Multiple Locations
Notes:
1. Network must provide DHCP server (or use dedicated Network
config
uration with a router shown in next section).
2. Recommend that Network provide firewall protection from
unauthorized access.
3. If the locations are in different Geographic ti
me zones, it is
recommended that each time zone be ser
v
ed by its own
"Ethernet Vi
rtual Loop". The reason fo
r this is, all controllers on
the same Ethernet Vir
tual loop must be set to
the same
Geogra
phic time zone.
4. The Network must allow the Primary in Lo
cation 1 to connect to
T
CP port #9876 in Locations 2 and 3.
5. Controllers that are on a different subnetwork than the Primary
(which is likely the case for loops across multiple locations) will
NOT be automatically discovered by the Primary controller
. In
EG
EG EG
MPA2
Panel
(Primary)
EG
MPA2Panel
(Secondary)
MPA2
Panel
(Secondary)
NetAXS-123
Panel
(Secondary)
MPA2
Panel
(Secondary)
CAT 7 S/FTP
Ethernet Connection with EVL Loop Multiple Locations
Location 1
Location 2 Location 3
The network must allow the Primary
in Location 1 to connect to TCP port
XXXX in Locations 2 & 3
ETHERNET
SWITCH
NETWORK
Terminal
DIP Switch
SW3: ON
SW9: ON
SW1&10: ON : OSDP
SW1&10: OFF: Wiegand
SW2: 4-8: OFF
DIP Switch
SW3: OFF
SW9: ON
SW1&10: ON: OSDP
SW1&10: OFF: Wiegand
SW2: 4-8: OFF
DIP Switch
S1-S5: Panel Address
S6: OFF
S7: OFF
S8-S9: ON: 485
Termination ON
DIP Switch
SW3: OFF
SW9: ON
SW1&10: ON: OSDP
SW1&10: OFF: Wiegand
SW2: 4-8: OFF
To Next Page
