Installing the MPA2 Panels
Installation
3.5 Setting DIP
Switches and Jumpers
3.5.1 Controller Board DI
P Switch and Jumper Settings

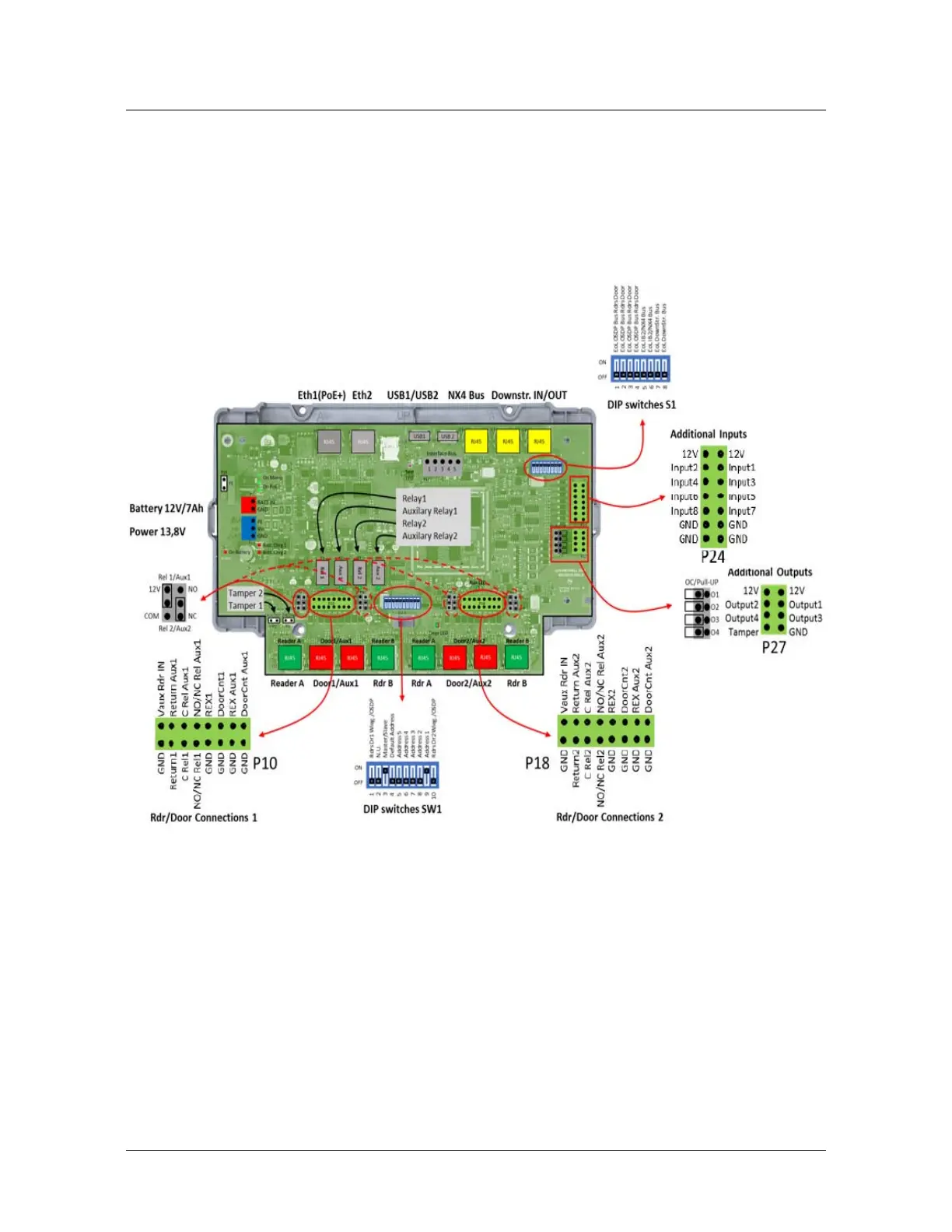

Figur
e 8: Contro
ller Bo
ar
d DIP Switch and Jumper Location
DIP
Switch Settings
Use the following (Figure 9) DIP switch
configurations to set up your
MPA2
panel.
